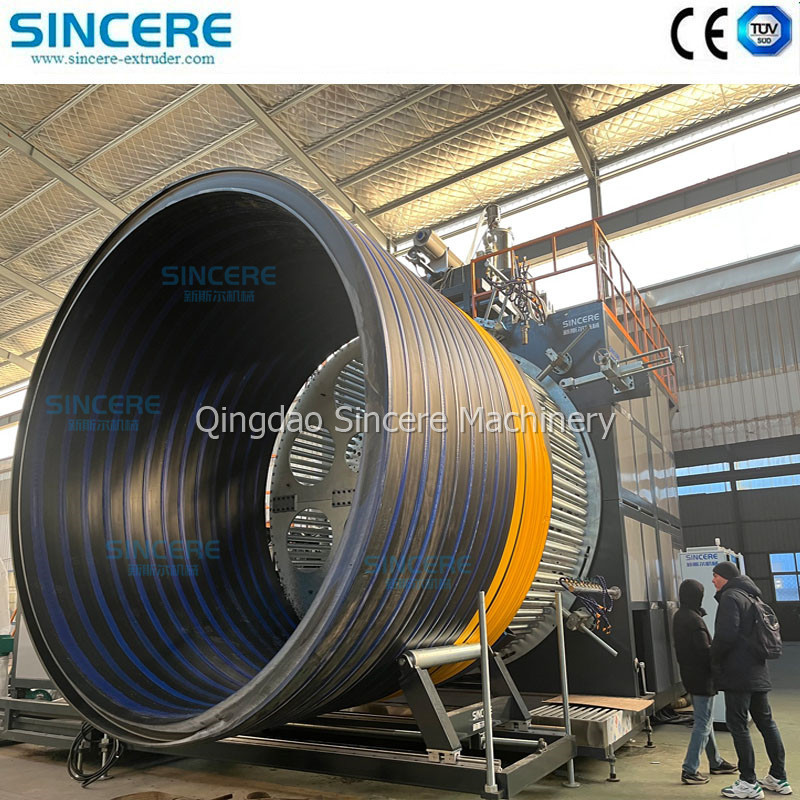

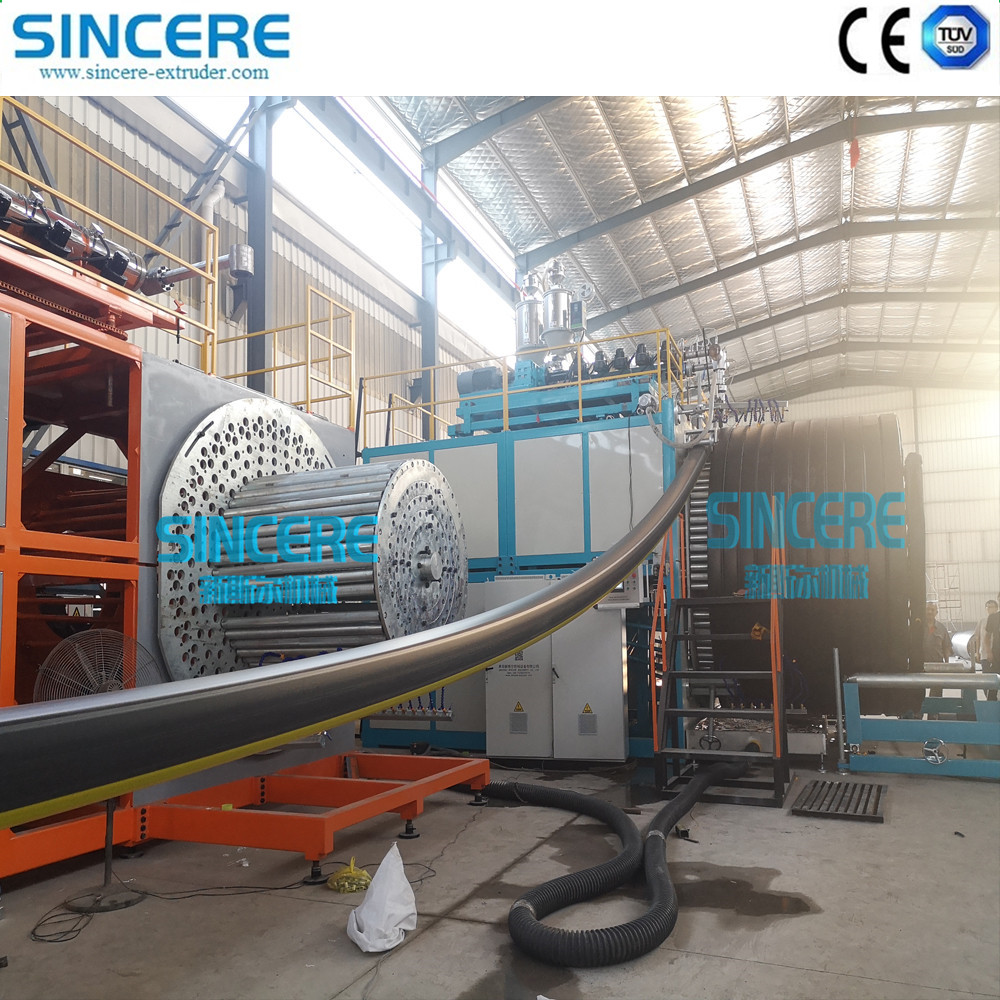

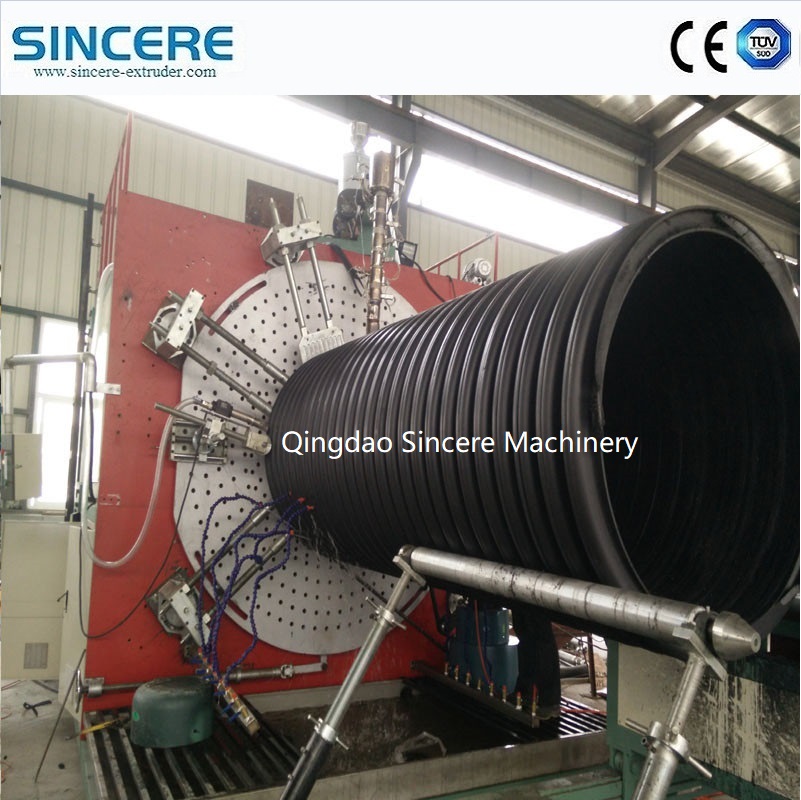

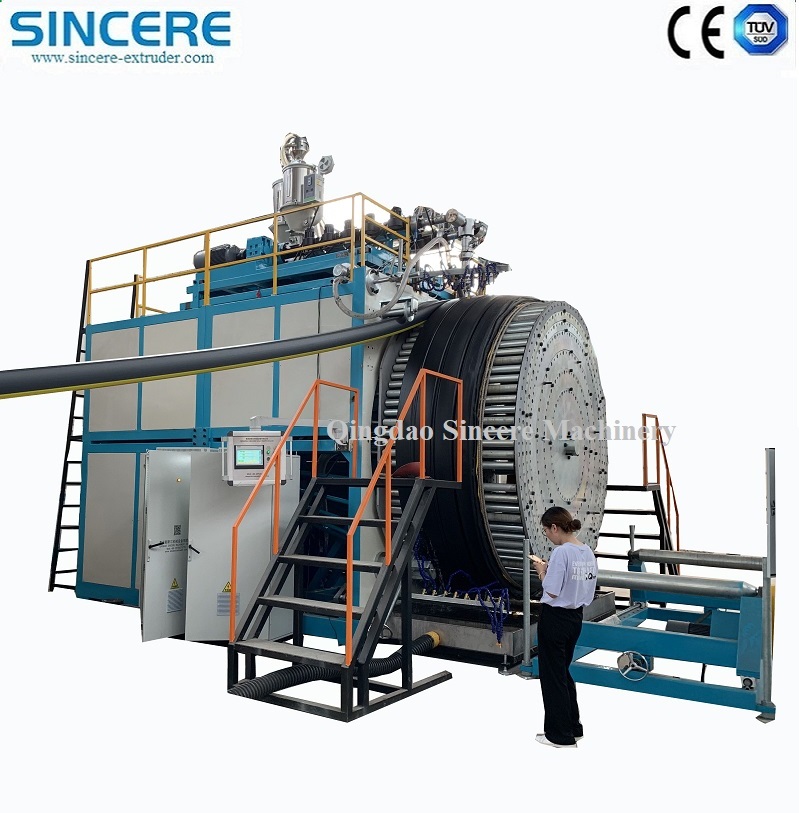

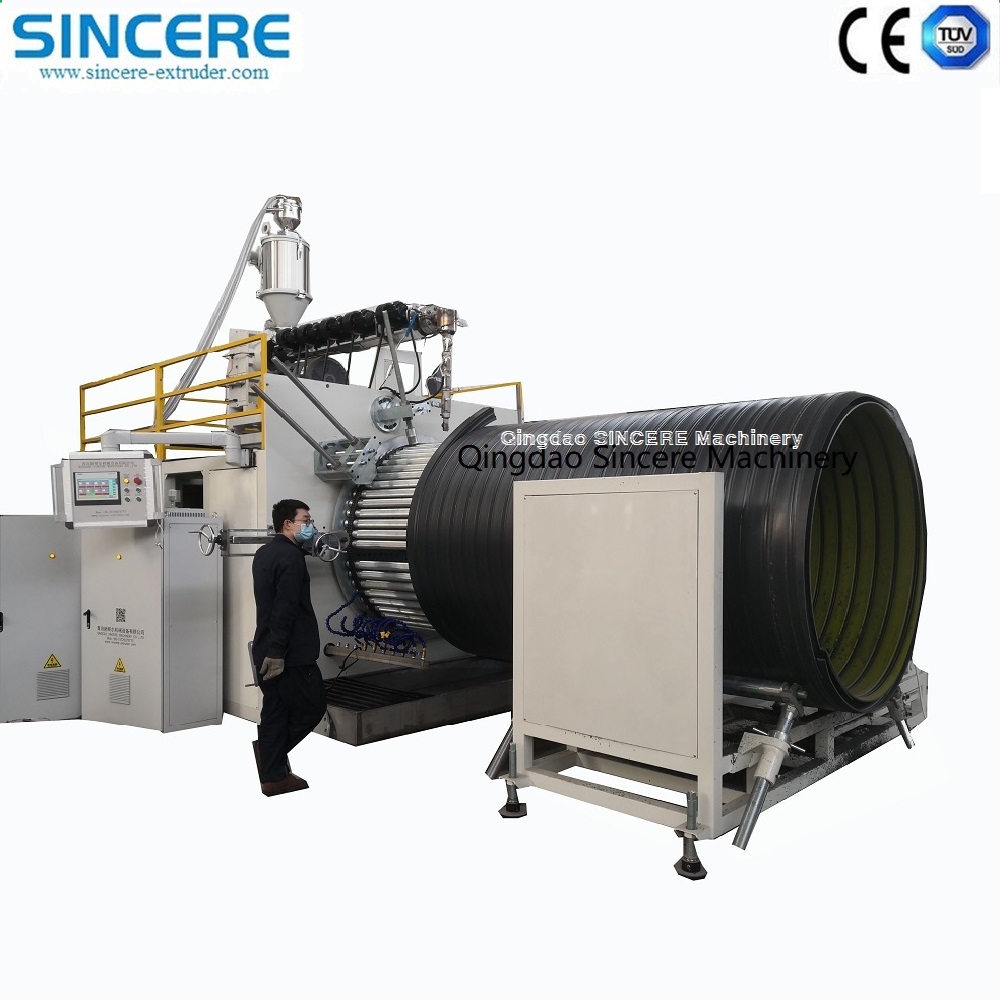

HDPE/PP spiral wound pipe extrusion line. https://youtu.be/d4KY1jHdqoM?si=B861lUiMnE5fE1Jq
Hollow-wall spiral winding pipes extruder and extrusion machine.
Structural-wall spiral winding pipe extrusion production machine.
Wastewater treatment sewerage tanks pipe extrusion production lines
Polyethylene septic tanks production equipment.
HDPE water tanks production machines.
Stormwater harvesting tanks production line.
HDPE spiral winding corrugated pipe extrusion production lines.
Ribbed reinforced pe/pp spiral winding sewage pipe extruding machinery.
Solid wall spiral winding wastewater drainage pipe extrusion production lines.
Steel belt reinforced pe/pp composite pipe extrusion production lines.
https://youtu.be/Gi3bvuP7FJI
https://youtu.be/-6nnv5z2IRs?si=9Jkb5buXnvhO4fTw
https://youtu.be/d4KY1jHdqoM?si=B861lUiMnE5fE1Jq
Hollow wall Spiral winding pipe diameters: dn200mm,300mm,500mm,600mm,800mm,900mm,1000mm,1200mm,1400mm,1500mm,1600mm,1800mm,2000mm,2200mm,2400mm,2600mm,2800mm,3000mm,3200mm,3400mm,3600mm,3800mm,4000mm.
Large diameter Spiral winding hdpe pipe extrusion production lines production capacity: from 300kg/h to 1500kg/h
| Model |
SMSG-800 |
SMSG-1200 |
SMSG-1600 |
SMSG-2400 |
SMSG-3000 |
SMSG-4000 |
| Extruder |
SJ-65 |
SJ-55 |
SJ-90 |
SJ-65 |
SJ-100 |
SJ-65 |
SJ-120 |
SJ-90 |
SJ-120 |
SJ-90 |
SJ-150 |
| Output capacity |
150kg/h |
60 kg/h |
300 kg/h |
120 kg/h |
400 kg/h |
150 kg/h |
400 kg/h |
200 kg/h |
600 kg/h |
300 kg/h |
800
kg/h |
| Pipe diameter |
200-800 mm |
400-1200 mm |
800-1600 mm |
1200-2400 mm |
2000-3000 mm |
2400-4000mm |
| Production speed |
2-16 m/h |
2-12 m/h |
1-6 m/h |
0.5-5 m/h |
0.3-3 m/h |
0.1-2m/h |
| Installed Power |
180 kw |
250 kw |
300 kw |
400 kw |
500 kw |
600kw |
Spiral winding corrugated hdpe pipe extruding machinery equipment consists:
Single-screw or double-screws extruders, 1/2/3/4/5sets
HDPE pforile extrusion mould.
HDPE glue welding mould.
Vacuumcalibration water cooling tanks.
Haul-off machine,1 set
Cutting machine, 1 set

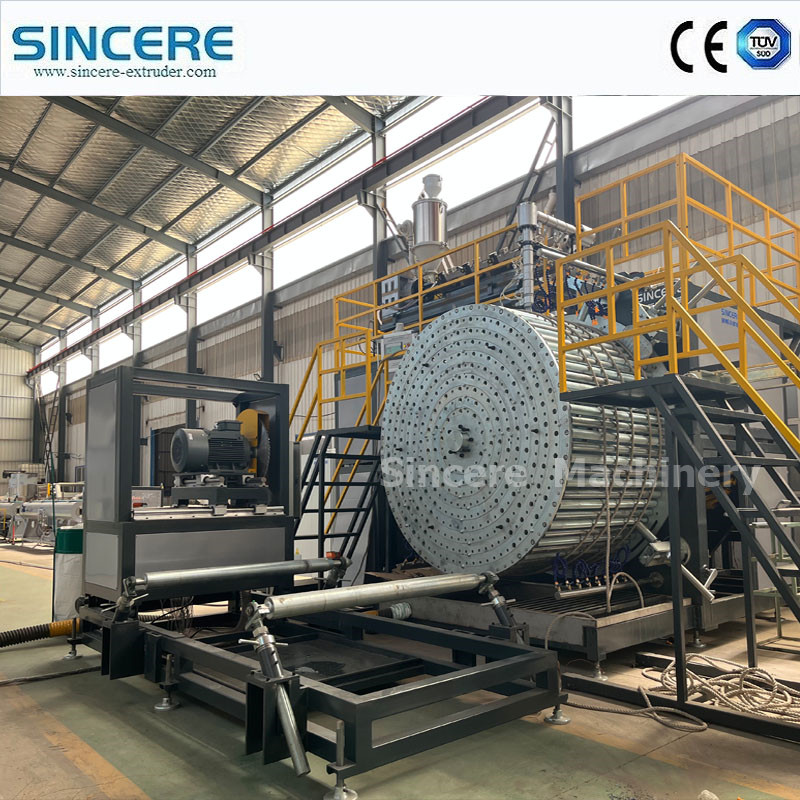

Spiral winding machine, 1 set
Stackers, 1 set
Electrical control systems, 2 sets
Optional devices:
PE Spiral pipe threading machine.
PE Spiral pipe slotting machine.
PE Spiral pipe punching machine.
PE spiral pipe bloring machine.
Spiral pipe fittings socket and spigot injection machine.
Plastic Pipe shredder, crusher.
plastic pp/pe/pet/pmma/abs recycled pelletizing granulation line.
large volume mixer.
water chiller.
plastic welding rod extrusion line.
Hand-held welding gun.
Spiral corrugated pipe extrusion line.
Spiral corrugated pipe extruder.
Spiral corrugated pipe extrusion production machine.
HDPE solid wall pipe extrusion line.
Polyethylene water tanks extrusion line.
Polyethylene water tanks production machine.
Storage tanks production equipment.
Chemical storage tanks welding machine.
Seamless welding solid wall spiral winding pipe machinery.
Water storage tanks extrusion production line
PP-H storage tanks extrusion production line
Trenchless sinking wells jacking pulling pipe extrusion machine
The solid wall welded HDPE pipe, diameters from 200mm to 6500mm, wall thickness adjustable.
Solid-wall spiral winding pipes are widely using for Electric melting fusion pipe fittings, electrical cable protective/conduit pipes, thermal pipe casing pipe shells, threaded trenchless jacking-pulling pipes, polyethylene water storage tanks, chemical storage tanks,Mining Ventilation Pipe and so on.
Consists of the solid wall spiral winding pipe extrusion line:
| 1 |
Single-screw extruder for HDPE belt extrusion |
1 sets or 2 sets |
| 2 |
Extrusion T-die mould |
1 set |
| 3 |
Heating devices |
1set |
| 4 |
Air cooling devices |
1set |
| 5 |
Spiral wound machine |
1set |
| 6 |
Pressing rollers |
1set |
| 7 |
Cutting machine |
1set |
| 8 |
Stackers |
1set |
| 9 |
Electrial cabinet with Siemens PLC HMI touching screen |
1set |
