Application area
MPP pipe is also called MPP power cable protection pipe, using modified polypropylene as the main raw material.It can be widely used in telecommunication, electric power, heat and other pipeline engineering.The common specification of the pipe is 110mm ~ 250mm in diameter, which is divided into ordinary type and reinforced type.The common type is suitable for excavation and laying construction and trenchless crossing construction with buried depth less than 4M.The enhanced type is suitable for the trenchless crossing construction project whose buried depth is greater than 4M.
Production line
MPP pipe production line equipment mainly by: Single screw extruder, Die head, Vacuum calibration tank, Spray cooling tank, Haul-off, Chipless cutter, Stacker, Hopper dryer, Vacuum feeder, gravimetric control system.
Value advantage
1. The length-to-diameter ratio of the screw of the efficient single screw extruder is 33:1. The barrel adopts a unique blanching method, which effectively improves the extrusion output.

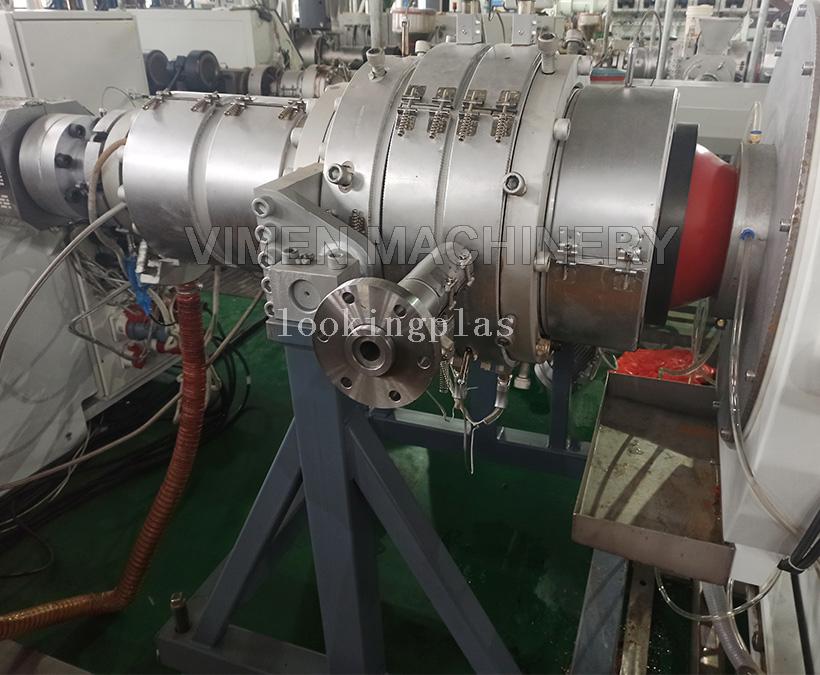

2. The mold adopts spiral structure, equipped with high-speed sizing sleeve, and the molding effect is good.

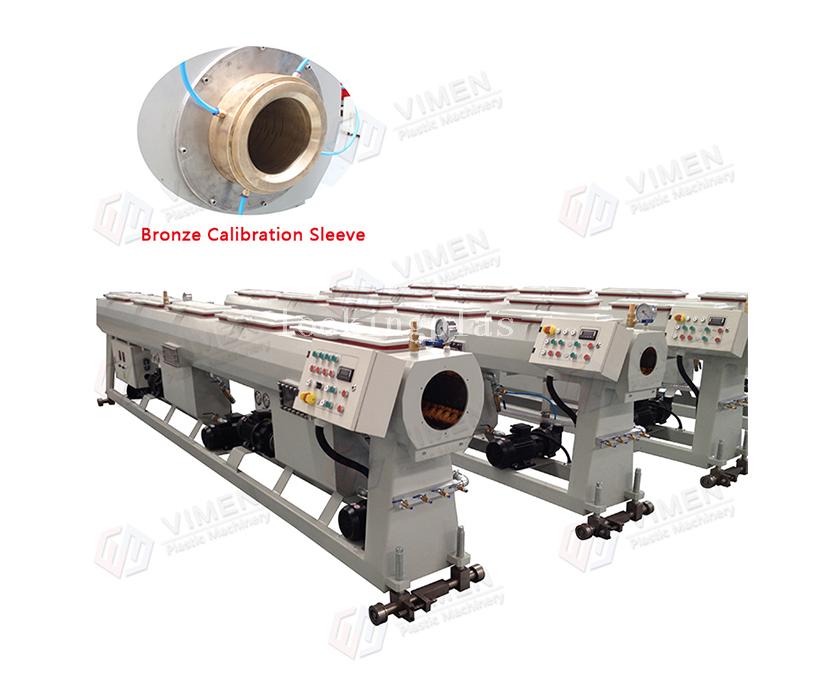

3. True empty box, spray box adopts advanced pipe wiring design and adjustable nozzle, cooling effect is better.Automatic control of water temperature and water level in the box, double volume filtration, gas-water separation device, centralized inlet and drainage design.

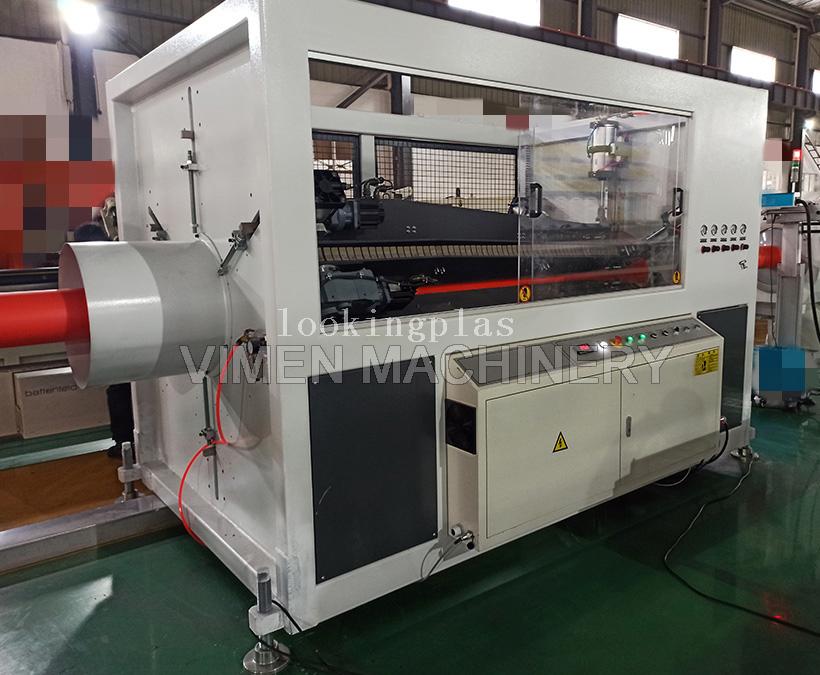

4. According to the different pipe diameter of the products, the tractor is equipped with three claws and four claws traction mode. The high quality rubber block is used for stable traction.

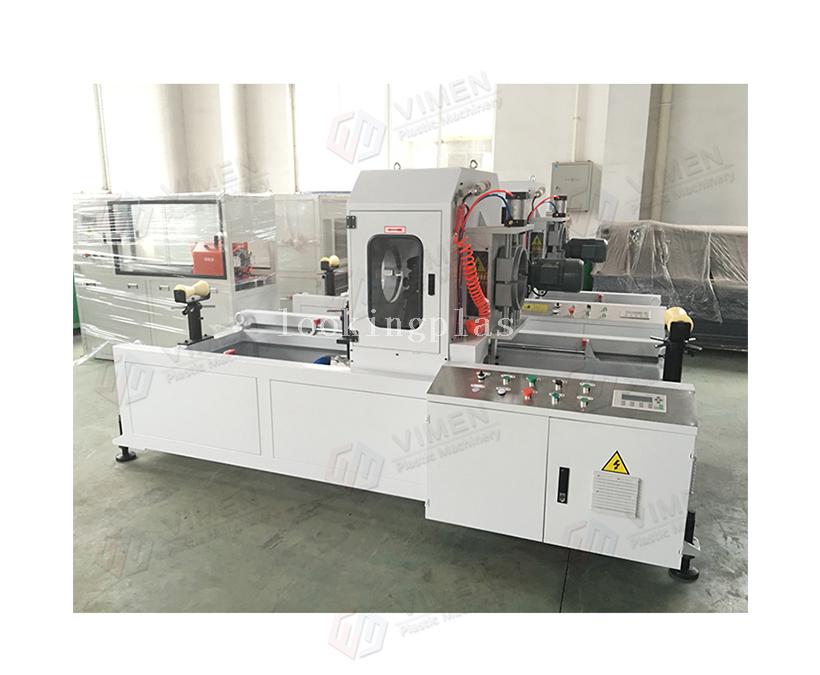

5. The cutting machine adopts the chip - free cutting machine.
Technical parameter
33:1 Series extrusion production line:
Model | Pipe Diameter (mm) | Extruder | Motor Power (kw) | Max Capacity (kg/h) |
VM-250 I | Φ 110-250 | SJ 75/33 | 110 | 280-330 |
38:1 Series extrusion production line:
Model | Pipe Diameter (mm) | Extruder | Motor Power (kw) | Max Capacity (kg/h) |
VM-250 II | Φ 110-315 | SJ 75/38 | 160 | 430-500 |
