Application area

PERT pipes are widely used in building water supply and drainage, urban and rural water supply and drainage, urban gas, electric power and optical cable sheath, industrial fluid transportation, agricultural irrigation and other construction, municipal, industrial and agricultural fields.

Production line

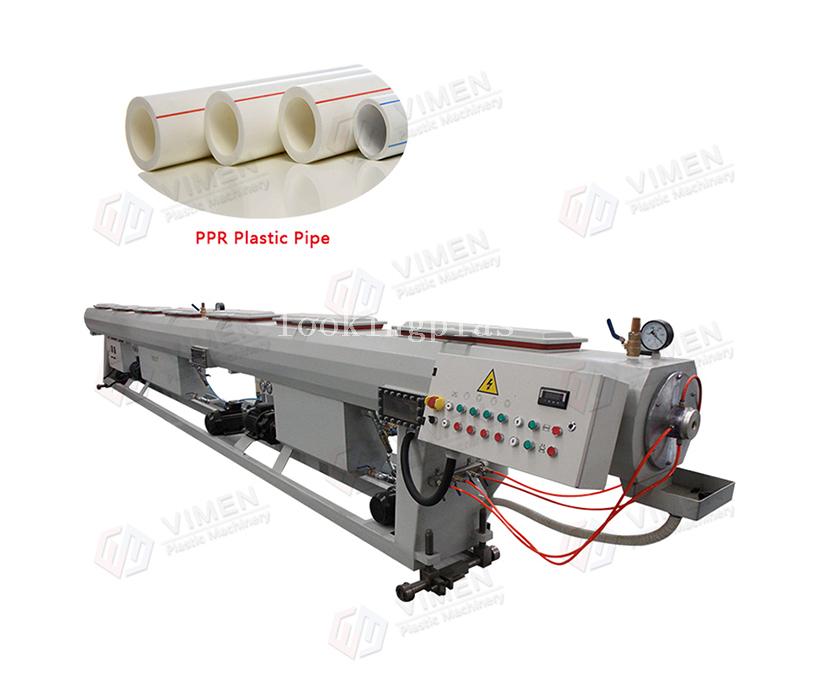

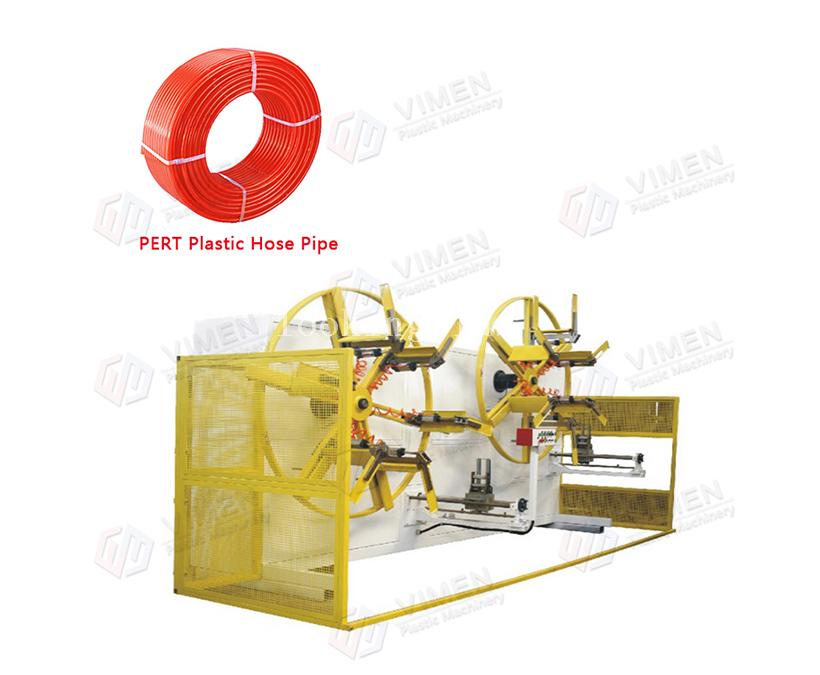

PERT plastic pipe extruder line equipment mainly by: Single screw extruder, Die head, Vacuum calibration tank, Spray cooling tank, Haul-off, Chipless cutter, Winder machine, Hopper dryer, Vacuum feeder, gravimetric control system.

Value advantage

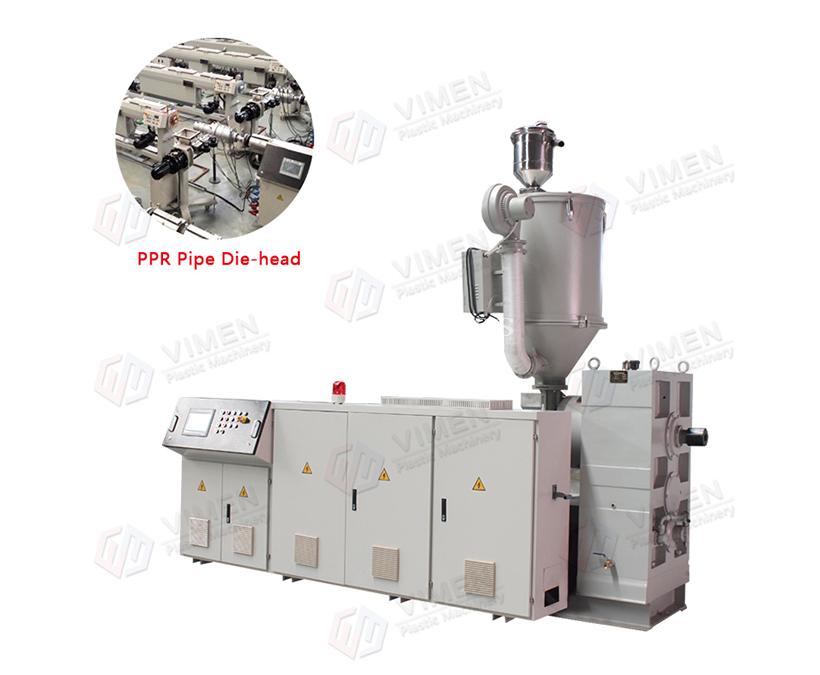

1. Single screw and high efficiency extruder is divided into two: screw length to diameter ratio of the journeys of efficient and length to diameter ratio of 38:1 super-efficient, barrel adopts the unique way of blanking, effectively improve the extrusion production, advanced protective screen type cuts screw structure can improve the plasticizing effect of material and the quality of the products, with advanced meters weight measuring system, compared with the previous old models, reduce the energy consumption by as much as 30%.

2. The mold adopts spiral structure, equipped with high-speed sizing sleeve, the product forming effect is good.

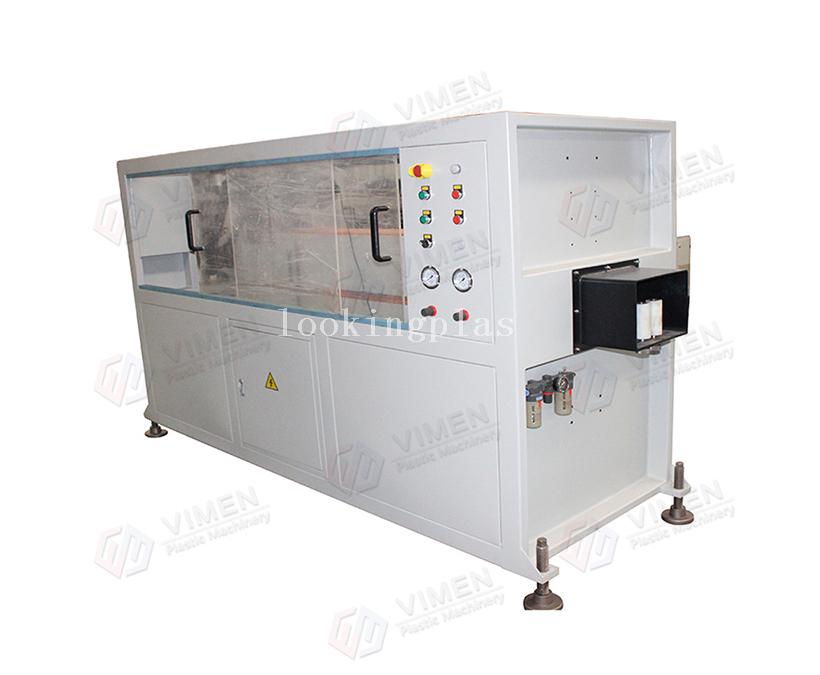

3. True empty box, spray box adopts advanced pipe wiring design and adjustable nozzle, cooling effect is better.Automatic control of water temperature and water level in the box, double volume filtration, gas-water separation device, centralized inlet and drainage design.

4. The tractor adopts two claw belt and three claw track traction mode, traction is stable and fast.

5. The cutter adopts chipless cutting mode, non-chip, environmental protection, and the incision is smooth and smooth.

Technical parameter

33:1 Series extrusion production line:

38:1 Series extrusion production line:
