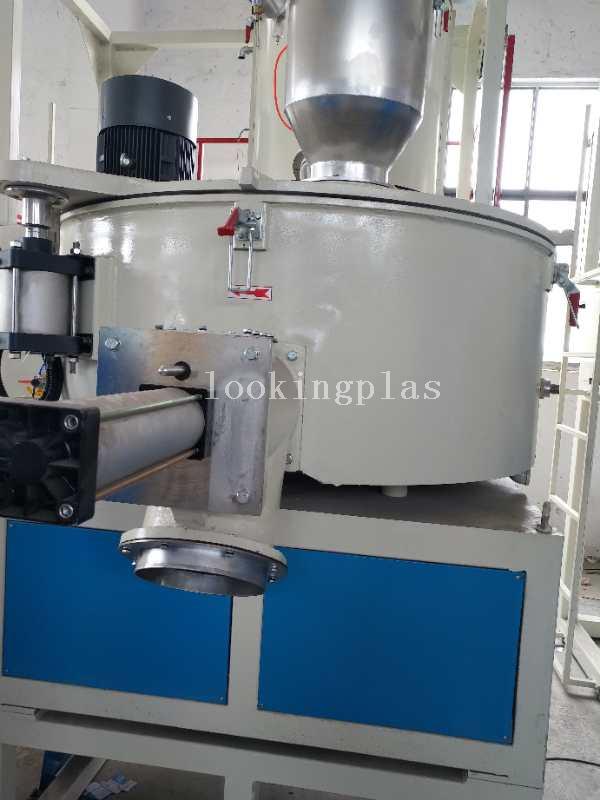

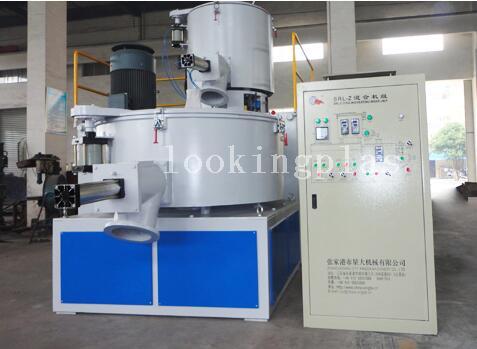

SRL 500-1000L hotting and cooling mixer for plastic 598 Favorites

Product Categories: Hotting and Cooling Mixer
Packaging Details:plastic film + wooden pallet	Trademark:GA
Certification:
Payment Terms： T/T,
FOB: USD $16000	HS Code: 8473900000
Loading Port：Shanghai port

Zhangjiagang Guan Ang Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：

Get Quotation

Contact Supplier

To：	Cai
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

		vertical hotting and cooling mixer
		100-200	200-500	300-600	500-1000	500-1600	800-2000
one time feeding/KG		35	70	100-110	150-180	150-180	250-280
capacity KG/H		150-200	300-400	500-550	600-750	600-750	1000-1250
mixing time/M		8—12	8—12	8—12	8—12	8—12	8—12
hotting pot	motor power/KW	22	45	55	75	75	110
	pot cpacity/L	100	200	300	500	500	800
	available capaty/L	35	70	225	375	375	600
	inner wall thickness/mm	5	5	5	6	6	8
	outer wall thickness/mm	5	5	5	5	5	6
	bottum thickness/mm	5	5	5	5	5	8
	paddle	three	three	three	three	three	three
	paddle miminum rpm	650	475	465	430	430	370
	paddle maximum rpm	1300	950	930	860	860	740
cooling pot	reducer power/KW	5.5	7.5	7.5	15	18.5	22
	put capacity/L	200	500	600	1000	1600	2000
	available capacity/L	130	330	450	750	1200	1500
	inner wall thickness/mm	5	5	5	5	8	8
	outer wall thickness/mm	5	5	5	5	8	8
	bottum thickness/mm	5	5	5	5	8	8
	paddle	single paddle				spiral cutter
	paddle maximum rpm	200	130	100	80	60	60
