Home > Product Categories > Single ring drum blow molding machine

Single ring drum blow molding machine 1035 Favorites

Product Categories: Extrusion Blow Molding
Packaging Details:Sea package Trademark:SJR
Certification: CE,  ISO9001:2008,  Other,
Payment Terms: L/C,  T/T,  Western Union,  Paypal,
FOB: USD  $/Set HS Code: 8477301000
Loading Port:QINGDAO
QingDao SJR Machinery Co., Ltd.
Company type: Manufacturer Credit:
Main products:Plastic machine,plastic products,spare parts and other machine


80L 90L 100L 120L 150L 160L 180L PE water chemical storage barrel blow molding machine,blue open top drum extrusion blow moulding machine,

It is accumulating machine for 80L 90L 100L 120L 150L 160L 180L PE water chemical storage barrel blue open top drum extrusion blow moulding machine, this kind of blow molding machine is for jerrycan, plastic container, oil drum production

Single ring drum blow molding machine system as below:

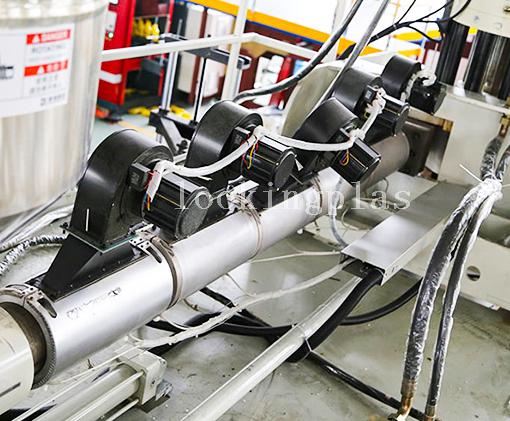

Extrusion system of blow molding machine:

single ring drum blow molding machine2223.jpg

Extrusion motor and gear box offer the power for screw. Meanwhile screw and barrel with strong material make sure plasticizing plastic material well, ceramic material heater with evenly and quickly heating function!

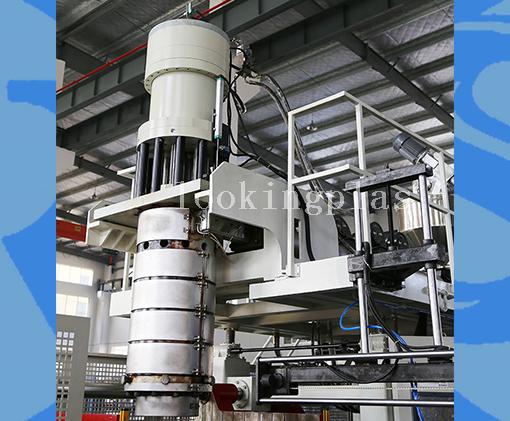

Head system of blow molding machine:

single ring drum blow molding machine1333.jpg

Accumulating type, material ejection with first in first out method. Head structure is designed by our professional engineer, flow stable and quick. Use parison controller for controlling the thickness of jerrycans,to make sure thickness uniform. Besides, we also could adjust thickness range by controller’s operating version!

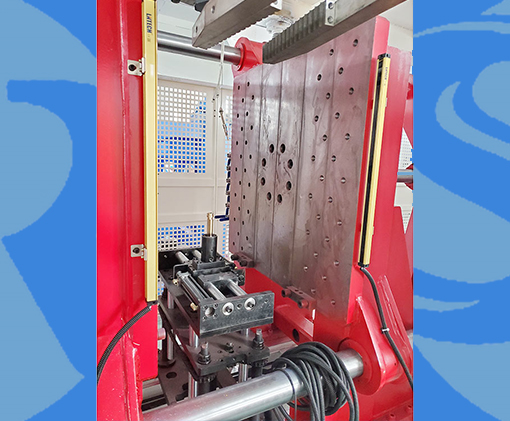

Clamping system of blow molding machine:

single ring drum blow molding machine3335.jpg

It has clamping plate and cylinder, linear guide, slider, transducer... Mold is fixed on the plate. All components make sure mechanical movement precision, stable and quick!

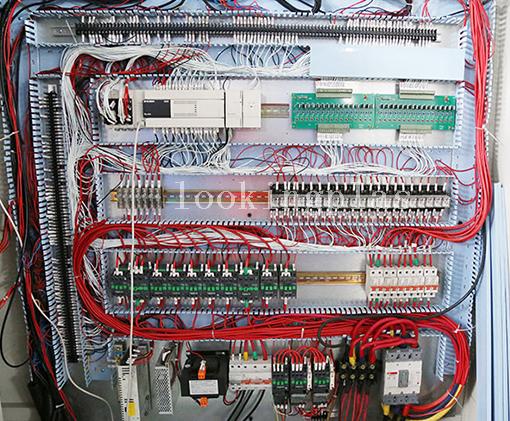

Electrical control of blow molding machine:

single ring drum blow molding machine42.jpg

It has operation touch screen, PLC, contact switch, air switch, delay, voltage stabilized power, inverter,We could input, modify and monitor the parameter of heating, pressure, time, alarm to control whole machine’s action parameter by touch screen. It has two operation languages, Chinese and English!

Hydraulic system of blow molding machine:

It has hydraulic servo motor and pump, valve, pump, oil tank, oil cooler, tube... Offer power for mechanical action, meanwhile proportional valve is controlled by oil flow pressure for transfer digital signal into

mechanical action, to control the action of blow pin, clamping structure, head and extrusion!In this machine, hydraulic motor uses servo type. Servo system could save about 30% power consumption than normal AC motor, and servo motor is with less noise!


Max product volume (L)

80-220

Machine weight (T)

15

Machine size(m)

6.2X2.8X4.8

Screw diameter (mm)

100

Length/Diameter ratio

24/1

Extrusion motor power (kw)

45

capacity (kg/h)

175

Head type

accumulating

Clamping force (KN)

500

Platen size (mm)

1020*1060

Platen opening stroke (mm)

450-1200

Max mould size (mm)

780*1250

Mould thickness (mm)

460-650

Total power (kw)

146

Average energy consumption (kw)

50


jerry can drum blow molding machine5.jpg
