Home > Product Categories > IBC tank blow molding machine

IBC tank blow molding machine 2132 Favorites

Product Categories: Extrusion Blow Molding
Packaging Details:sea package Trademark:SJR
Certification: CE,  ISO9001:2008,  Other,
Payment Terms: L/C,  T/T,  Western Union,  Paypal,
FOB: USD  $/Set HS Code: 8477301000
Loading Port:QINGDAO
QingDao SJR Machinery Co., Ltd.
Company type: Manufacturer Credit:
Main products:Plastic machine,plastic products,spare parts and other machine

HDPE plastic container extrusion blow molding machine,1000L IBC Water Tank Barrel Blow Molding Making Machine, IBC Tank Plastic Blow Blowing Molding Machine,Automatic ibc tank blow moulding machine,IBC Water Tanks Blow Molding Machine,IBC plastic tank extrusion blow molding machine,1000L IBC plastic water tank blow molding making machine, Plastic IBC Tank Water Tank Blow Molding Machine Price

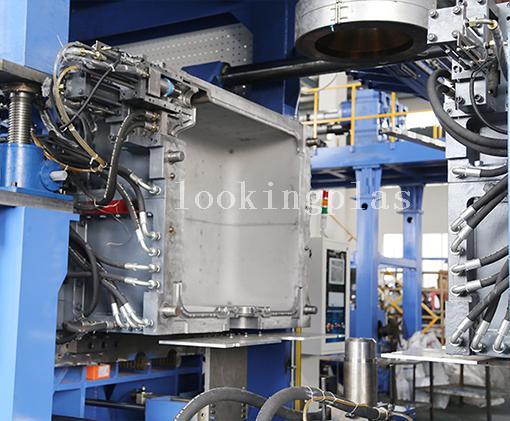

This model of IBC tank blow molding machine is fixed open-closing and accumulator die head series which adopts oblique arm double drawbar synchronous clamping mechanism, large space for mold, clamping stable, durable mold platen, mold clamping by oil cylinder pressure directly. This machine is special for IBC drums, max 1000L, and suitable for making chemical packing drums, large size car oil tank and so on. Technical characteristics: Lock the mold by the center of the oblique arm, stable clamping force. The mold is not easy to deform. Adopt original blowing technology principle, gas volume, air pressure control stability, etc.

IBC tank blow molding machine system:


Advantage of IBC tank blow molding machine:

1.The temperature controlled by Seimens PLC,the extruder stops automatically if the temperature is down because of heater or thermocouples damaged.

2.There is die head pressure testing in the diehead.The PLC shots down the extruders if the pressure inside the die head is too high.

3.The extruders have covers for keeping the temperature, so can make the heating time short

4.The temperature are controlled by Siemens brand.

5.The extrusion motor is Siemens brand.

6.The inverter is Seimens brand

7.More protection in control system


Specifications

Unit

Fixed opening and closing die

Machiner model


1000L (IBC)

Material


HDPE

Max container capacity

L

1200

Machine dimension ( L×W×H )

M

10.5×5.1×8.5

Machine Weight

T

85

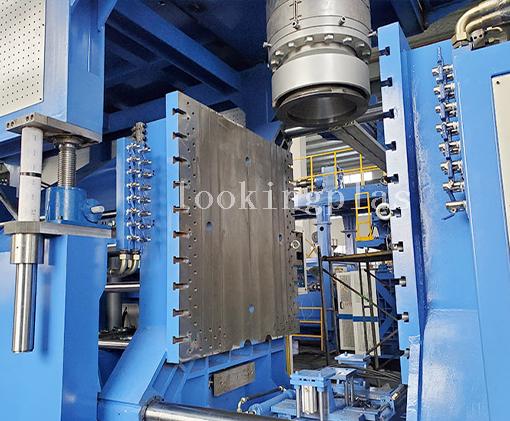

Clamping unit

Mold platen size ( W×H )

MM

1800×1600

Max mold size ( W×H )

MM

1600×1600

Power

Servo oil pump motor power

KW

37

Average energy consumption

KW

120-130

Blow pressure

Mpa

1

Extruder unit

Screw diameter

MM

120×2

Screw L/D ratio

L/D

30:1

Melting capacit for HDPE

KG/HR

420×2

Extruder power

KW

132×2

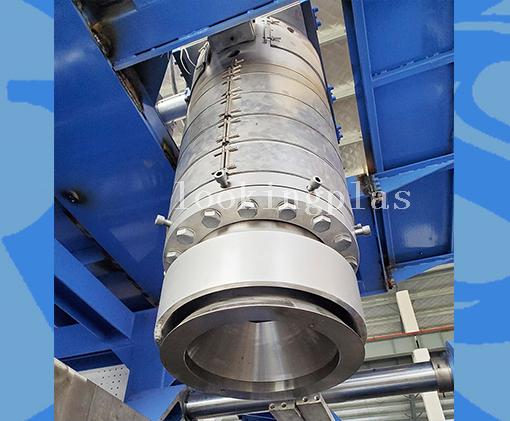

Die head

Max die-pin diameter

MM

550

Accumulator capacity

L

45

Accumulator weight ( HDPE )

KG

33



jerry can drum blow molding machine5 拷22贝.jpg
