Home > Product Categories > Plastic mannequin blow molding machine

Plastic mannequin blow molding machine 1143 Favorites

Product Categories: Stretch Blow molding
Packaging Details:sea pacakge Trademark:SJR
Certification: CE,  ISO9001:2008,  Other,
Payment Terms: L/C,  T/T,  Western Union,  Paypal,
FOB: USD  $/Set HS Code: 8477301000
Loading Port:QINGDAO
QingDao SJR Machinery Co., Ltd.
Company type: Manufacturer Credit:
Main products:Plastic machine,plastic products,spare parts and other machine

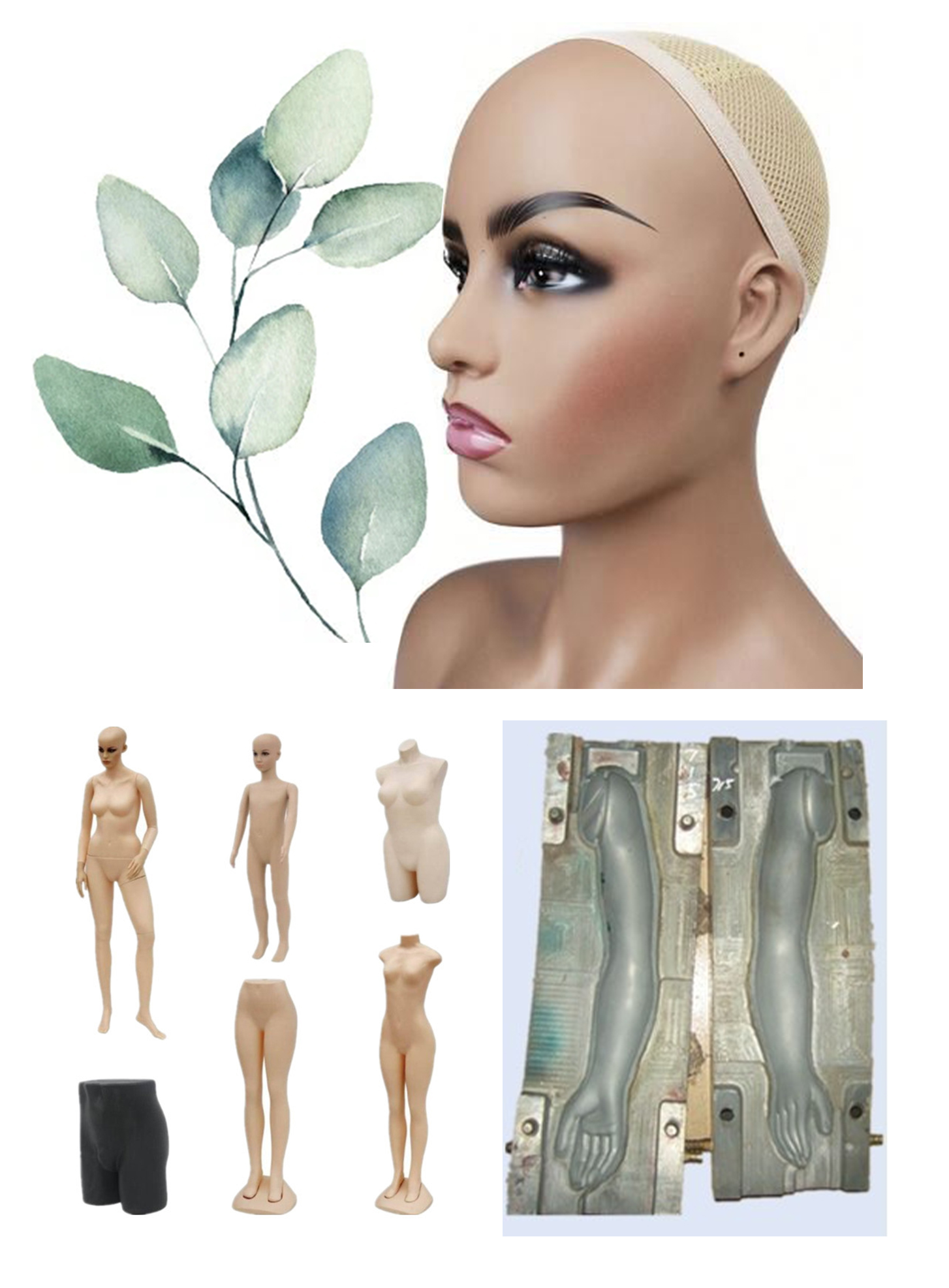

This series of blow molding machine is applicable for PE etc raw material,and capacity between 10L and 50L.It is widely used in plastic mannequin head production, and medium-sized plastic hollow products.

This type of blow molding machine adopts two pull-rod type closing-mold device by rack and pinion system.The large setting platen is suitable for various sizes of molds.


Basic Specification of mannequin head blow molding machine:



Plastic mannequin accumulator head extrusion blow molding machine7.jpg

(1)Accumulate die head

(2)Robort arm(optional)

(3)Multi-layer(optional)

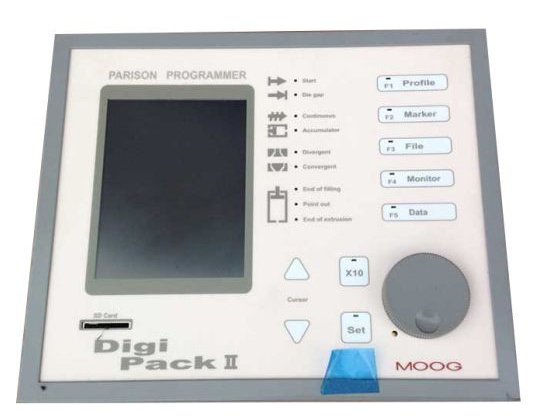

(4)MOOG 100 points parison controller

(5)Servo system

Working condition of mannequin head blow molding machine:

Power Supply: 380v/50hz/3ph(customized)

Water cooling:15HP water chiller

Air compressor:0.6Mpa

Plastic mannequin accumulator head extrusion blow molding machine parameter:

1. Screw& Barrel: High quality nitriding steel 38CrMoAlA for long working life.large L/D ratio design,ensure material equally processed, extruder stably.

Die –head:First-in First-out(FIFO),center-feeder/customized design.

2. Drive mode: inverter + hard gear surface decelerator,lower consumption,low noise,balanced and stable screw rotation.

3.Temperature controller:PID&PWM heating model,accurate control

4.Clamping system: Four tie rod clamping,guide rails positioning accurate,YUKEN hydraulic system.

5.PLC and HMI: Adopt PLC to control the action program of the whole machine; adopt HMI for communication, parameter setting, modification and picture display;

6.Electric Parts:SCHNEIDER Brand,high reliability,long working life.


Category

Item

Unit

Parameters

Basic Specification

Raw material

-------

HMWHDPE/HDPE

Max container capacity

L

100

Weight

T

17T

Dimension(L×W×H)

m

5.5x2.9x4.2

Extrusion Unit

Diameter of screw

mm

100

L/D of screw

------

30:1

Plasticizing capacity

Kg/hour

100

Barrel screw material

/

38CRMOALA

Extrusion Driving power

Kw

45

Extruder Heating power

Kw

21

Die Head

Accumulator capacity

L

10

Heating zones

piece

4

Power of die heating

kw

18.5

Head material

/

38CRMOALA

Clamping Force

Mould thickness

mm

600

Platen opening stroke

mm

1300

Max mould size

mm

800x1200

Clamping force

KN

500

Power

Max drive

kw

22

Total Power

Kw

100

Average consumption

Kw

55

Pressure of air source

Mpa

0.8

Air consumption

m3/min

1.2

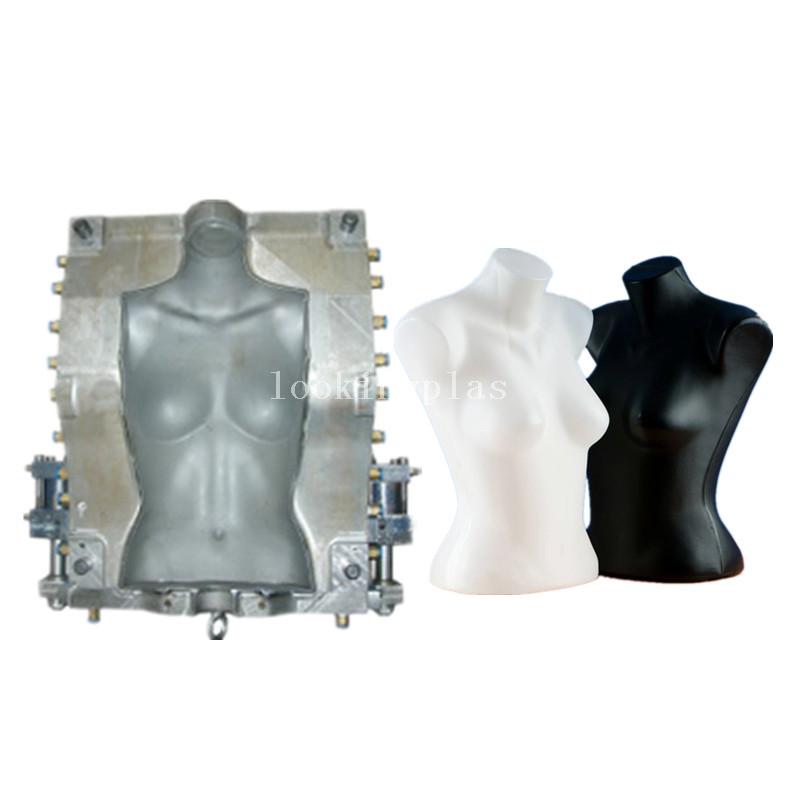

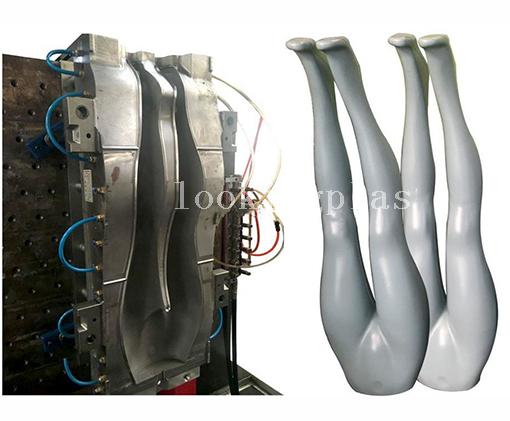

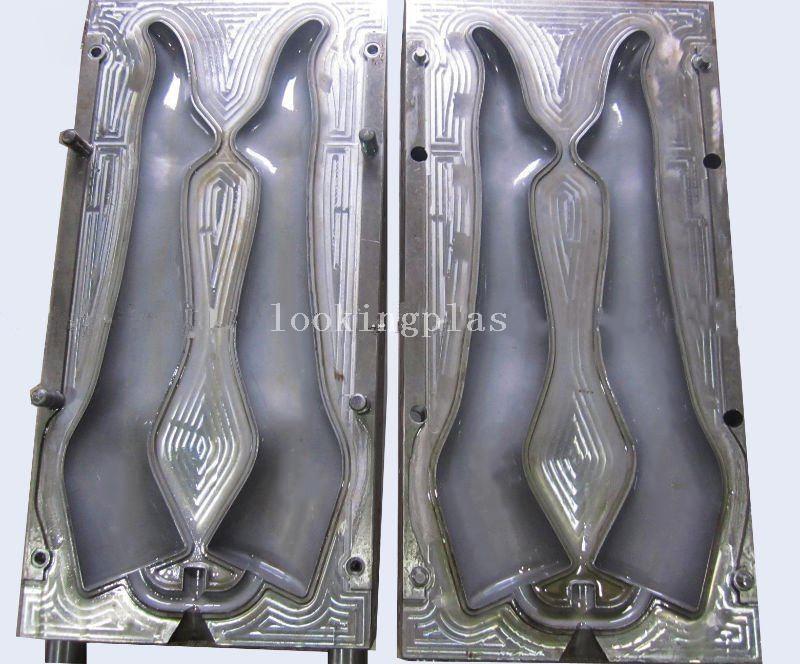

Plastic mannequin blow mold:



jerry can drum blow molding machine5 拷22贝.jpg
