Solar panel float tank blow molding machine/walkway float tank blow molding machine 1301 Favorites

Product Categories: Extrusion Blow Molding
Packaging Details:sea package	Trademark:SJR
Certification: CE, ISO9001:2008,
Payment Terms： L/C, T/T, Western Union, Paypal, Other,
FOB: USD $/Set	HS Code: 8477301000
Loading Port：QINGDAO

QingDao SJR Machinery Co., Ltd.
Company type： Manufacturer	Credit：
Main products：Plastic machine,plastic products,spare parts and other machine

Get Quotation

Contact Supplier

To：	LUCY
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

SPECIFICATIONS & TECHNICAL DATA
Extrusion Unit	Screw Diameter	mm	120
	Plasticizing Capacity	Kg/hour	330
	Temperature Control Zone	No.	6
Accumulating Head	Accumulating Head Volume	L	25 / 30
	Max Ejection Weight	KG	19 / 23
	Max Product Net Weight	KG	12 / 15
	Max Die Diameter	mm	500 / 650
Clamping Unit	Clamping Force	KN	1500
	Platen Size	mm	1400x1600
	Opening Distance	mm	600~1600
	Max Mould Thickness	mm	950
	Max Mould Size	mm	1250x1850
Driving System	Extrusion Motor Power	KW	90 KW
	Pump Motor Power	KW	22
	Machine Total Power	KW	195
	Average Power Consumption	KW	75

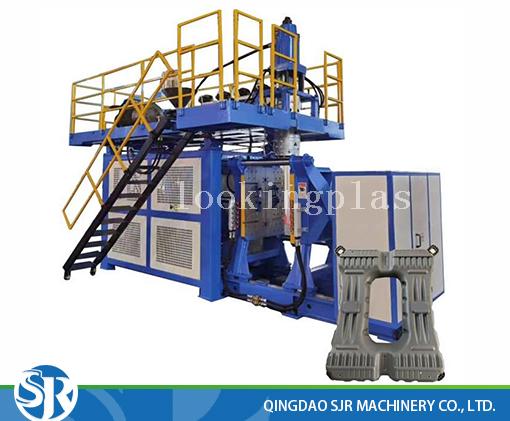

Model	solar float tank blow molding machine
layer	1
Liter	500-1000L
material	HDPE
using	solar energy
Name	solar tank blow molding
