Plastic Loss in Weight Feeder Features:
*
The loss-in-weight twin-screw feeder is using twin screws and single point weighing module to reach real-time weighing.
*Screws and agitator are controlled by separate motors, they are non-interfering and flexible in use.
*Different screw type and pitch can be customized according to the different material attributes and properties to meet different capacity requirement.

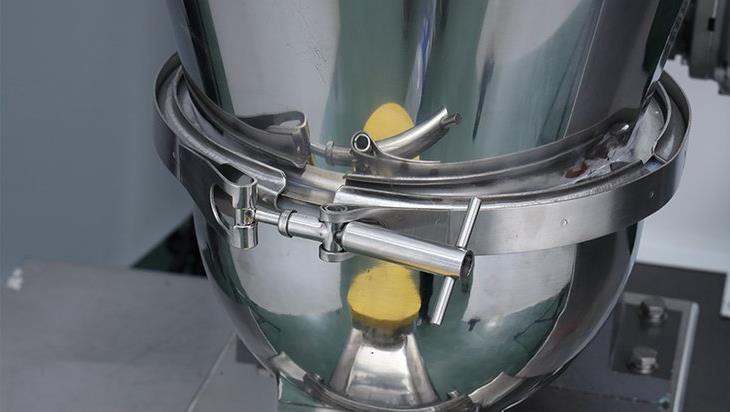

*Thanks to the agitator design, it helps effectively to clean the hopper from material adhesive to the hopper in order to avoid from bridging. This therefore increases the overall accuracy.
*All components in contact with materials are made of SUS 304 stainless steel.
*Easy to dismantle and clean.
Plastic Loss in Weight Feeder Technical Data:
Mode | Diameter (mm) | L/D | Screw rotary speed (r/min) | Motor power(kw) | Torque(N.m) | Capacity(kg/h) |
TSE-20 | 22 | 32-44 | 600 | 5.5 | 43 | 1-10 |
TSE-30A | 31 | 32-48 | 500 | 11 | 105 | 5-30 |
TSE-30B | 31 | 32-48 | 600 | 15 | 119 | 5-40 |
TSE-40A | 41 | 32-52 | 600 | 15 | 119 | 65-110 |
TSE-40B | 41 | 32-52 | 400 | 22 | 263 | 90-150 |
TSE-52B | 51.5 | 32-64 | 600 | 75 | 597 | 225-250 |
TSE-65B | 62.4 | 32-64 | 600 | 90 | 716 | 250-300 |
TSE-75B | 71 | 32-64 | 600 | 132 | 1050 | 350-550 |
TSE-75D | 71 | 32-64 | 600 | 220-250 | 1990 | 500-1000 |
TSE-95A | 93 | 32-64 | 500 | 250 | 2387 | 600-1000 |
TSE-95B | 93 | 32-64 | 600 | 315 | 2506 | 800-1200 |
TSE-135 | 133 | 32-64 | 500 | 750 | 7162 | 1500-2250 |
Plastic Loss in Weight Feeder Projects:
