PVC Upper and Strap Injection Moulding Machine

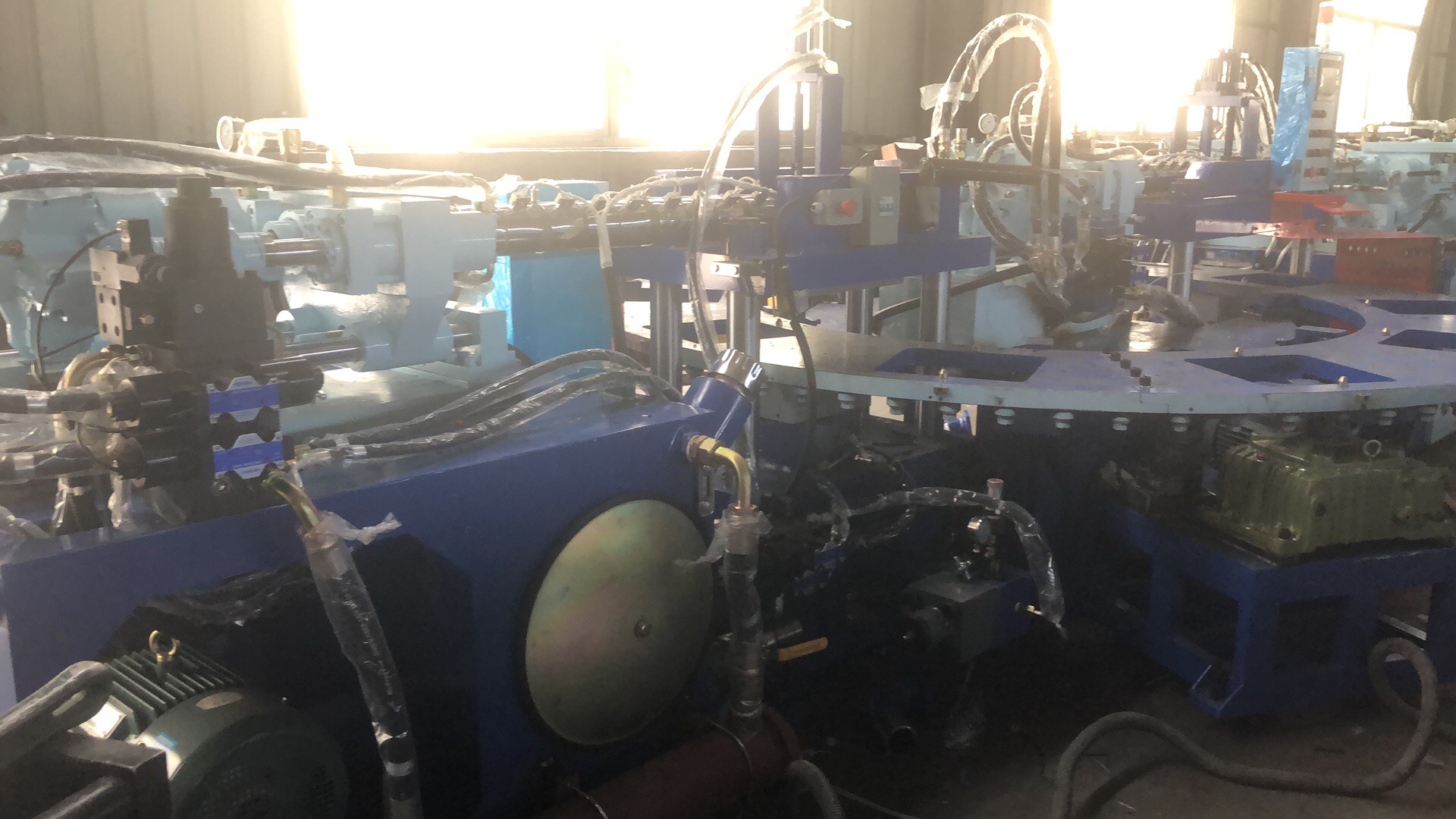

JIC508B PVC Three Color Upper and Strap Injection Machine
Features

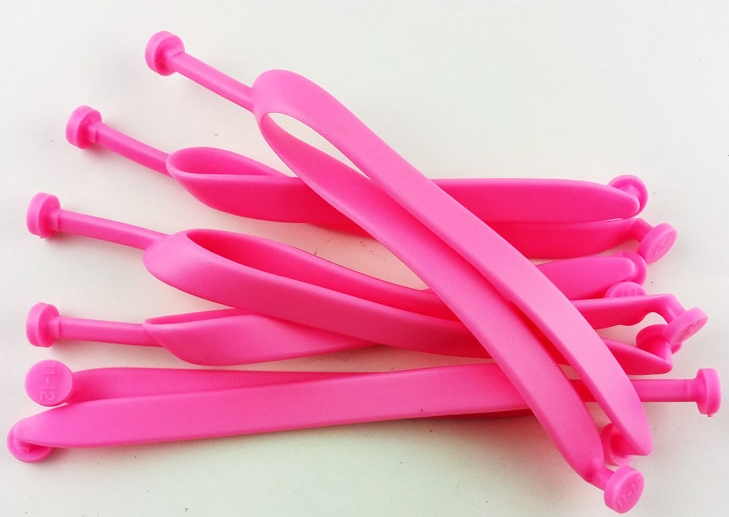

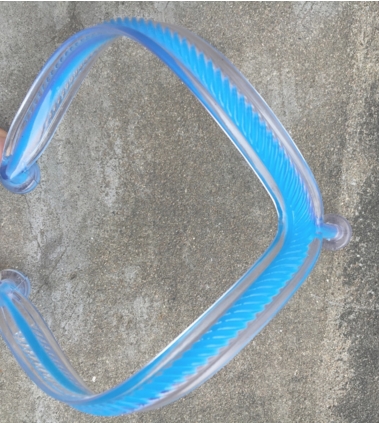

1. It specializes in the production of one / two / three color PVC shoe products, such as sneakers, sandals and thin soles.
2. The three color upper and belt injection machine is controlled by PLC is a computer-human industrial interactive interface system.
3. The double proportional hydraulic system is applied to control the pressure and flow, which makes operation easier, reasonable and convenient and realizes the stable quality of the products.
4. Digital measurement makes the data accurate.
5. This three-color belt and upper part injection machine is rationally designed and considered in operation, so it can work even without teachers.
6. Complies with productivity with low energy consumption and human work.
7. The main machine can be exchanged with an auxiliary machine to produce one / two / three / color products.
8. The diameter of the oil cylinder of our three-color belt and top injection machine is 250mm, which is different from the diameter (220mm) of the other manufacturers. The clamping force of our machine is 80T, 20T longer than that of other manufacturers' machines.
Parameters:
Project | Unit | Specifications |
Model |
| 506B | 508B | 510B |
Raw material |
| PVC | PVC | PVC |
Work station number(max) | station | 6 | 8 | 10 |
Injection capacity(max) | cm3/cc | 300,250*2 | 300,250*2 | 300,250*2 |
Injection Hydraulic | kg/c㎡ | 0-120 | 0-120 | 0-120 |
Heating Power | kw | 22 | 22 | 22 |
Limit of temperature | point | 4 | 4 | 4 |
Screw Speed | r.p.m | 0-190 | 0-190 | 0-190 |
Screw Diameter | mm | Φ50,Φ45*2 | Φ50,Φ45*2 | Φ50,Φ45*2 |
Motor Power | kw | 11*2 | 11*2 | 11*2 |
Clamping force | T | 80 | 80 | 80 |
Mold Size L*W*H（max) | mm | 350*350*120 | 350*350*120 | 350*350*120 |
Mould Height | mm | 30-125 | 30-125 | 30-125 |
Machine Size | mm | 6600*2500*1800 | 6600*2500*1800 | 7000*3150*1800 |
Gross Weight | kg | 8100 | 8100 | 8400 |
