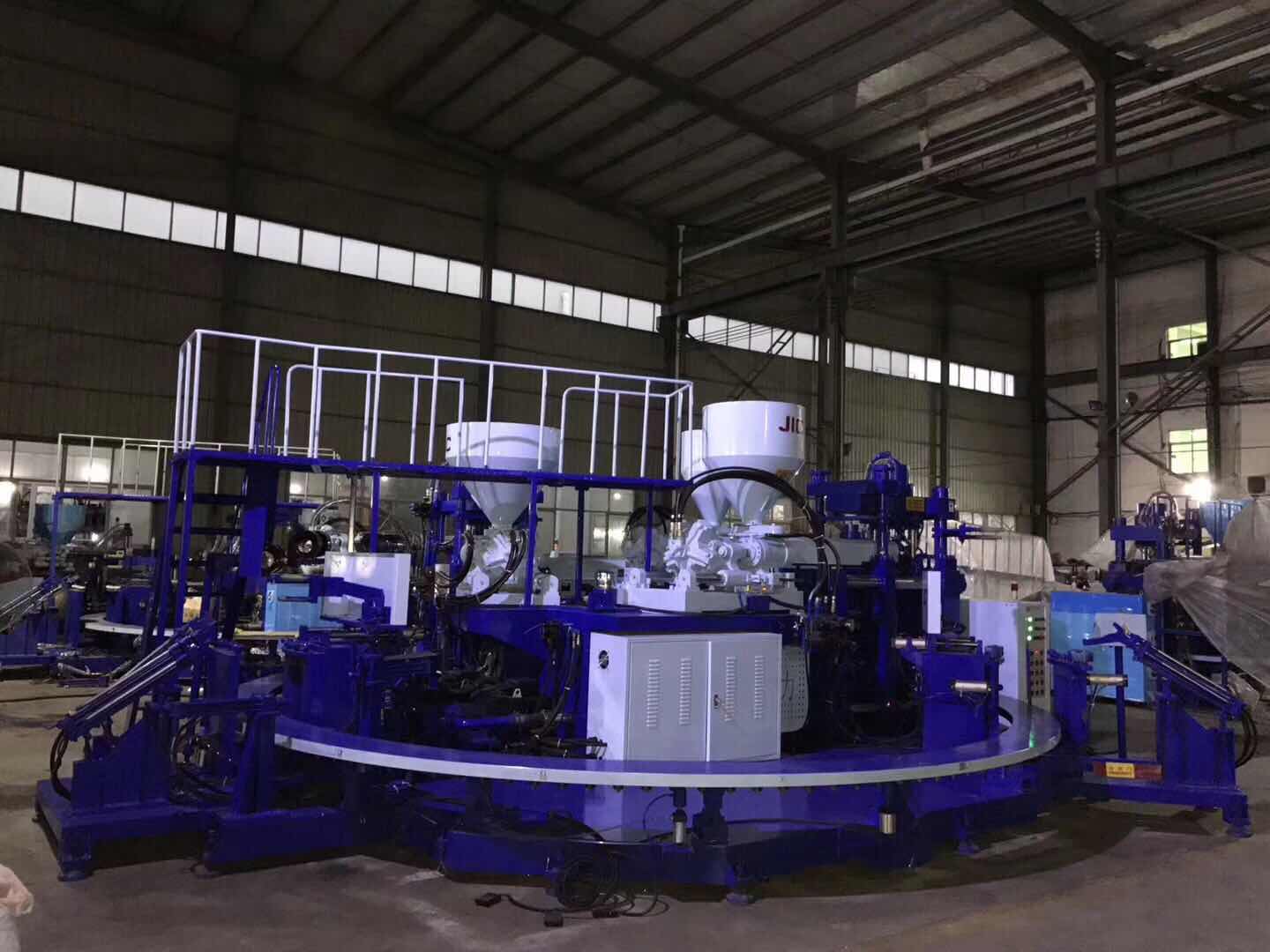

JIC 6316N1SF Three Color Rain Boot Molding Machine
Features
1.This rain boot molding machine is designed to produce single color, two color and three color PVC boots.
2.Interface of human-computer industrial interaction, PLC programmed control and touch screen.
3.Dual hydraulic ratio system. The pressure and flow are adjustable, which makes the operation more convenient and reasonable, and the production quality more stable.
4.Precise digital measurement method.
5. Reasonable design, easy to operate and can be used without professionals.
6.The machine has mechanical arm, fully automatic control, and this rain boots machine is able to save labor and increase production.
7.The three color rain boot molding machine has variable speed pump system and servo system, both systems save electricity; The variable speed pump can save around 25% and the servo system 40% (this may depend on the products).
Parameters:
Project | Unit | Specifications |
Model |
| 6316N1SF | 6316B1SF |
Raw Material |
| PVC | PVC |
Work station number(max) | station | 16 | 16 |
Injection capacity(max) | cm3/cc | 1270/770/565 | 660/565/300 |
Injection Hydraulic | kg/c㎡ | 0-150,0-120,0-120 | 0-120 |
Heating Power | kw | 15/13/11 | 13/13/11 |
Limit of temperature | point | 5 | 5 |
Screw Speed | r.p.m | 0-150 | 0-150 |
Screw Diameter | mm | ¢90,¢70,¢60 | ¢65,¢65,¢50 |
Motor Power | kw | 22,18.5,15 | 15,15,11 |
Clamping force | T | 250/300 | 180/120 |
Mold Size L*W*H（max) | mm | 715*420*200 | 520*390*200 |
Machine Size | mm | 7220*6350*2560 | 6750*6000*2340 |
Gross Weight | kg | 22000 | 18000 |
