TPR sole molding machine
JIC512 Two Color TPR Sole Injection Molding Machine
Features

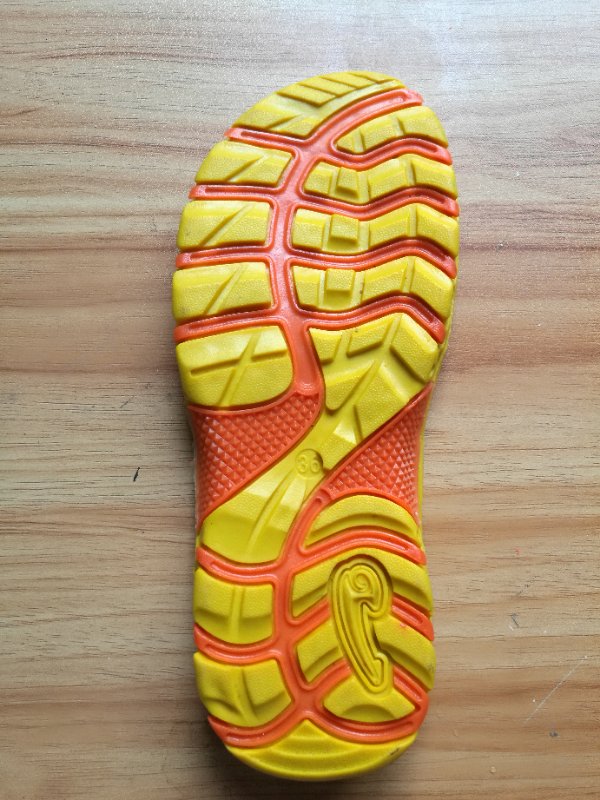

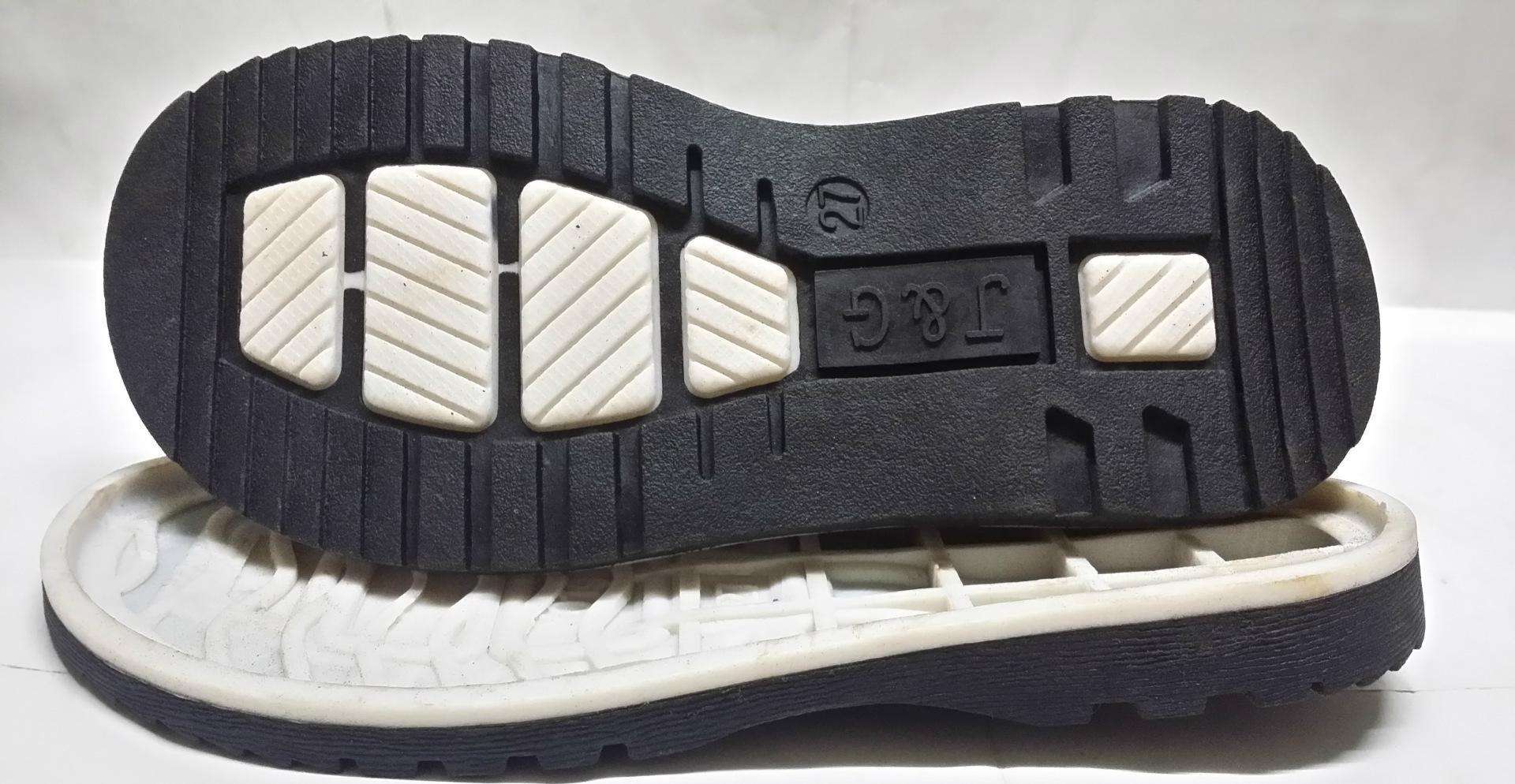

1. The TPR sole injection machine (thermoplastic rubber sole injection molding machine) specializes in the production of TPR shoe soles in one of two colors.
2. Its biggest advantage is energy saving. The TPR shoe sole injection molding machine has a low gross power of 26kW.
3. With a touch screen, the TPR sole injection machine performs an industrial interface of computer-man interaction via PLC control.
4. The TPR shoe sole injection molding machine is controlled by double proportion system. Ensures the quality of the products because the injection speed, material volume and pressure can be adjusted.
5. The data of the TPR sole injection machine is accurate due to digital measurement.
6. The TPR shoe sole injection molding machine is rationally designed, it can be operated without specialists.
Parameters:
Project | Unit | Specifications |
Model |
| 512 | 516 | 520 |
Raw material |
| PVC/TPR | PVC/TPR | PVC/TPR |
Work station number(max) | station | 12 | 16 | 20 |
Screw Diameter | mm | ¢60,¢50 | ¢60,¢50 | ¢60,¢50 |
Screw Speed | r.p.m | 0-190 | 0-190 | 0-190 |
Injection capacity(max) | cm3/cc | 565,300 | 565,300 | 565,300 |
Injection Hydraulic | kg/c㎡ | 0-120 | 0-120 | 0-120 |
Clamping force | T | 60 | 60 | 60 |
Motor Power | kw | 15,11 | 15,11 | 15,11 |
Heating Power | kw | 13,11 | 13,11 | 13,11 |
Limit of temperature | point | 4 | 4 | 4 |
Mold Size L*W*H（max) | mm | 280*350*150 | 280*350*150 | 280*350*150 |
Mould Height | mm | 60-150 | 60-150 | 60-150 |
Machine Size | mm | 7600*3000*1950 | 7700*3300*1800 | 8000*4000*1800 |
Machine Weight | kg | 9200 | 10000 | 11000 |
