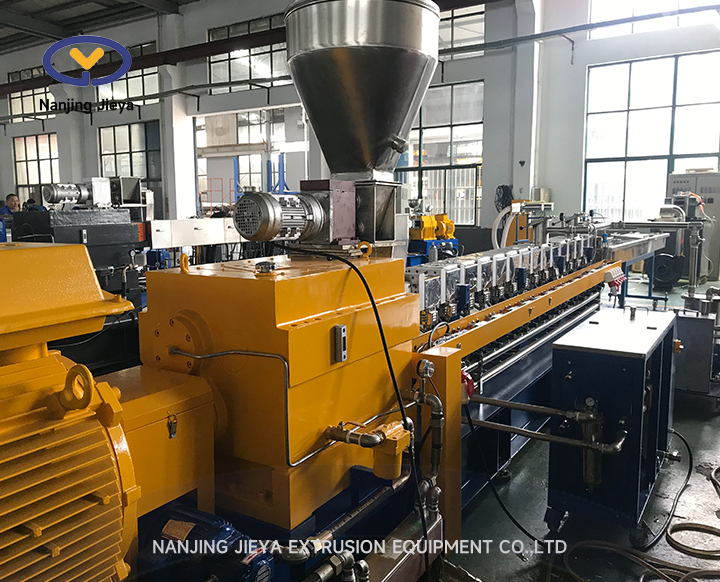

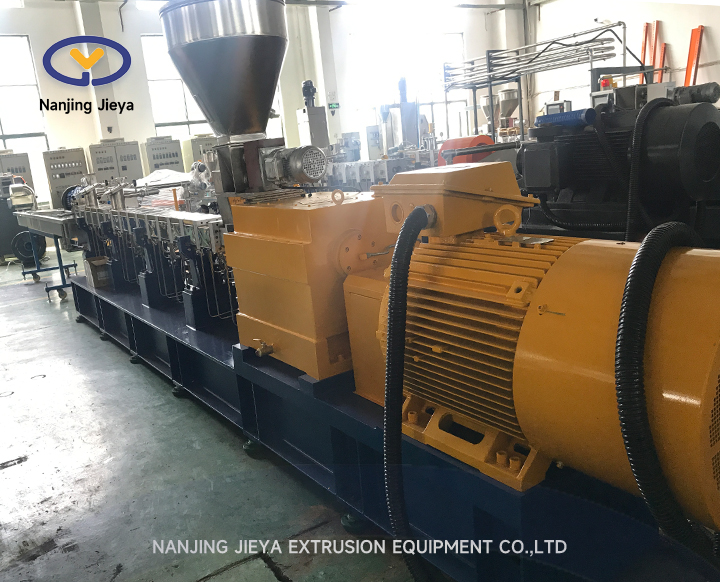

SHJ-30 Twin Screw Extruder for Making Color Masterbatch
Nanjing JIEYA also manufacture twin screw compounding extruders for color masterbatch.
v South Africa customer bought over 10 lines for making color masterbatch
Advantages:
l Founded in 2004, 17+ Years Experience
l Annual Production Capacity of 500 Sets
l CE & ISO 9001 Certificates
l 100% Parts are Self-made
l Competitive Price & Best Customer Service
l Fast Delivery
l 12 months quality guarantee
Features:
Gear box-self made
Torque rating grade: T/A3≤8 domestic standard major parts
New structure design and high precision grinding of hardened gear teeth to ensure the gear box long time high efficiency working.
Screw-self made
Screw element is with closely intermeshed design, block type and can be easily exchanged to suit different material.
Barrel-self made
Precision grade can reach to IT 6. It is benefit for energy reduction and block type design makes it possible for various combination.
Parameters:
Model | Screw Diameter (mm) | L/D | Screw RPM | Main motor KW | Torque Grade T/N3 | Capacity kg/h |
SHJ-20 | 21.7 | 32-68 | 400/500/600 | 4 | 5.8 | 0.5-15 |
SHJ-30 | 30 | 32-68 | 400/500/600 | 11 | 5.8 | 5-50 |
SHJ-36 | 35.6 | 32-68 | 500/600/700/800 | 15-18.5-22 | 5.7 | 20-80 |
SHJ-42 | 41.2 | 32-68 | 500/600/700/800 | 22-30-37 | 5.7 | 50-120 |
SHJ-50 | 50.5 | 32-68 | 500/600/700/800 | 37-45-55 | 5.8 | 80-200 |
SHJ-63 | 62.4 | 32-68 | 500/600/700/800 | 55-75-90 | 5.8 | 150-350 |
SHJ-72 | 71 | 32-68 | 500/600/700/800 | 90-110-132-160 | 5.7 | 300-600 |
SHJ-85 | 82 | 32-68 | 500/600 | 160-200 | 5.7 | 600-1000 |
SHJ-92 | 91 | 32-68 | 500-600 | 250 | 5.8 | 840-1600 |
SHJ-135 | 133 | 32-68 | 650-750 | 400-500 | 5.8 | 1950-3250 |
