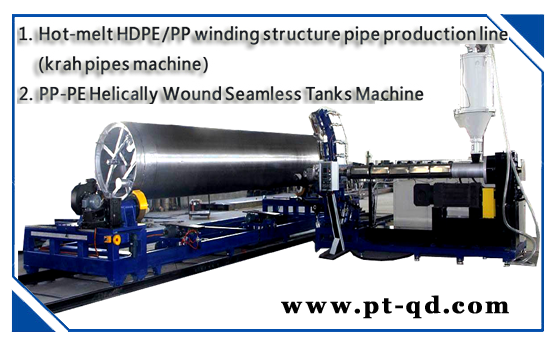

Hot-melt HDPE/PP winding structure pipe production line
（krah corrugated pipe machine）
PP-PE Helically Wound Seamless Tanks Machine
This kind pipe has two modes of production.
1. Fixed length production ( krahTM pipe)
The machine can make pipes and tanks.
2. Continuous production
The pipe is wound by our patented continuous winding technology, and connected by our
patented pipe fittings.
3. Features
Its dependable performance and no-leakage guarantee make it become a new environment-
friendly pipe.
The pipe range is from 400mm-3000mm,It has many strong merits such as anti-
corrosiveness, anti-aging,free from contamination, light weight, smooth inner wall and large
water transfer quantity, reliable sealing, speedy construction, and so on.
It is mainly applied to municipal construction, irrigation project,diversion for generate
electricity, transfer water for mine and many other fields, It will prove to be the main stream
product and gradually replace metal pipes,PCCP pipe, cement pipe and other plastic pipes.

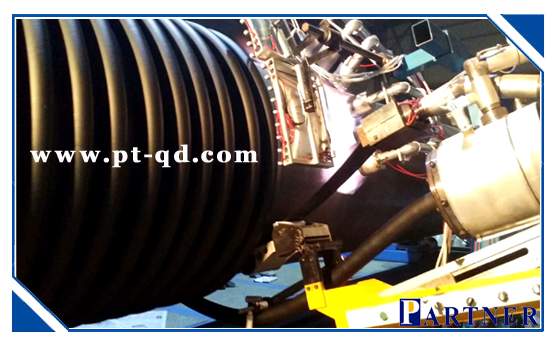

1.Pictures-Fixed length production ( krahTM pipe):

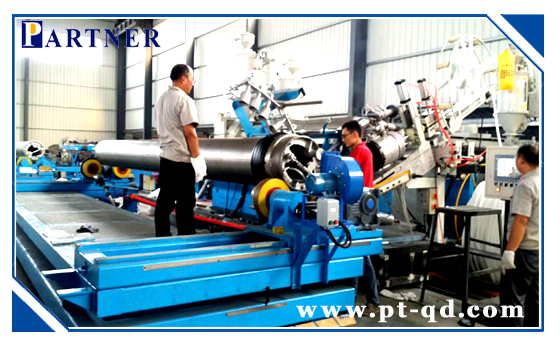

2.Pictures-tanks production:

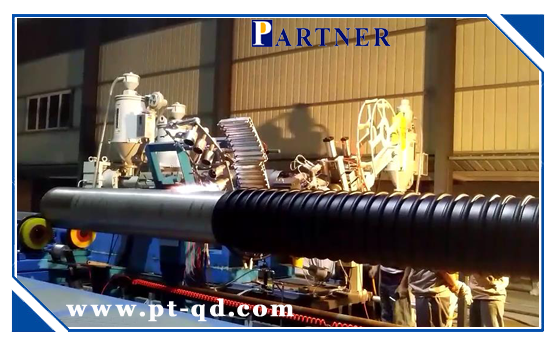

3.Pictures-Continuous production:
Technical parameter-continuous production line
Model | Diameter （mm） | Extruder Model | speed （m/h） | Max.output （kg/h）
| Total installed power （KVA） | Overall Dimension L×W×H
|
LBWG －800 | 300-1200 | SJ-65×33 （2sets） SJ-40×30 （1sets） | 1-30 | 400 | 170 | 17×8×4.0 |
LBWG -1600 | 600-1600 | SJ-80×33 （2sets） SJ-40×30 （1set） | 1-20 | 800 | 270 | 20×10×4.8 |
LBWG -2000 | 800-2000 | SJ-90×33 （2sets） SJ-50×33 （1set） | 1-18 | 1200 | 350 | 22×12×5 |
LBW -3000 | 1500-3000 | SJ-100×33 （2sets） SJ-50×33 （1set） | 1-10 | 1500 | 400 | 25×12×7
|
