Home > Product Categories > SJ-P SERIES Plastic Blowing Film Gravure Printing Unit

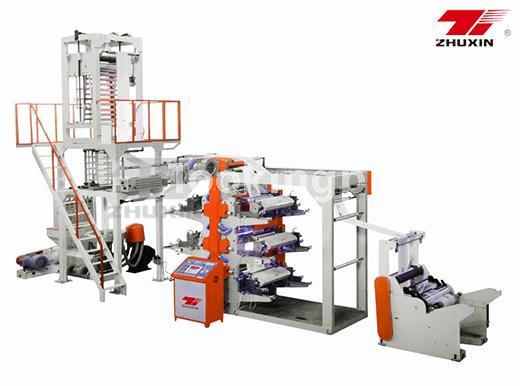

SJ-P SERIES Plastic Blowing Film Gravure Printing Unit 578 Favorites

Product Categories: Film Blowing and Printing Combined Machine
Packaging Details:Export Standard Seaworthy Packing Trademark:Zhuxin
Certification: CE  ,ISO9001:2008  ,
Payment Terms: L/C  ,T/T  ,Western Union  ,
FOB: USD  $/Set HS Code: 84778000
Loading Port:Ningbo
Zhejiang Zhuxin Machinery Co., Ltd
Company type: Manufacturer Credit:
Main products:film blowing machine, flexo printing machine, bag making machine, paper bag making machine

Model SJ-P45/50/55/60/65
Take Up Unit Height Adjustable /
Air Ring 1
Center Steady Stick 1
Warranty 1 Year
Take-up Motor 1.5kw
Take-up Speed 10-80m/min
Winding Speed 10-80m/min
Take Up Unit Effective Width 1200mm
Take Up Unit Roller Width 1300mm
Winding Motor 16N.m
Extruder Main Motor 22kw
Printing Length(mm) 250-1000
Extruder Screw L/D Length 28:1/30:1
Die Temperature Control 3
Extruder Average Power Consume 30kw
Extruder Cylinder Cooling 370W×2
Voltage 380V, 50HZ, 3PHASE
Extruder Temperature Control 4
Air Blower 4kw
Outline dimension(L×W×H) 5.8×2.6×6.3m
Film Width 600-1200mm
Film Thickness HD0.009-0.15mm, LD0.03-0.15mm
Max Extrusion Output HD55kg/hr, LD70kg/hr
Suitable Material HDPE, LDPE, LLDPE
Die Size HDφ120/150, LDφ220/250
Precision of Color Printing(mm) Horizontal 0.2, Vertical 0.2
After Sales Services online support, field installation, commissioning and training
Extruder Screw Material Sacm-645/38 Crmoala
Extruder Cylinder Material Sacm-645/38 Crmoala
Model SJ-P65
Winding Unit Type Surface friction type
Extruder Screw Diameter φ65
