Home > Product Categories > Recycling Machine Chunk Waste Plastic Textile Shredder Machine Double Shaft Wood Shredder

Recycling Machine Chunk Waste Plastic Textile Shredder Machine Double Shaft Wood Shredder 965 Favorites

Product Categories: Shredder
Packaging Details:Film	Trademark:WOBIDE
Certification: CE, ISO9001:2008, Other,
Payment Terms： L/C, T/T,
FOB: USD $17000/Set	HS Code:
Loading Port：NINGBO/SHANGHAI

Wobide Machinery (Zhejiang) Co.,Ltd
Company type： Manufacturer	Credit：
Main products：Plastic crusher,Shredder,Recycling Line

Get Quotation

Products Description

WT1000

Model	WT600	WT800	WT1000	WT1200	WT1400	WT1600
Main Shaft Length(mm)	600	800	1000	1200	1400	1600
Speed(rpm)	16-25	10-15	10-15	10-15	10-15	10-15
Blades (pcs)	30	20	24	24	28	32
Blades Dia (mm)	245	420	440	440	520	520
Blades thickness (mm)	18.5	40	40	50	50	50
Motor Power(kw)	2*7.5	2*22	2*30	2*30	2*37	2*45
Cutting Chamber Diamension (mm)	480*600	820*800	1020*800	1220*800	1420*950	1620*950
Overall Dimension (mm)	200011001700	300012502150	420016002150	480020002150	520022002300	600024002650
Weight(kg)	1700	5000	6200	7500	9000	11000

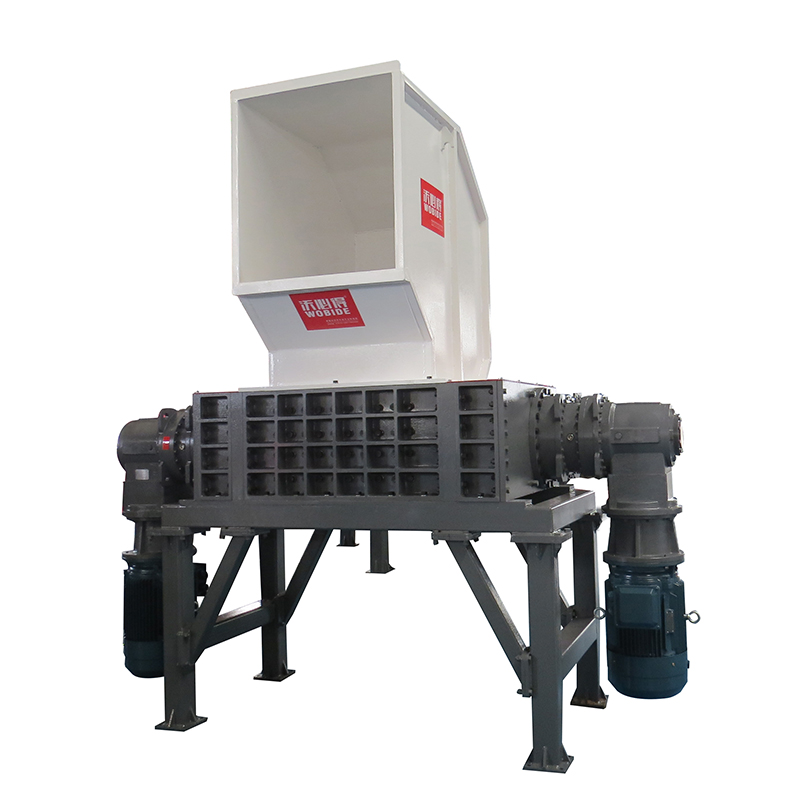

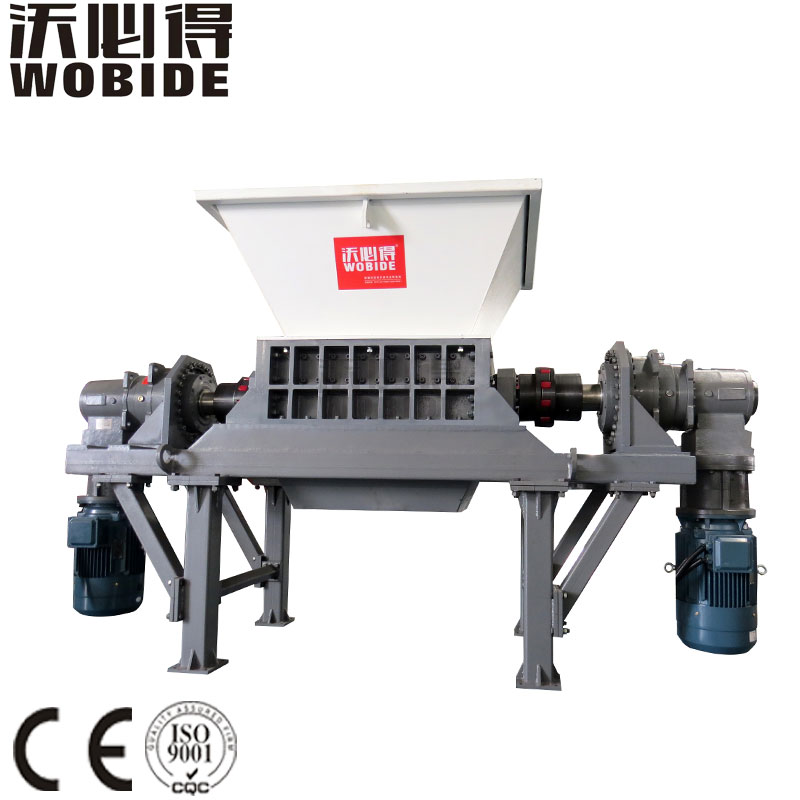

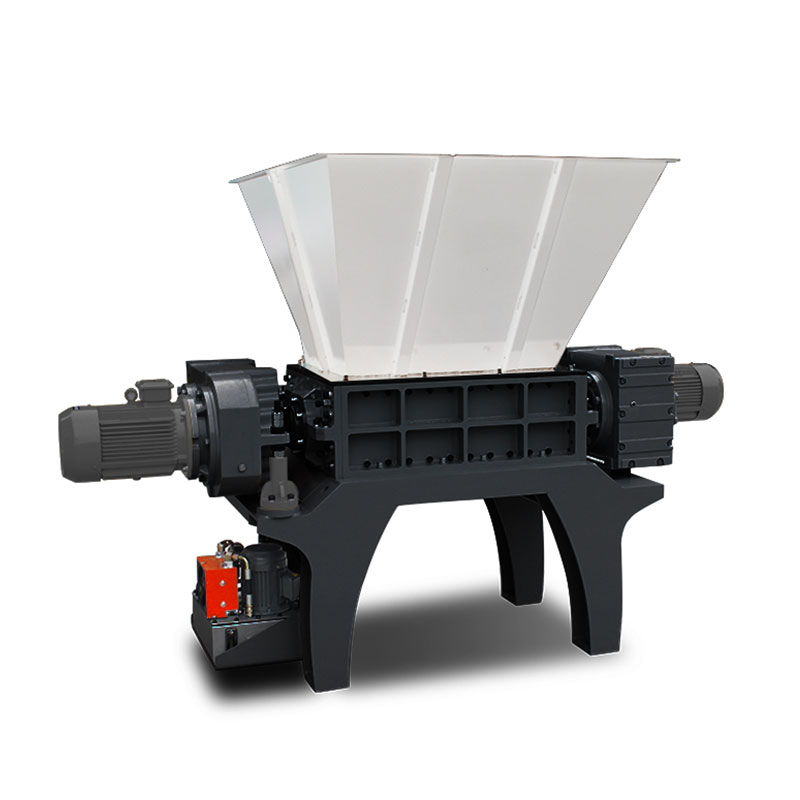

WT series dual shaft shredder can meet the waste recycling requirements of various industries, including automobile tires, wood, wire, plastic, metal etc. The shredded material can be directly recycled or further crushed according to demand.It adopts the principle of two shaft shearing, and realizes the fine decomposition of materials through the shearing, tearing and squeezing actions of the blades. The shredder blades can be customized depending on the material need to be processed. Two counter rotating shafts with special design blades and spacer combs placed between blades and attached to shredding chamber walls cut material into pieces with great force.

Details Images

Advantages:
The discharge port is designed without screen, which greatly improves the shredding efficiency. Each rotor is driven by independent motor and planetary gear reducer with large torque, stable performance.
The hydraulic feeding device can be customized, micro PLC for auto control of start and stop, co-rotation and reversal rotation of rotors while overload.

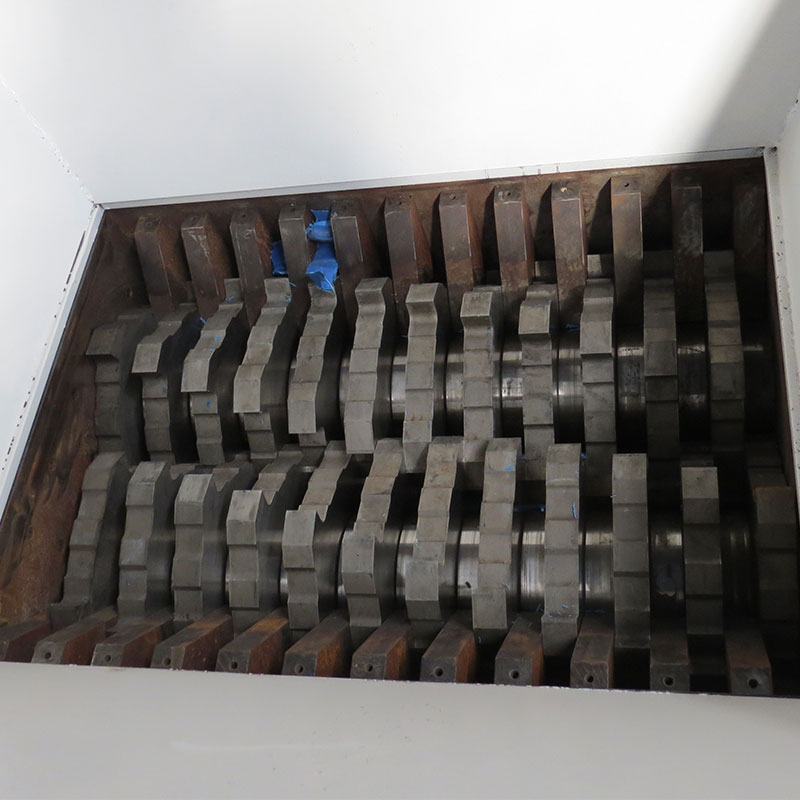

Blade could be customized according to different application. The blade material includes 60Si2Mn, H13, D2, and the structure has split type and integral type for option. Single claw or multiple claw blades are optional according to different materials and requirements for high efficiency.
The hydraulic feeding device can be customized, micro PLC for auto control of start and stop, co-rotation and reversal rotation of rotors while overload.
Blade could be customized according to different application. The blade material includes 60Si2Mn, H13, D2, and the structure has split type and integral type for option. Single claw or multiple claw blades are optional according to different materials and requirements for high efficiency.

Don't leave here,we are the most reliable supplier!!!We can do:
Plastic crusher/shredder/recycle production line
We can offer:
customization+high quality+certificate+service
We have:30 years experiences
Alibaba Verified Gold Certification Supplier
Please tell us:Type of raw material
Required output per hour

Application

Application Of Double Shaft Shredder Machine:⇨Metal Waste⇨E-waste
⇨Tire
⇨Large Tubular products
⇨Pallet
⇨Vehicle Cabinet
⇨Waste household appliance
⇨Barrel

Please send us your material pictures, we can recommend suitable models for you

More Products

Company Profile

FAQ

1.What information shall I provide when I request for quotation?

Information should be including parameters or technical requirements, such as: processing materials, output size, capacity, etc.

2. Are you trading company or manufacturer?

We are ISO9001 certified manufacturer focus on fabricating solide waste recycling machine since 1995, address: No.3 Geely Avenue, Toumengang New Street, Linhai, Taizhou 317000, Zhejiang China

3. What kind of products do you offer?

We have four main categories of products, shredder, plastic crusher, plastic recycling and washing line, plastic granulator andauxiliary equipment.

4.What are the applications of these products?

Our products are wildly used in shredding and crushing of plastic woven bags, plastic film, PA/PC plastic block, household appliance shells and inner tanks, plastic pipes, plastic containers, wastepaper, straw, wood, urban household garbage, medical waste, electronic waste and waste metal, etc. And waste plastic recycling and washing and plastic granulation.

5. Do you support product customization?

Yes, not only we provide customized service but also provide solutions to our customer.
