full automatic plastic bottle making machine injection blow molding machine 958 Favorites

Product Categories: Injection Blow molding
Packaging Details:	Trademark:AiBiM
Certification: CE,
Payment Terms： L/C, T/T,
FOB: USD $30000/Set	HS Code:
Loading Port：Shanghai

Zhangjiagang AiBiM Machinery Co.,Ltd.
Company type： Manufacturer	Credit：
Main products：AiBiM injection Blow Molding Machine,Mold

Get Quotation

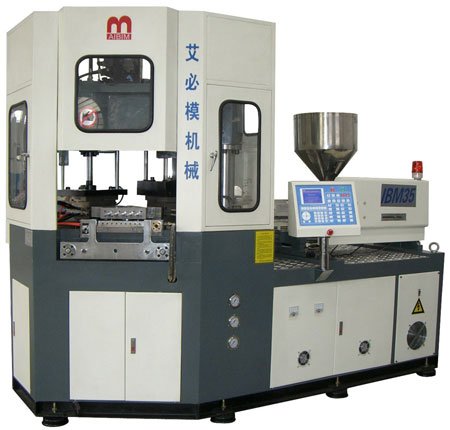

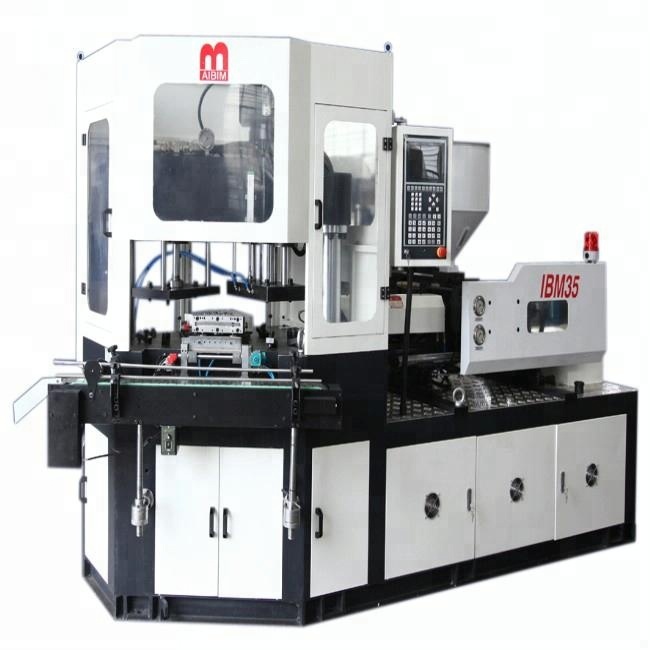

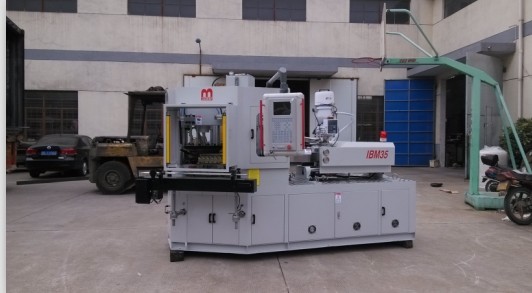

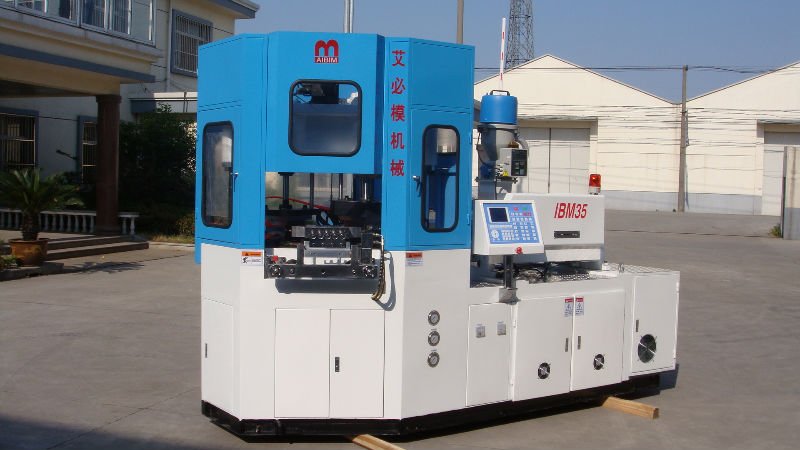

Model	IBM35
conveyer belt motor power	0.1kw
min air working pressure	0.8Mpa
motor power	11/15kw
opening stroke of injection mold	120mm
blow mold opening stroke	120mm
hydraulic working pressure	14Mpa
max theoretical shot volume	176g
min mold thickness	180mm
mold-heating power	2.8kw
total power	25kw
product range	3-600ml
dimension of machine(LxWxH)	3100x1200x2200mm
clamping force of injection mold	350kn
consumption of cooling water	3m³/h
no. of heating zone	3qty
machine weight	4.0t
clamping force of blow mold	40kn
dia.of screw	40mm
max platen size of mold(LxW)	420x340mm
dry cycle time	4s
total power of for charging barrel	7.2kw
product height	≤175mm
product dia.	≤80mm
discharge rate of compressed air	≥0.7m³/min
