Model
|
DS160 |
DS250 |
| Model |
DS160 |
DS250 |
| Pipe Diameter |
40mm-160mm |
50mm - 250mm |
| Pipe Length |
3m-6m |
3m - 6m |
| Oven |
One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink |
One heating oven, semi-enclosed heated，Stainless steel heating tube with a heat sink |
| Pipe Rotary |
Clockwise and anti-clockwise |
Clockwise and anti-clockwise |
| Heating Power |
10KW |
11KW |
| Compressed air pressure |
0.6Mpa |
0.6Mpa |
| Water pressure |
0.4Mpa |
0.4Mpa |
| Hydraulic pressure |
6.3Mpa |
6.3Mpa |
| U-type |
Pushing the mould into pipe directly |
Pushing the mould into pipe directly |

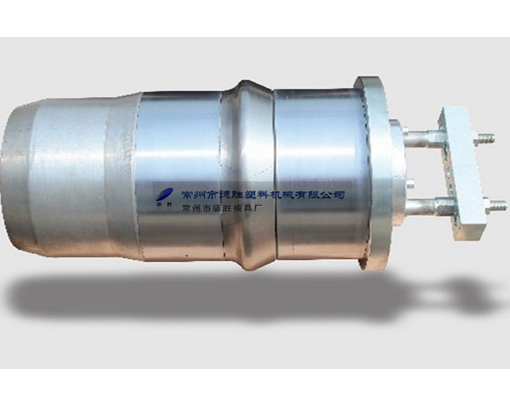

| R-type |
With ext - pressure and collapsible mandrel |
With ext - pressure and collapsible mandrel |
| Cooling type |
Water - cooling |
Water - cooling |
| Machine speed |
45S to 160S |
50S to 150S |
| Mould material |
U-type：45# steel with Cr electroplating R-type：The collapsible parts are 3Cr13 and 40Cr, other parts 45# steel with Cr electro-plating |
U-type：45# steel with Cr electroplating R-type：The collapsible parts are 3Cr13 and 40Cr, other parts 45# steel with Cr electro-plating |
| Total power |
13KW |
15.5KW |
| Machine weight |
2200kg |
2300kg |
| Machine dimension |
7000mm(L)×1530mm(W)×1920mm(H) 1*20GP |
7300mm(L)×1660mm(W)×1950mm(H) 1*20GP |
