Model
|
RBM160 |
RBM250 |
RBM315 |
RBM450 |
RBM630 |
| Pipe Diameter |
50mm – 160mm |
50mm – 250mm |
110mm – 315mm |
160mm – 450mm |
315mm – 630mm |
| Pipe Length |
3m - 6m |
3m - 6m |
3m - 6m |
3m - 6m |
3m - 6m |
| Oven |
Two heating ovens, semi-enclosed heated,Stainless steel heating tube with a heat sink |
Two heating ovens, semi-enclosed heated,Stainless steel heating tube with a heat sink |
Two heating ovens, semi-enclosed heated,Stainless steel heating tube with a heat sink |
Two heating ovens, semi-enclosed heated,Stainless steel heating tube with a heat sink |
Two heating ovens, semi-enclosed heated,Stainless steel heating tube with a heat sink |
| Pipe Rotary |
Clockwise and anti-clockwise |
Clockwise and anti-clockwise |
Clockwise and anti-clockwise |
Clockwise and anti-clockwise |
Clockwise and anti-clockwise |
| Heating Power |
17KW |
18KW |
35KW |
46KW |
85KW |
| Compressed air pressure |
0.6Mpa |
0.6Mpa |
0.6Mpa |
0.6Mpa |
0.6Mpa |
| Water pressure |
0.4Mpa |
0.4Mpa |
0.4Mpa |
0.4Mpa |
0.4Mpa |
| Hydraulic pressure |
6.3Mpa |
6.3Mpa |
6.3Mpa |
6.3Mpa |
8.0Mpa |

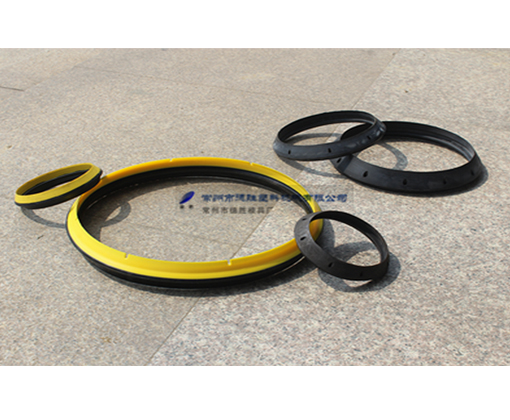

| Rieber ring-type |
With vacuum pump |
With vacuum pump |
With vacuum pump |
With vacuum pump |
With vacuum pump |
| Cooling type |
Water - cooling |
Water - cooling |
Water - cooling |
Water - cooling |
Water - cooling |
| Machine speed |
60S to 300S |
60S to 400S |
260S to 1200S |
500S to1500S |
600S to 1800S |
| Mould material |
45# steel with Cr electroplating |
45# steel with Cr electroplating |
45# steel with Cr electroplating |
45# steel with Cr electroplating |
45# steel with Cr electroplating |
| Total power |
25KW |
25KW |
50KW |
60KW |
98KW |
| Machine weight |
2800KG |
3000KG |
3800KG |
4200KG |
7500KG |
| Machine dimension |
7350mm(L)×2050mm(W)×2100mm(H) 1*40GP |
7350mm(L)×2250mm(W)×2100mm(H) 1*40GP |
8200mm(L)×2955mm(W)×2340mm(H) 1*40GP |
8200mm(L)×3055mm(W)×2340mm(H) 2*40GP |
8460mm(L)×4145mm(W)×2280mm(H) 2*40GP |
