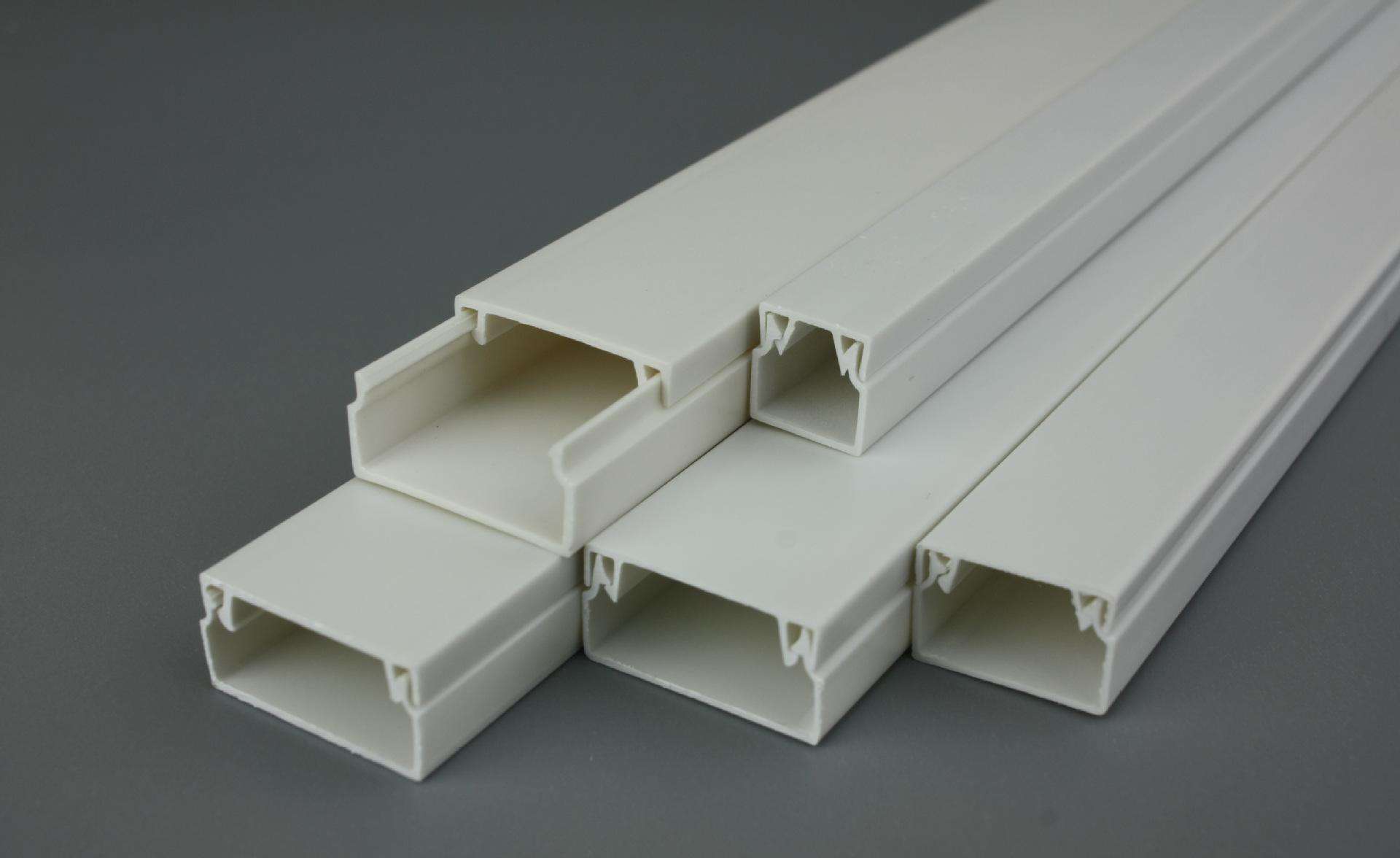

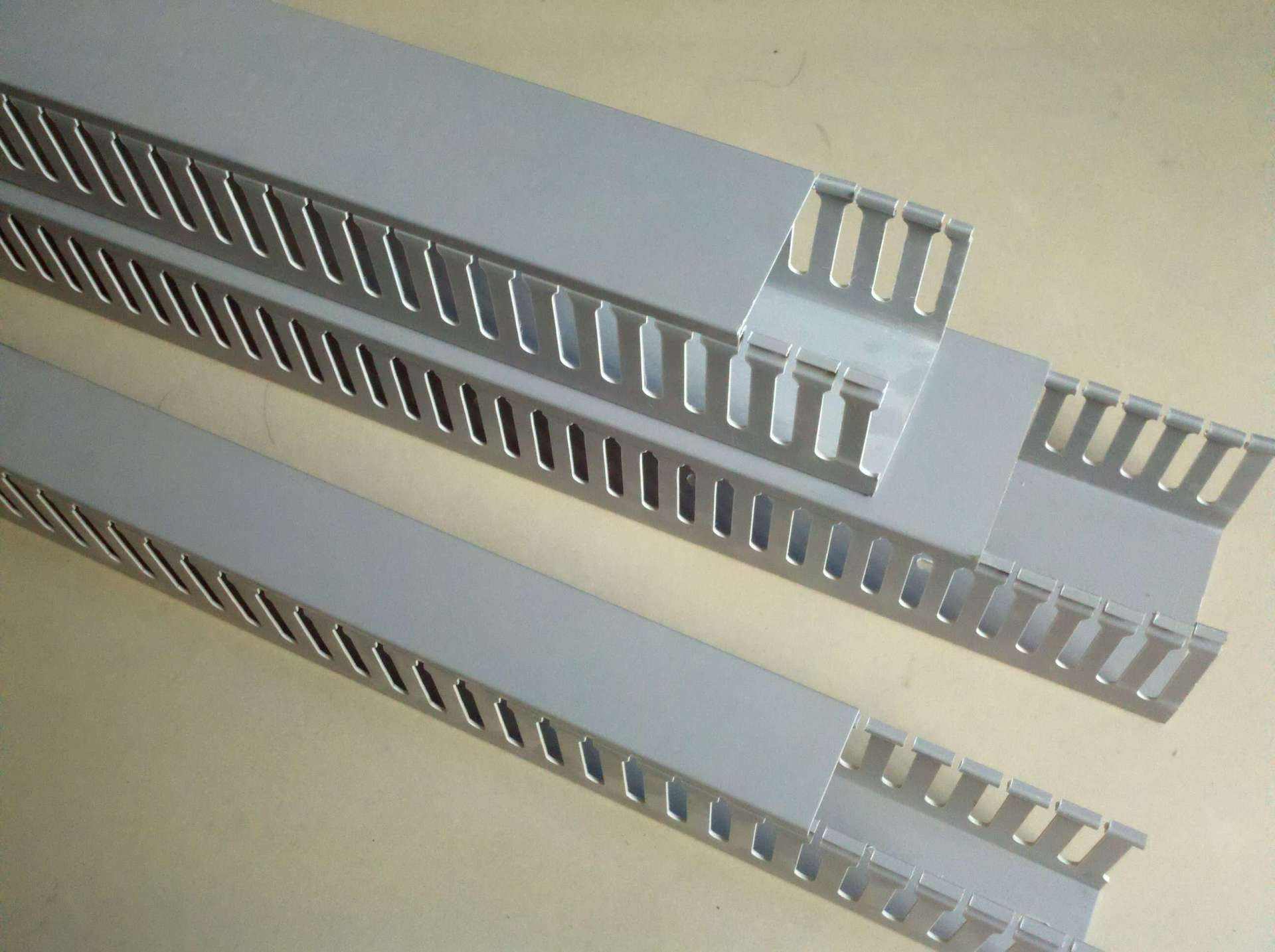

This line is mainly used in process pvc cable trunking, pvc wiring duct.

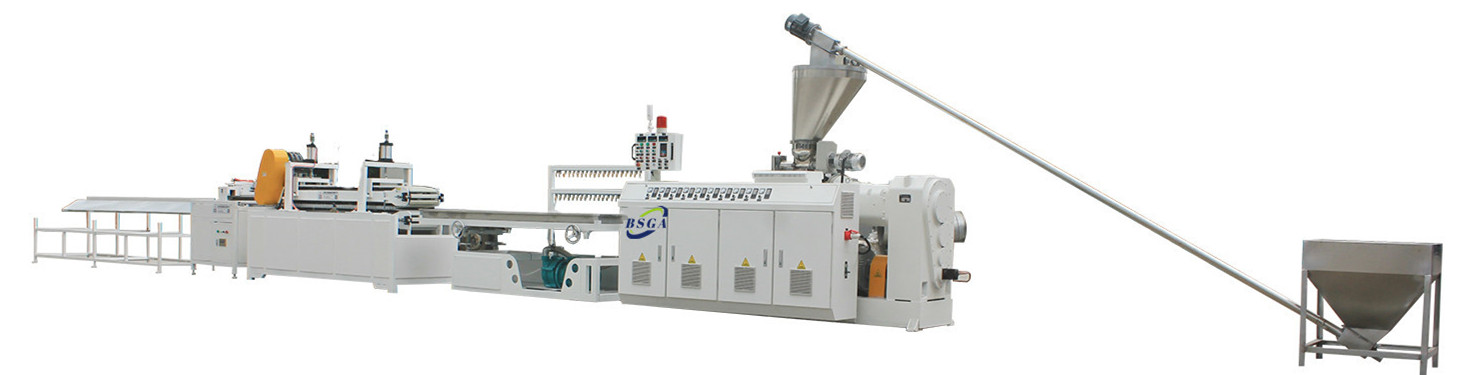

The unit is composed of conical twin-screw extruder, vacuum shaping table, hall-off machine, cutter, laminator, turning-up flame and others. According to the different profile’s section and moulds, you can choose different specifications of extruders to fit.
生产线型号Model | YF210 |
最大型材宽度Max. product width(mm) | 210 |
真空定型台长度Vacuum shaping length(mm) | 2800 |
牵引速度Draw speed(m/min) | 0-8 |
锯片直径Cutting saw Dia. (mm) | 400 |
总功率Total power(kw) | 9.2 |
整条生产线长Length of line(m) | 15.5 |
整条生产线宽度width of line(m) | 1 |
