Automatic pe blow bottle machine 398 Favorites

Product Categories: Extrusion Blow Molding
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB: USD $/Set	HS Code:
Loading Port：

Foshan Sentis Equipment Co.,Ltd
Company type： Manufacturer	Credit：
Main products：

Get Quotation

Model	Scj 55-40k2x2.2d
Air Comsumption(m³/min)	0.32 M³/Min
Air Pressure(Mpa)	0.8 Mpa
Warranty	1 Year
Warranty of core components	1 Year
Extruder Motor Power(kW)	11 Kw
Screw L/D Ratio	23
Mold Platen Size(Width)(mm)	250 Mm
Clamping Force (kN)	27
No. of Screw Heating Zone	3
Dimension(LWH)	3130x2100x1930
Output (kg/h)	32 Kg/H
Mold Platen Size(Height)(mm)	320 Mm
Weight (T)	4.4
Screw diameter (mm)	55 Mm
Screw Heating Power(kW)	6 Kw
Certification	Ce Iso
After-sales Service Provided	Field Maintenance And Repair Service, Field Installation, Commissioning And Training, Free Spare Parts, Video Technical Support, Online Support
Local Service Location	None
Showroom Location	None
Plastic Processed	Pe, Pp, Hdpe, Pc, Abs, Pvc, Eva, Pa
Core Components	Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Video outgoing-inspection	Provided
Machinery Test Report	Provided
PLC Brand	Siemens
Automatic	Yes

Contact Supplier

To：	GUO
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Type:	extrusion blow molding machine
Model:	SCJ 55-40K2X2.2D
Material:	PE, PP
Suitable for:	box,barrels, tank,hollow plate, tube, ball, etc.
Warranty:	1 Year
Features:	No. of station: 2
	No. of die head: 1
	Extruder diameter:55/40mm
	Max clamping distance of mould:330mm
	Min clamping distance of mould:130mm

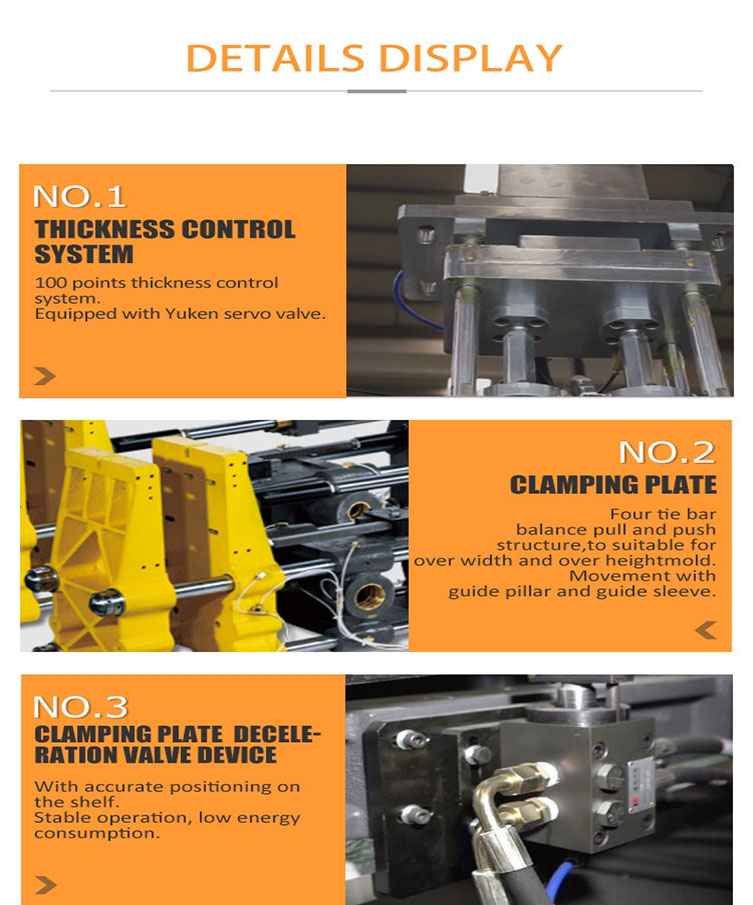

	Thickness control system

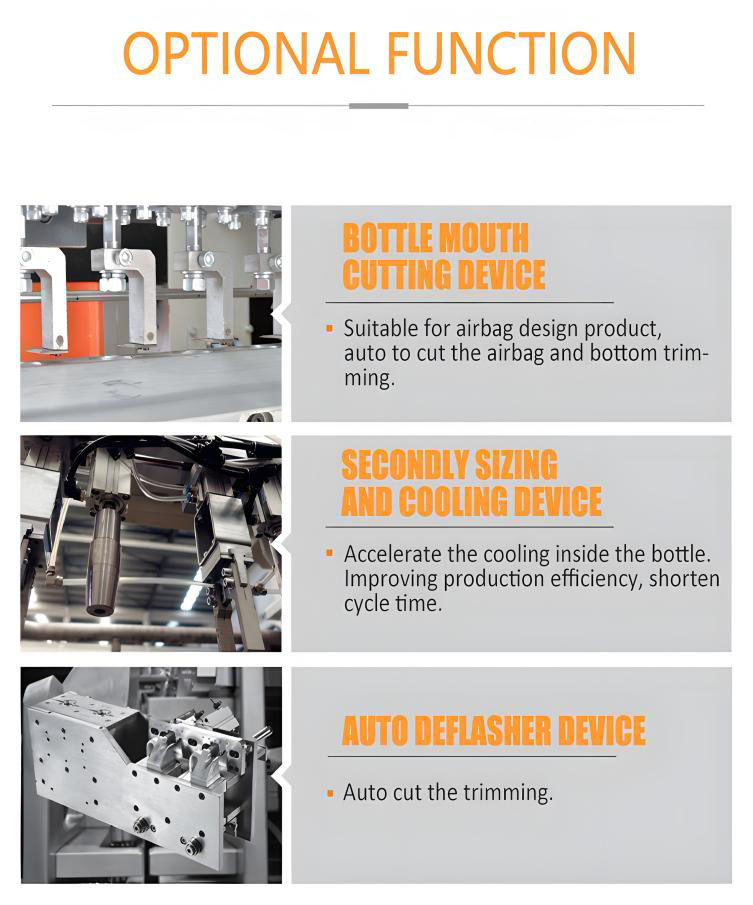

	Machine customization
