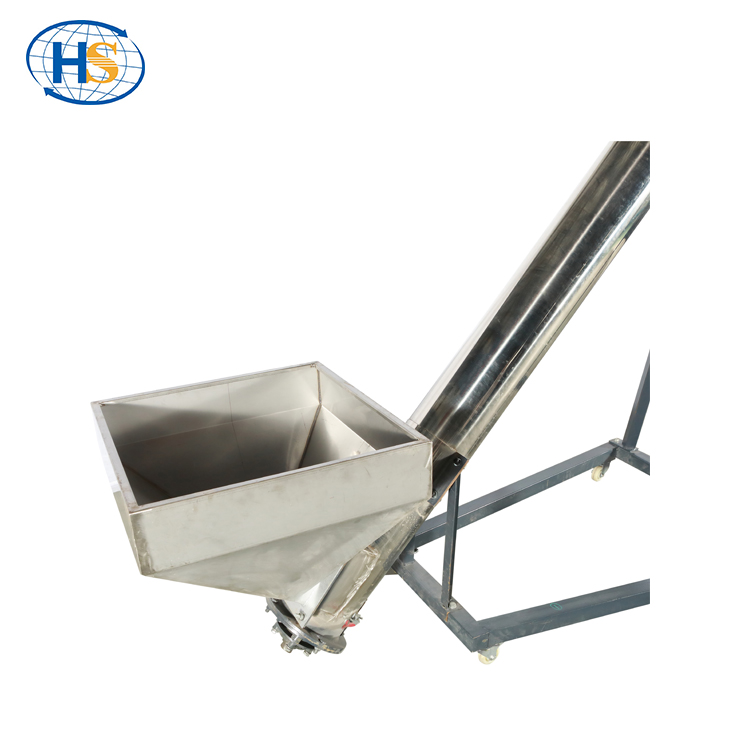

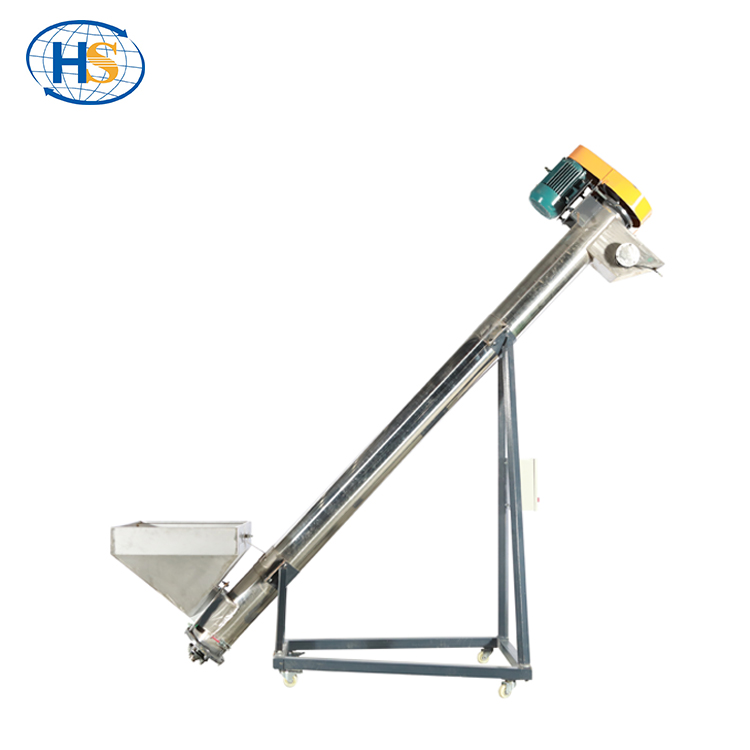

Features of screw loader/screw conveyor
![](image?tid=25&id=VItiaqHPvNbG&cache=0&lan_code=0)

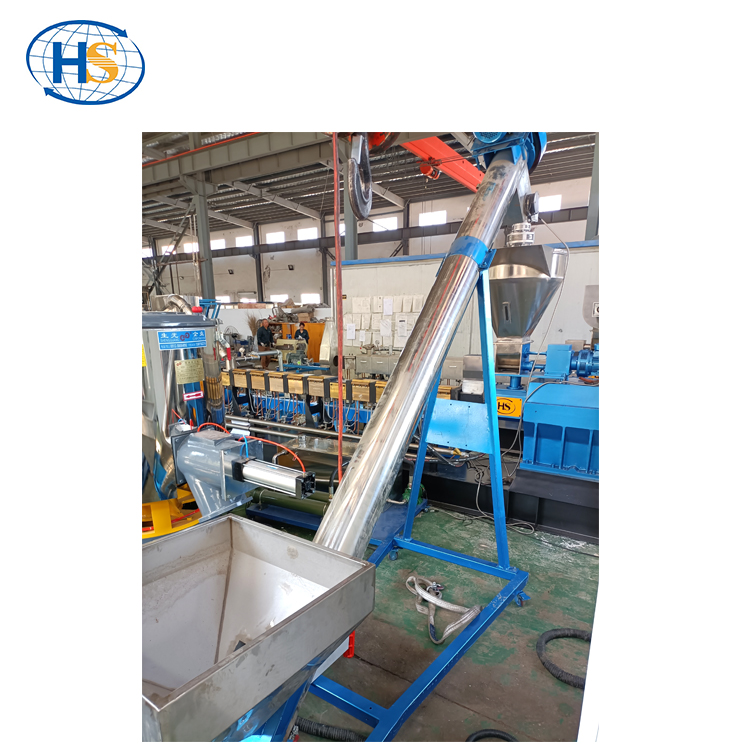

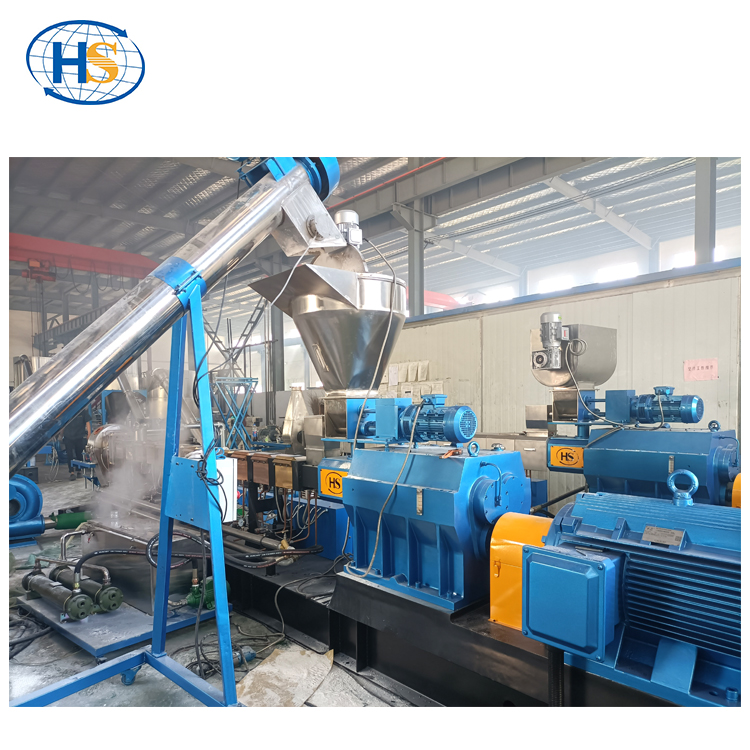

This machine can be combined with all sizes of extruder, high-speed mixer to feed powder or granules automatically. It provides the advantages of high automatic degree, fast loading, labour saving, safe and reliable performance ![](image?tid=25&id=WDElajLGvFbR&cache=0&lan_code=0)
![](image?tid=25&id=VIElTmPWYyof&cache=0&lan_code=0)
![](https://www.lookingplas.com/storage/files/FLSMjAyMy8xMi8yMy8wMDAw!!2a84d76c36c145e2bc9083c3aeb27c8e.jpg)
Technical data of screw loader/ screw conveyor
Specification
|
ZD-600
|
ZD-1000
|
ZD-2000
|
Power
|
380V
|
380V
|
380V
|
Conveying electrical machinery power
|
1.1 KW
|
1.5KW
|
2.2KW
|
Duct diameter
|
76mm
|
102mm
|
120mm
|
Conveying capacity
|
600kg/h
|
1000kg/h
|
2000kg/h
|
Container capacity
|
80kg
|
150kg
|
200kg
|
Container dimension (L*W*H)
|
65*65*80cm
|
100*75*80cm
|
120*80*80cm
|
Weight
|
80kg
|
150kg
|
200kg
|
