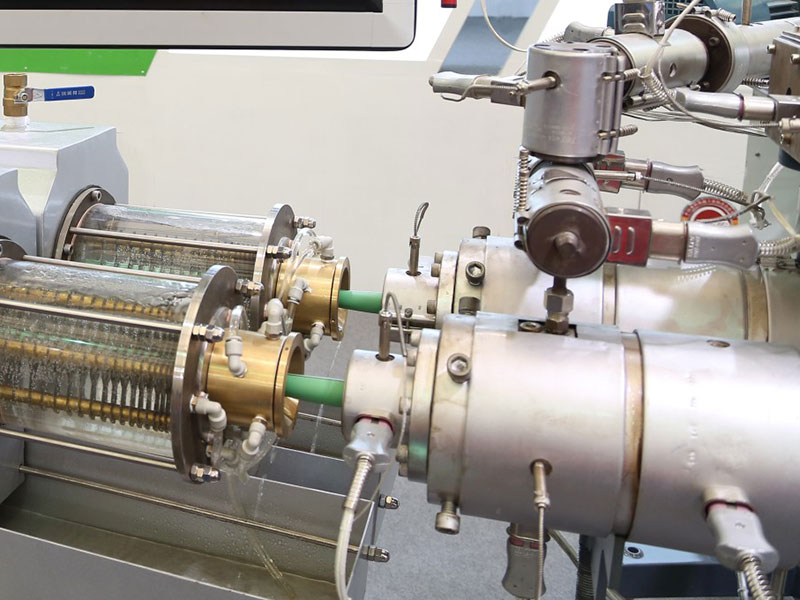

According to the characteristics of PE PE-RT and PP RM PP PB PA materials, an efficient single and double outlet pipe production line was designed. The production line adopts the high-efficiency single-screw extruder produced by our company and controlled by Siemens PLC. The whole production line is automatically controlled from the extruder to the downstream, with high productivity and stable performance.
| model |
diameter |
Extruder model |
output（Kg/h） |
power（KW） |
| SZY-PPR-63（Single issue） |
20-63 |
SZY65 / 33 |
250-300 |
140 |
| SZY-PPR-63（Double exit） |
20-63 |
SZY60 / 38 |
350-400 |
160 |
| SZY-PERT-32(High-speed single output) |
16-32 |
SZY60 / 38 |
300-380 |
140 |
| SZY-PERT-32（Double exit） |
16-32 |
SZY60 / 38 |
350-400 |
160 |
| SZY-PE/PERT-63（Double exit） |
20-63 |
SZY60 / 40 |
400-450 |
180 |
| SZY-PPR-110 |
20-110 |
SZY60 / 40 |
400-450 |
200 |
| SZY-PE-110 |
20-110 |
SZY60 / 40 |
400-450 |
200 |
