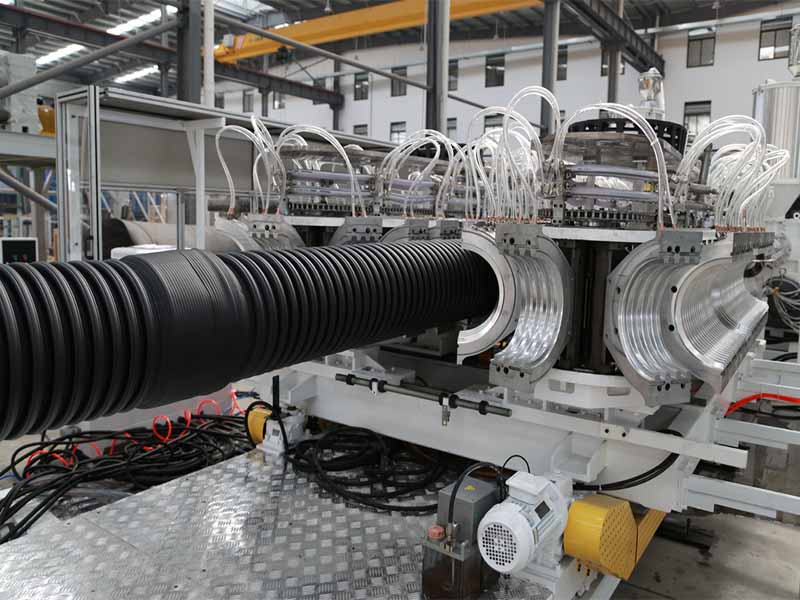

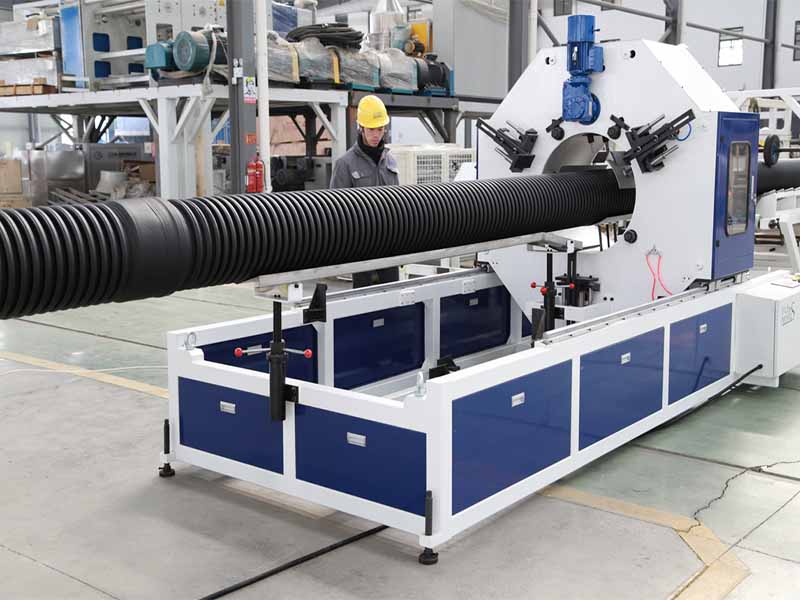

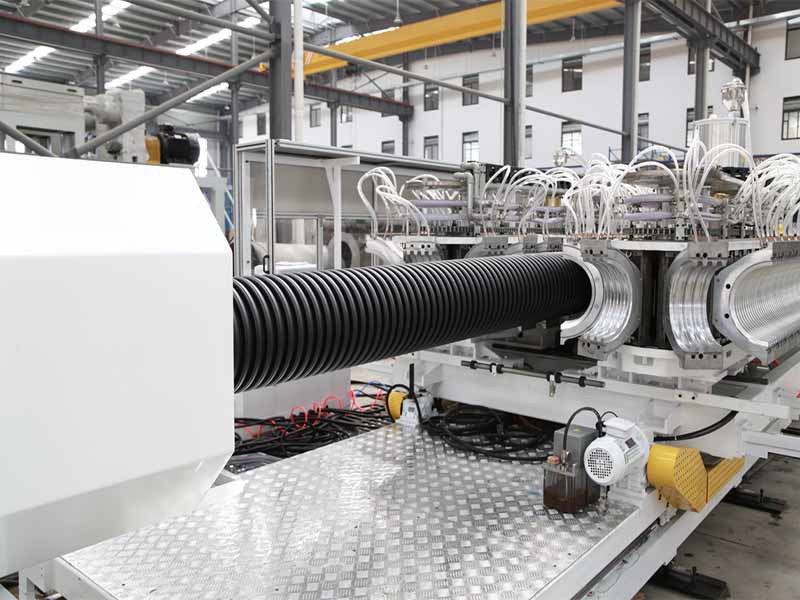

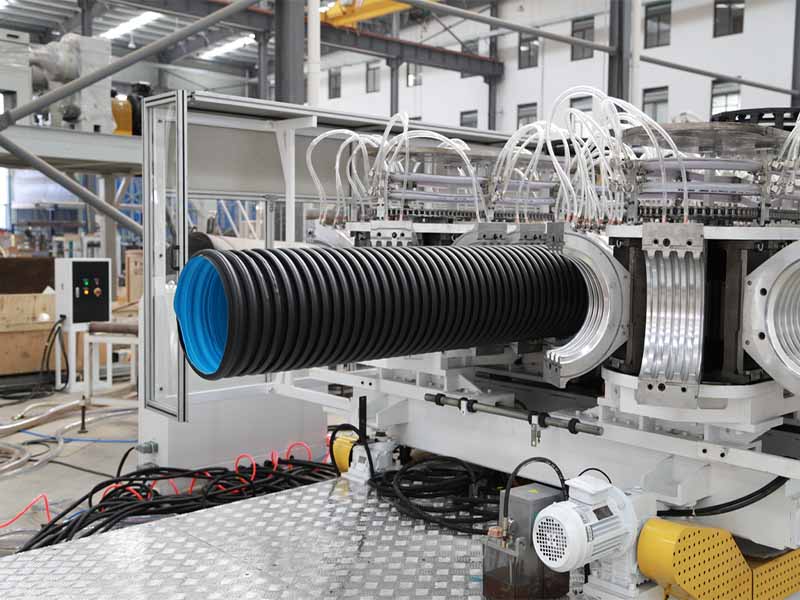

Double-wall corrugated pipe is mainly used for drainage system. It is a computer-controlled production line. It has the characteristics of high and stable output capacity and high degree of operation automation. PE and PP can choose high-efficiency single-screw or twin-screw extruder; For PVC, conical twin screw extruder or parallel twin screw extruder can be selected. The molding system consists of a mold and a molding machine. Mold blocks can be easily replaced, and they are cooled by high-pressure water. Online automatic double-wall flaring cutting machine can ensure high-precision cutting. The production line can also be equipped with Siemens PLC system.
Technical data of horizontal molding machine |
model |
caliber(mm) |
PVC extrusion capacity(kg/h) |
HDPE extrusion capacity(kg/h) |
Maximum speed(m/min) |
aggregate capacity(KW) |
SZYHBW-300 |
100-300 |
650 |
600 |
6.5 |
400 |
SZYHBW-500 |
150-500 |
800 |
1000 |
6.5 |
580 |
SZYHBW-1000 |
200-1000 |
1300 |
1900 |
3.5 |
610 |
SZYHBW-1200 |
600-1200 |
1400 |
2000 |
1.5 |
800 |
SZYHBW-1500 |
1000-1500 |
|
2300 |
0.8 |
900 |
