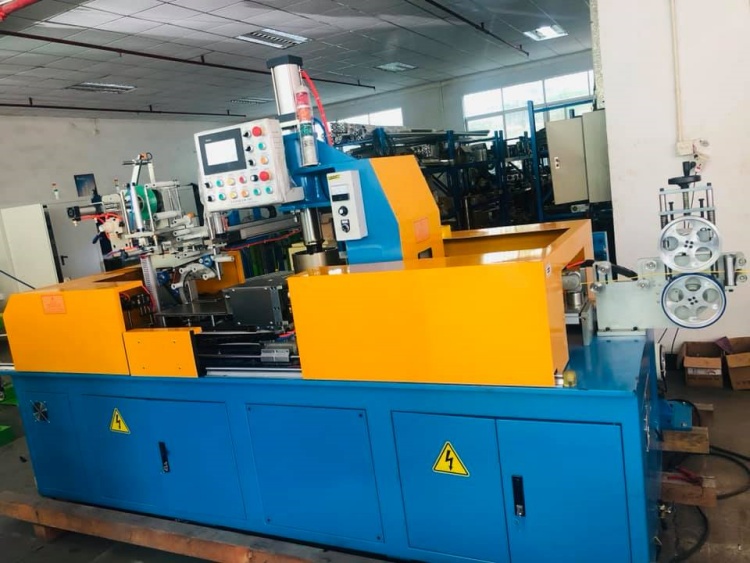

V1040 Automatic micro-computer coiling and wrapping machine

Technical parameters

1. Application: This equipment is suitable for cable automatic coiling and wrapping, which would be packaged into a coil and can be connected to the cable extrusion machine for linkage use.
2. VC1040 full automatic coiling and packing integrated machine

50. Power supply: AC380V, three-phase, 50Hz, or designated by the customer.
50. Air source: compressed air pressure is 5-7kg/cm³
50. Operation direction: Left or right side(Can be customized)
50. Wire type: Φ3.0-Φ8.0mm wire (BV1.5-6) mm², BVR2.5—10mm²).
50. Speed of coiling head: 900 RPM max
50. Linear speed: 2 to 2.5coils/min, When 100m/coil, the line speed is max 200m/min,
50. Coil size: OD Φ400mm max* height: 40-100mm;
50. The inner diameter of coil: Φ140-Φ200mm (fixed size), or customized.
50. Delivery coil way: holding type.
50. Pneumatic clamping coiler
50. Door cutter: double cutter pneumatic automatic cutting
50. Coiling head: air pressure up and down, automatic opening and closing
50. Label: Use stacked label arrangement
50. Meter counter: 0.01M , and the automatic reduce speed and the automatic rolling process when reach set length.
50. Traverse device: servo motor, which is synchronized with the main machine.
50. Siemens programmable control (PLC)
50. The operation panel adopts Delta HMI
50. Low voltage electrical equipment: Schneider
50. Switches on the operation panel: touch screen, speed control button and emergency switch,etc.
50. The speed can be adjusted on the touch screen or on the speed adjusting button.
50. PLC reserve port for spark tester to connect.
50. PLC reserve port for diameter gauge to connect.
50. Drive motor: 7.5HP x 4P AC motor + vector control inverter.
50. Traverse motor: 400W servo motor + servo driver
50. Wire holding arm: 400W motor + driver
50. Dimensions:L3220*W1582*H2031mm
50. Total weight: 1800kg

3. Features

50. Can work with extruder directly or pay off directly.
50. After coiling can pack films and stick the label.
50. This machine with automatic fault monitoring function,will give alarm to operators.
50. This machine caoacity is 7 times of manual coiling and packing.
50. Adopting servo motor traversing system,can make coils with goods surface.
50. PLC can memorize 99 kinds of different wires specification,when you changing the wire size,only read the data in the PLC,
50. no need input again,can produce immediately.
