UL1581 Electric Wire and Cable Burning Testing Equipment Flammability Test Equipment 172 Favorites

Product Categories: Tests on raw material
Packaging Details:Wooden package	Trademark:GC
Certification: ISO9001:2008,
Payment Terms： T/T,
FOB: USD $5100/Set	HS Code: 9031809090
Loading Port：Guangzhou

Guangdong GuangCe Instrument Technology Co.,Ltd
Company type： Manufacturer	Credit：
Main products：plastic physical properties, mechanics, environmental reliability, aging, and flame retardant testing instruments

Get Quotation

Contact Supplier

To：	Ren Rui
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

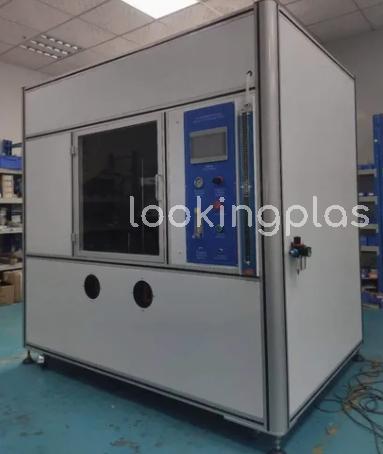

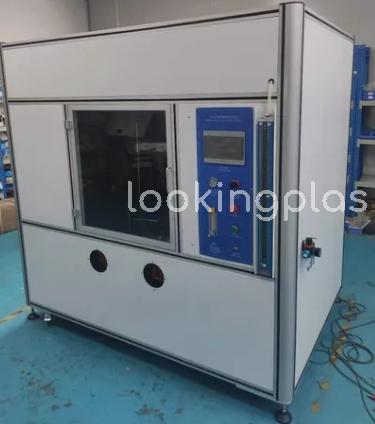

Product Name	UL1581 Wire and Cable Burning Test Machine
Box volume	≥4.0 m³. There are lights in the box and the system is controlled by a switch or a switch outside the box
Timer	0-99 minutes and 99 seconds can be set, and the minimum resolution is up to 0.01s

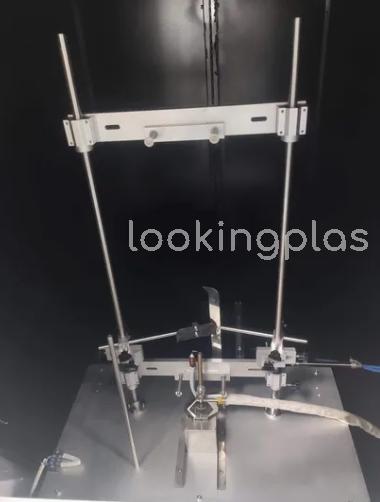

Main fixtures	Test stand and burning torch
Test stand	Made of SUS304 stainless steel, divided into FT2 horizontal bracket and VW-1/FT1 vertical combustion test stand
Combustion blow torch	Imported blowtorch, meet the requirements of ASTM D5025-05
Standard power	500W
Diameter of fire nozzle	0.90±0.03mm
Length of fire nozzle	1.60±0.05mm
Inner diameter of nozzle	9.5mm
Height of nozzle from air inlet	100mm±10mm
Gas	At least 98% methane purity
Flow meter range	1000ml/min

Model	GC-UL1581
Diameter of fire nozzle	0.90±0.03mm
Standard power	500W
Name	UL1581 Wire and Cable Burning Test Machine
