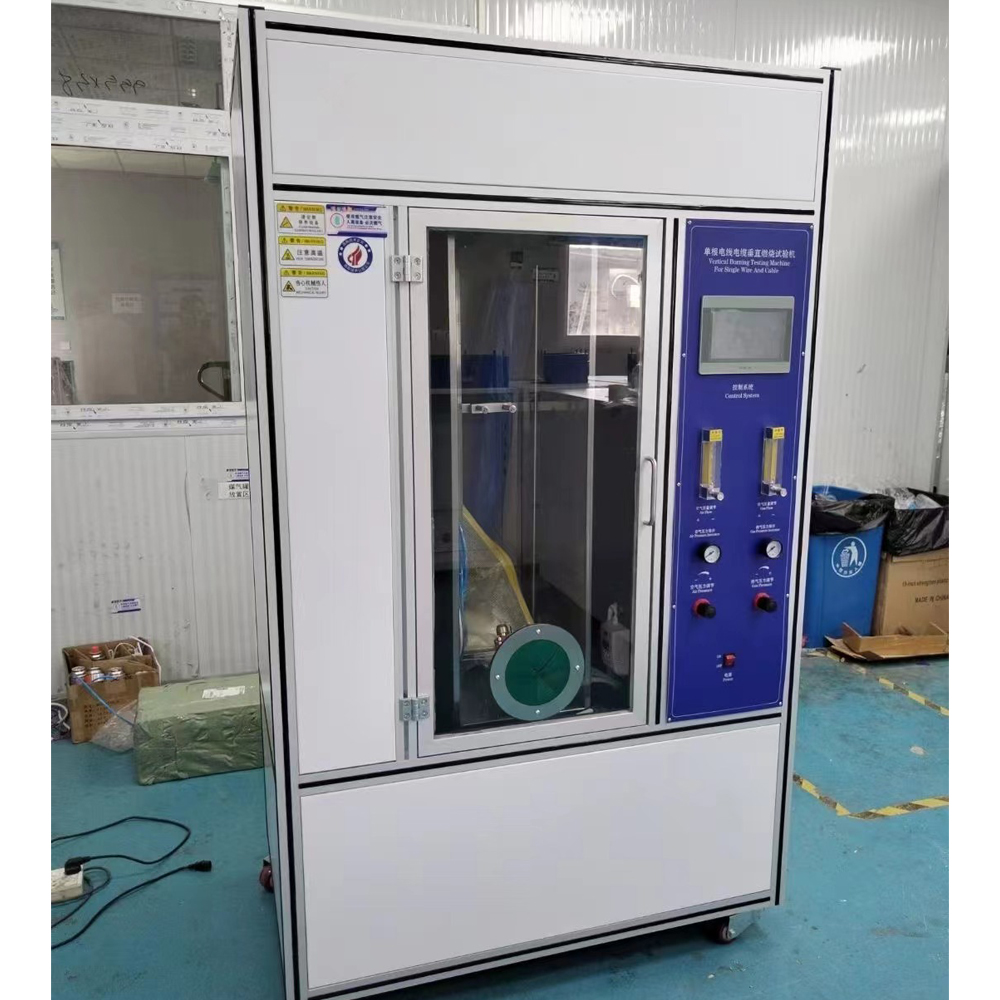

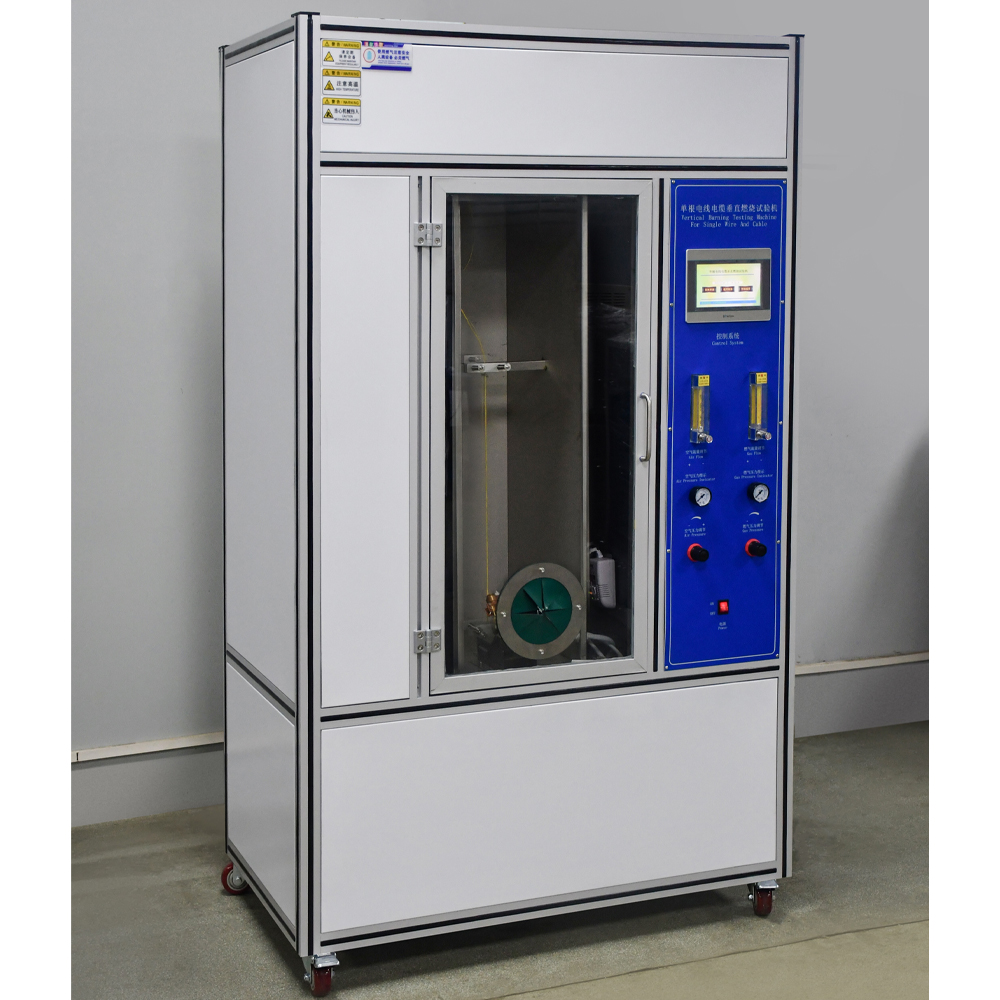

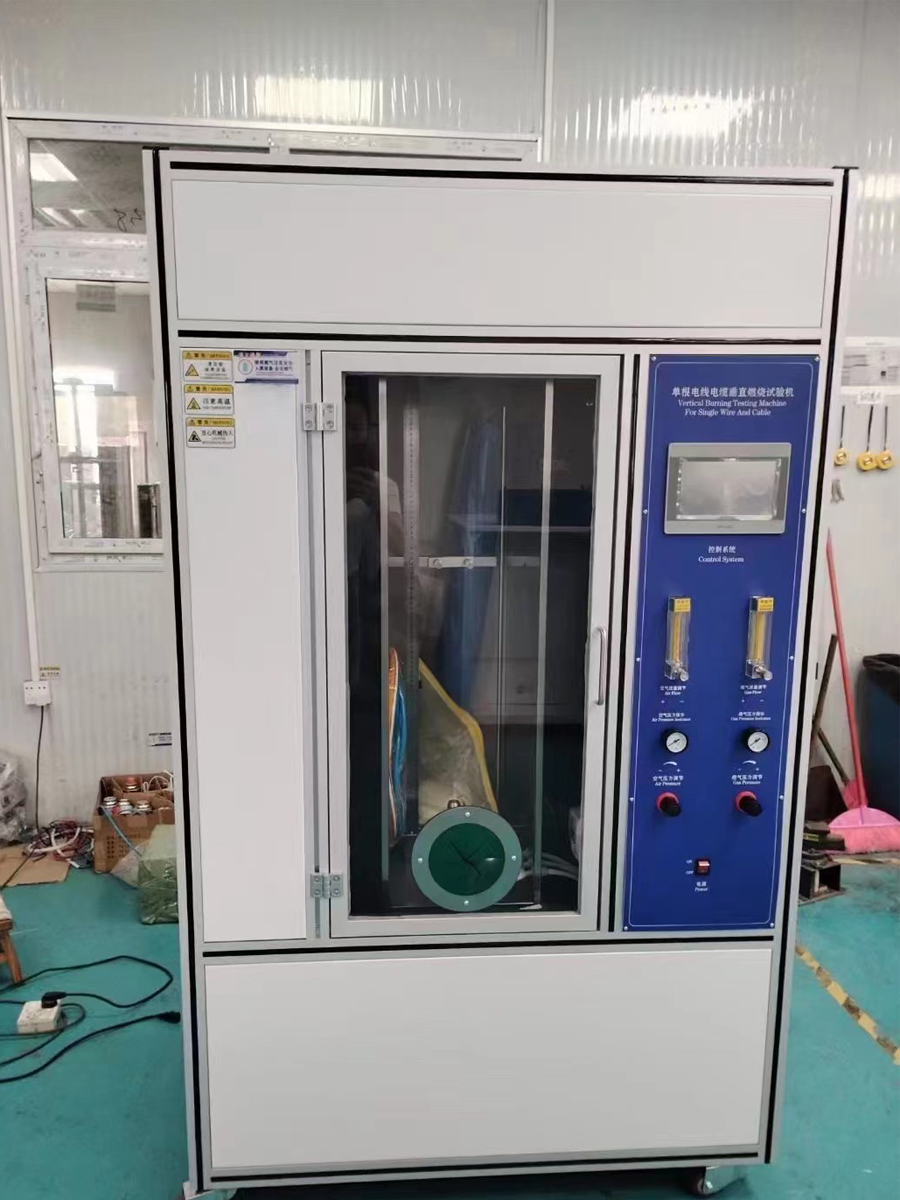

Vertical Burning Testing Machine for Single Wire and Cable
Model: GC-3062
1. Product Introduction
Single wire and cable vertical combustion test machine is suitable for testing the vertical combustion non-spread performance of single plastic wire, control wire, cross-linked, elevator, marine, mining cables, etc. It can also be used for vertical burning test of
highly self-extinguishing low-smoke, halogen-free, flame-retardant polyolefin insulating material and 105°C low-smoke,
halogen-free, flame-retardant olefin irradiated insulating material. This device is a device for carrying out the flame resistance
test on a single wire and cable. The device has the advantages of high accuracy, automatic timing, automatic end of the test, and
easy operation.
2.Standard
GB/T18380.11-2008, IEC60332-1-1:2004, GB/T 18380.12-2008, IEC60332-1-2:2004, GB/T 18380.13-2008, IEC60332-1-3:2004, GB/T18380.21‐2008, IEC60332‐2‐1:2004, GB/T 18380.22‐2008, IEC60332‐2‐2:2004, EN50265‐1, EN50265‐2‐1, GB/T5169.14‐2007 and IEC60695‐11‐2:2003.
1‐2:2003.
| Product Name |
Vertical Burning Testing Machine for Single Wire and Cable |
| Burning blowtorch |
1KW hybrid combustion nozzle |
| Gas |
Propane gas or liquefied petroleum gas with a purity of 95%. (prepared by customer) |
| Sample length |
600±25mm |
| Control function |
Using PLC touch screen intelligent control, the operation is simple, convenient and fast |
| Gas flow range |
Gas 100-1000mL/min; (use rotameter) |
