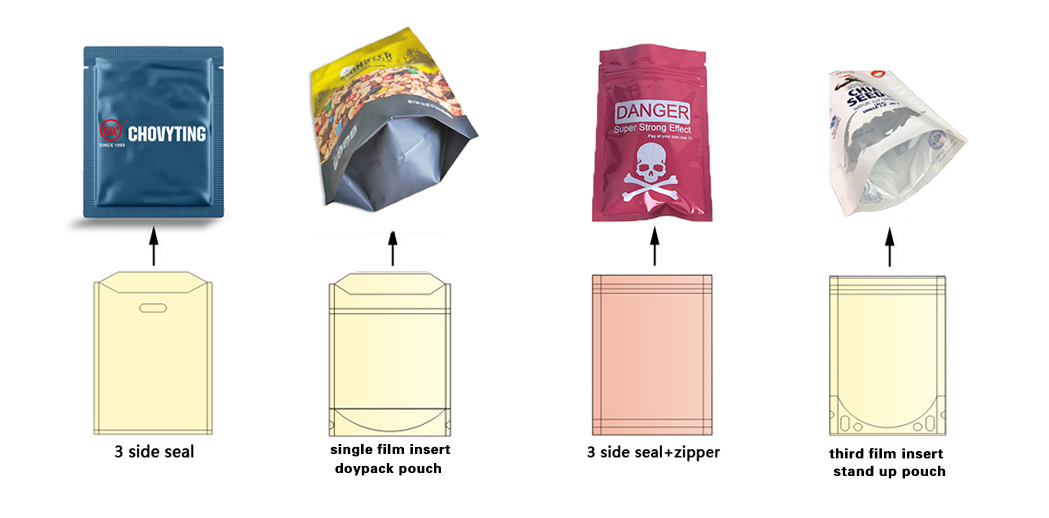

3 side sealing pouch / single film insert doypack pouch / 3 side seal zipper pouch
1. Folding, punch,bottom gusset and sealing automatic design
2. Newly design feeding structure, high speed feeding no shake
3. Special design bottom gusset device, easily to operate

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

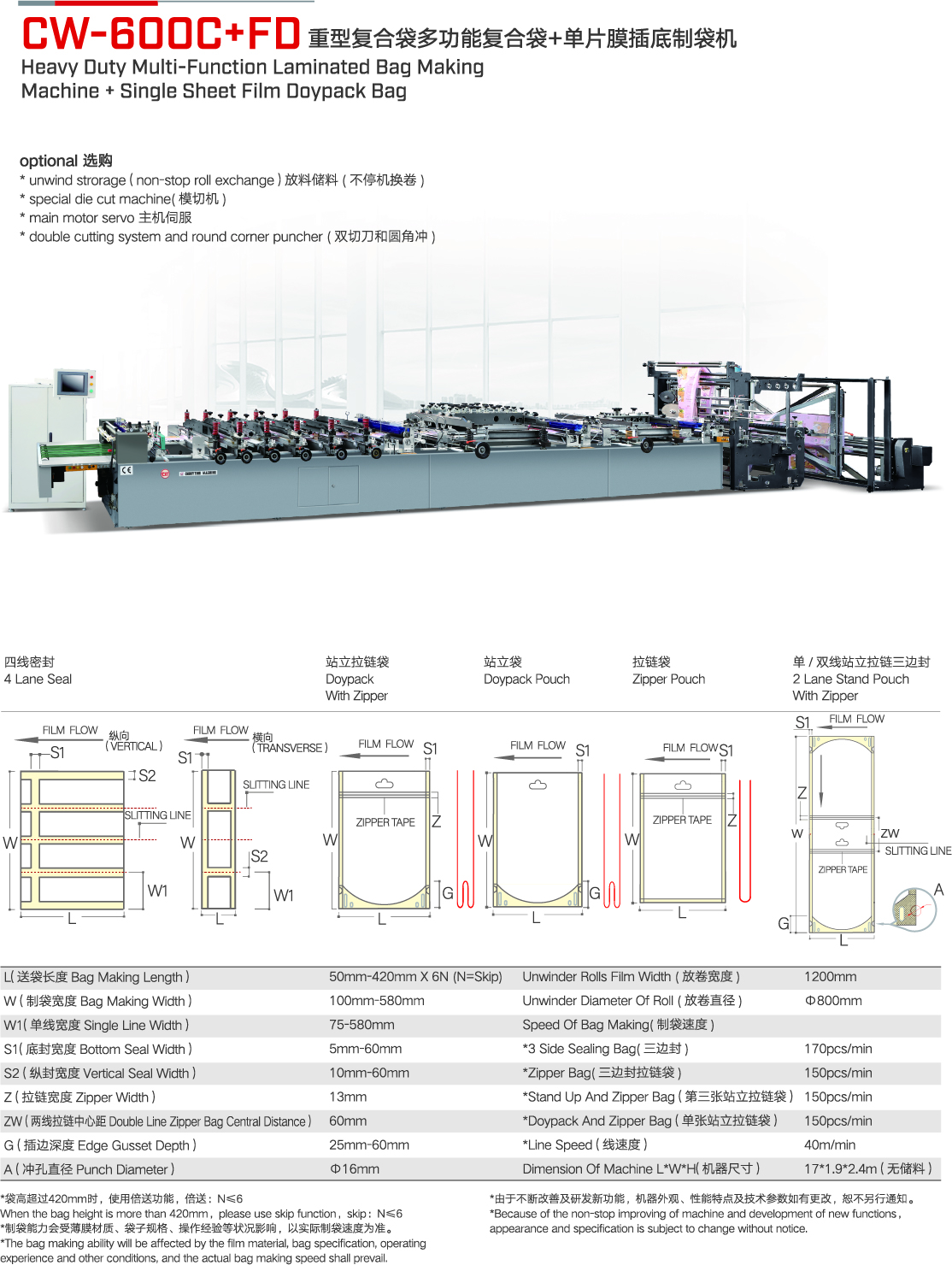

Heavy Duty Multifunction Laminated Bag Making Machine + Single Sheet Film Doypack Bag

New design for producing America laminated bag (single sheet folded stand up pouch and zipper bag, also can produce pet food bag popular from America)

Main Features

1. Folding, punch,bottom gusset and sealing automatic design
2. Newly design feeding structure, high speed feeding no shake
3. Special design bottom gusset device, easily to operate
4. Double layers unwinding design, suitable for multi-function laminated bag
5. Newly design zipper and stand up device

Optional Equipment

1. Air cylinder automatic loading device
2. Hang hole puncher

Details Images

Machine with 4pcs Servo motor(Yaskawa Japan) for film feeding, PLC (Panasonic Japan) control.Perfect choice for making stand up pouch and three side seal pouch in one machine !!

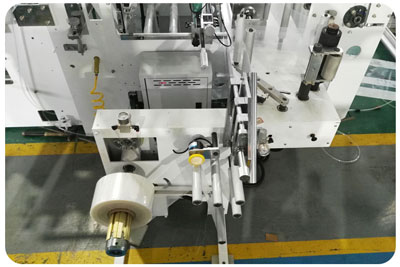

Unwinder with auto air loading, auto tension control and EPC (edge guide) Optional: double unwinder (UP and Down), standard unwind only with the down unwinder part

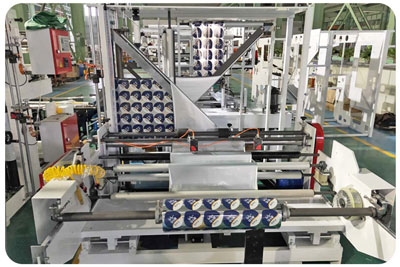

Third film inserted stand up device This device is horizontal expected level; with photoelectric tracking; with centralized control of the host computer; with the computer on pneumatic control.

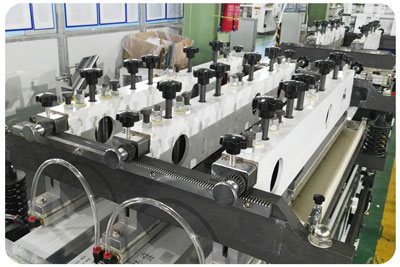

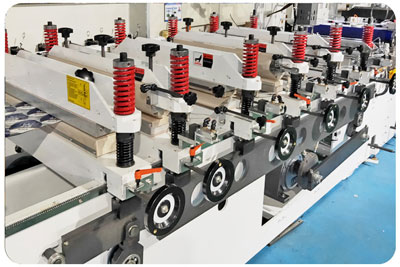

Vertical sealing device for zipper adopts 1 group for heating fluctuation. Vertical-sealing for side sealing adopt 5groups for heating fluctuation, cooling fluctuation from up and down.

bottom sealing device Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.

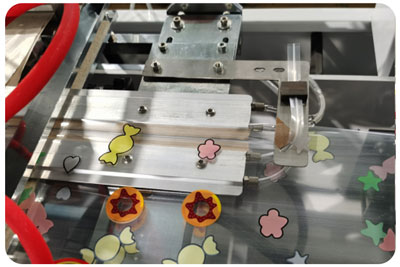

Zipper ultrasonic device photoelectric sensor with integrated control Proximity Switch

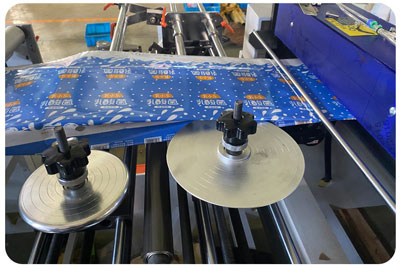

Round bottom gusset device The single film of stand up bag is folden by the device, the bottom not be cutted.

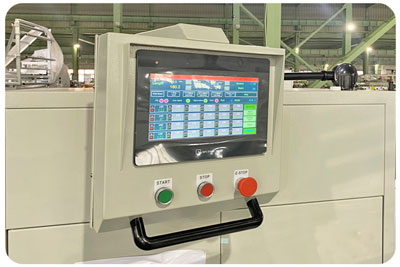

Control box The control box is in control of whole machine with PLC from Japan with an automatic human-computer interface screen.

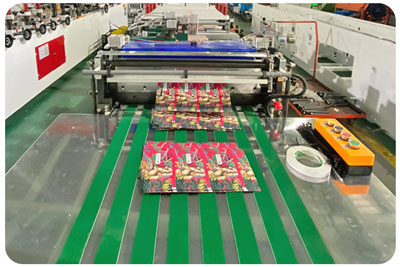

Collect table adopt automatic collecting bag feeding (intermission model and continuum model). When the bag reach to a certainty quantity, conveyor belt will move automatically, and continue producing
