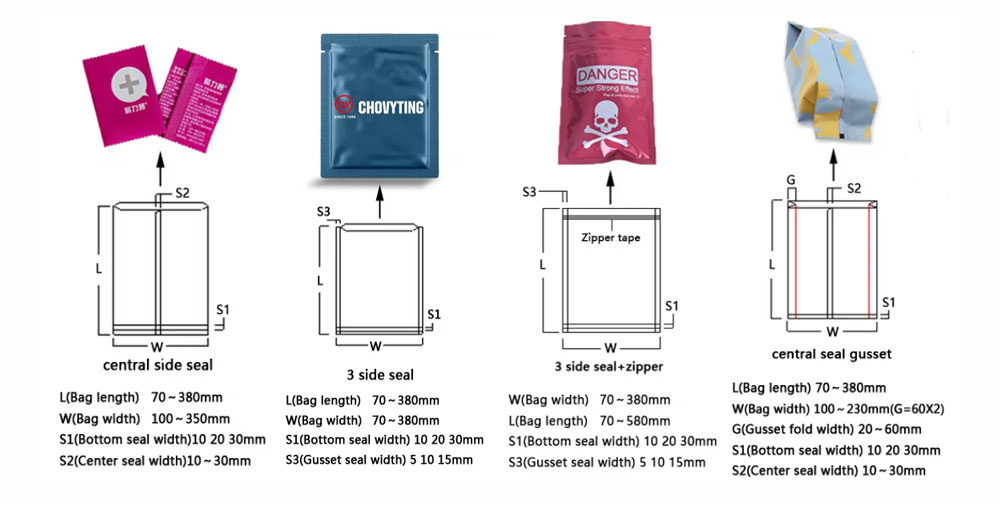

Central sealing pouch / 3 side sealing pouch / zipper pouch / central sealing gusset pouch
1. All of parameter display by touch screen.
2. It has EPC and double photocell traking from unwinding.
3. Super length size ,which has 6 times skip feeding design.
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

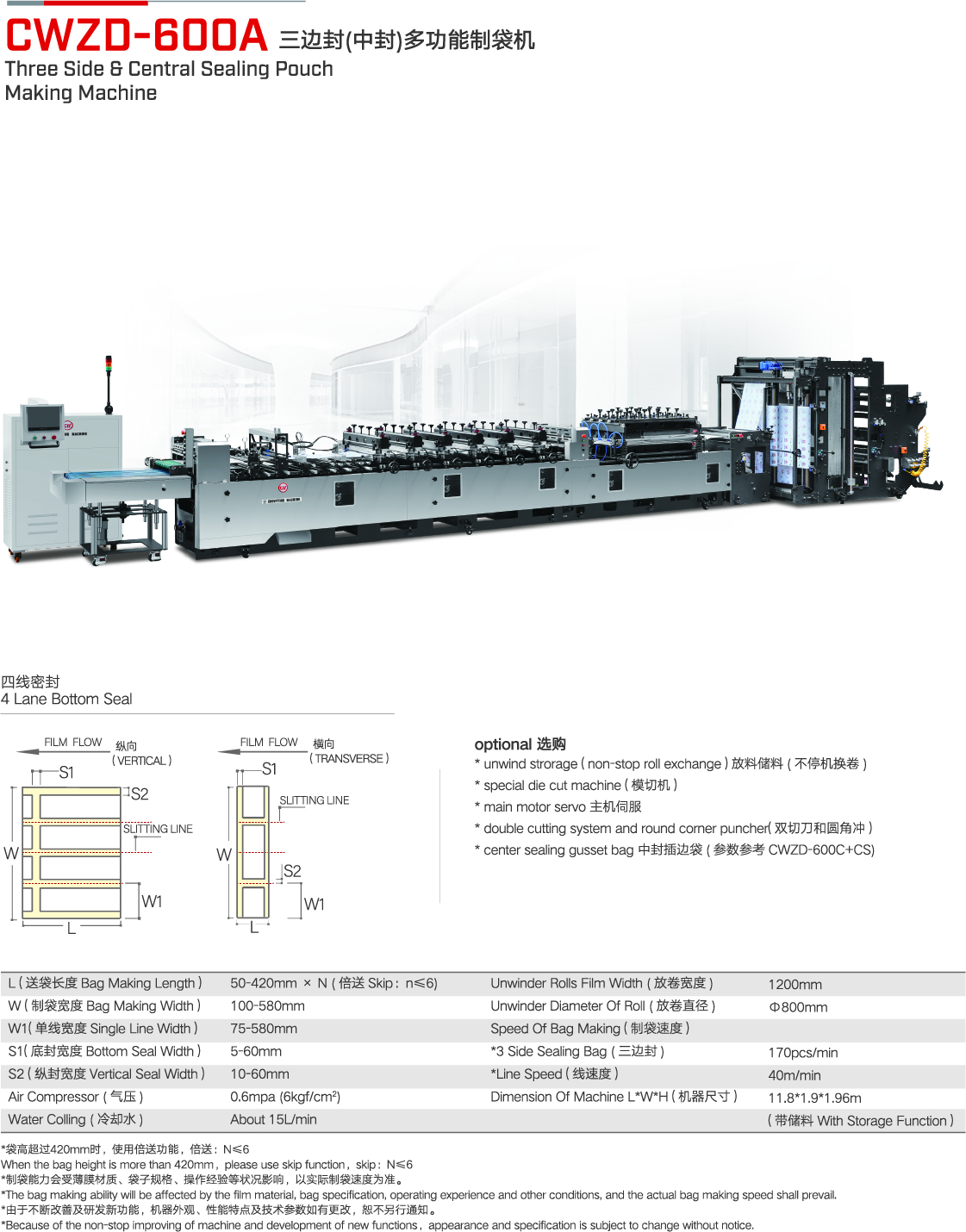

Three Side & Center Sealing Bag Making Machine
Economic type laminated film bag making machine, it is used for various kinds of laminated material, meanwhile, it also has side gusset of center sealing bag, can make four side sealing bag and five side sealing bag. (A Series don’t have zipper bag design)
Main Features
1. All of parameter display by touch screen.
2. It has EPC and double photocell traking from unwinding.
3. Super length size ,which has 6 times skip feeding design.
4. Automatic waste film rewinding unit.
Optional Equipment
1. Stand-up doy bag device.
2. Punching for handle.
3. Round angle puncher.
Details Images

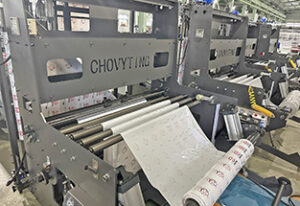

Unwind part
|
Film slitting part
|

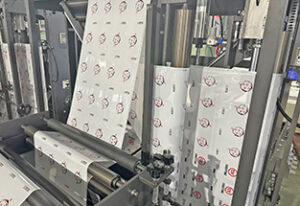

Vertical sealing bars
|

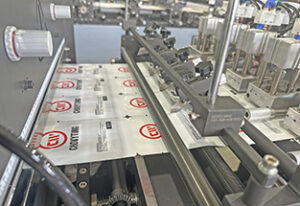

Bottom sealing bars
|
Slitting blades
|

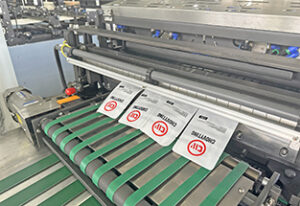

Cutting knife
|
