Four functions (soft loop handle bag, patch handle bag, poly draw handle bag and die cut handle bag)
1.Pre-sealing knife, heated on double sides and strong for fusing, to make the bags without deformation.
2.The best quality of Italian side sealing knife, Heated to high temperatures not deformation.
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001
Fully Automatic Plastic Hand Bag Making Machine [Four Functions]
This machine has four functions (soft loop handle bag, patch handle bag, poly draw handle bag and die cut handle bag). It is coupled with machinery, light, electronic and pneumatic.
Main Features
1. Flexible soft loop handle and patch film feeding system, fully automatic.
2. Pre-sealing knife, heated on double sides and strong for fusing, to make the bags without deformation.
3. The best quality of Italian side sealing knife, Heated to high temperatures not deformation.
4. Newly design of sealing knife top lift and turn over system.
5. Its designed by heating punching and it’s easy to cut off, the waster is excluded automatic.
Optional Equipment
1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
4.Triangle folding device
Technical Parameter
| Type |
CW-800ZD |
| Length of bag making |
250-750mm |
| Width of bag making |
250-600mm |
| Top folded |
50-75mm |
| Bottom insert |
20-70mm |
| Speed of bag making |
|
| Soft loop handle bag |
60pcs/min |
| Patch handle bag |
60pcs/min |
| Poly draw handle bag |
65pcs/min |
| Die cut handle bag |
80pcs/min |
| Total power |
13KW |
| Machine weight |
3500kg |
| Machine dimension |
8200X3100X1870mm |
| Air compressor (not included) |
6HP |
Details Images

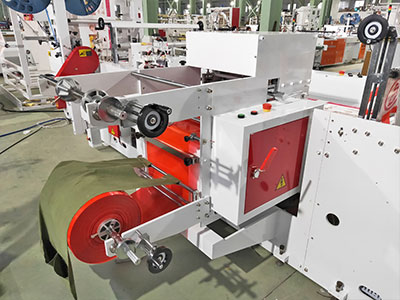

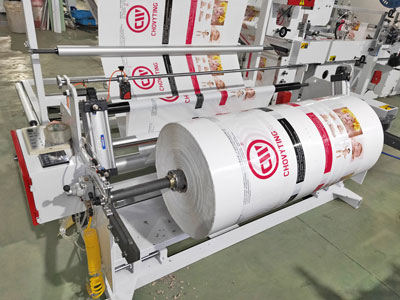

Common unwinding
1.Unwinding adopt common loading, max diameter of raw rolling material is φ600mm
2.Adopt auto tension control.
3.Unwinding with auto EPC
4.1600mm triangle folding device, which can adjustment
|

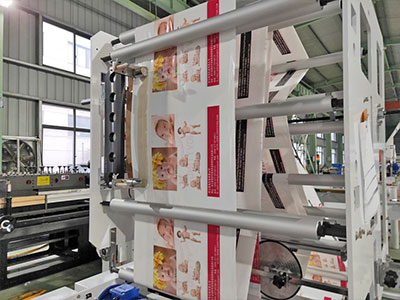

Top-folding continuously sealing device
1. Top-folding continuously sealing, the width size of bag not be limited,
2. Inside heating wire sealing, which is suitable for full colors of bag.
3. Adopt import heat wire, steady warming, hard sealing
|

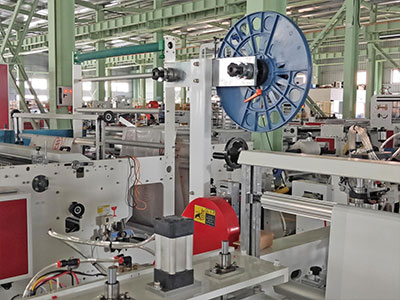

Soft loop handle bag device
1. Hydraulic skew angle feeding soft loop
2. 90 degree turnabout gear rotary soft loop
3. Special oblique drag style rotary soft loop
4. Micro-motor driver soft loop handle go forward and back off
5. Centralize style air control system
|
Soft loop handle bag device

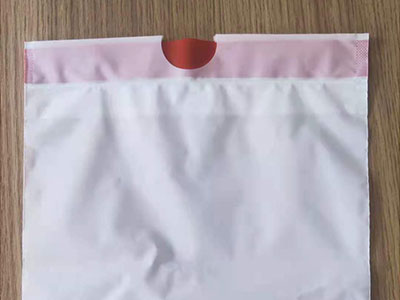

Sample bag
|
Patch handle bag device
1. Turnabout cylinder control patch
2. With flying knife cutting fast
3. Special pattern sealing mould
4. Micro-motor driver patch go forward and back off
5. Base mould of patch device adopt whole steel plate
|
Patch handle bag
Sample bag
|

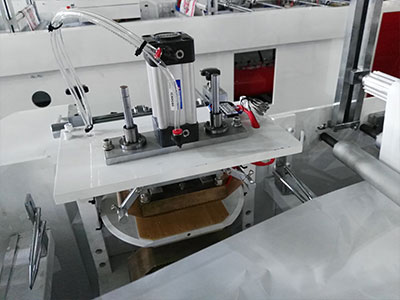

Poly draw handle bag device
1. Unwinder wiith double disc plate
2. Non-tension unwind
3. With 25mm half hole puncher
4. With poly draw tape unwind
5. With top fold sealing bar
|
Poly draw handle bag device
1. Top sealing knife for top fold film
2. The length size of knife is 9000mm
|
Poly draw handle bag
Sample bag
|

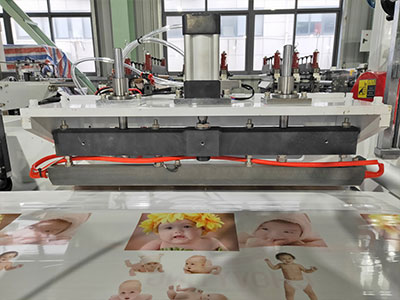

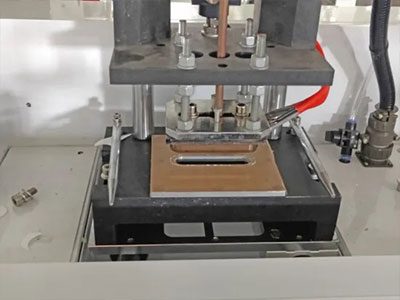

Heat sealing handle punch
1. High hardness gear steel smooth pillar
2. Air outside waster film blower hopper
3. The whole style rotary 180 degree
4. High hardness alloy aluminium puncher base plate
|
Heat sealing handle punch
Sample bag
|
Side sealing parts
1.Side sealing knife principal axis transmission belt cylinder lifting and down.2.Side sealing knife adopt best of breed material, high temperature heating ametabolic.3.Side sealing knife with concealed style heating tube, temperature steady
|
Convey collect device
1.Collect table adopt automatic collecting bag feeding (intermission model and continuum model)2.When the bag reach to a certainty quantity, collect table will move automatically, and continue producing.
|
