Zipper bag / Slider ziplock bag
1. handle puncher design.
2. double lines sealing knife and bottom sealing knife.
3. round bottom chicken device.
4. European style diaper device.

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Automatic Ziplock Bag Making Machine

This is an automatic Side sealing bag making machine to seal plastic zipper reel to Plastic film, in order to form the zipper bags with or without slider head. Special design of PE zipper bag making machine, fully automatic produce,the operation with more simplify design.

Main Features

1. unwinding with air cylinder loading.
2. low friction top fold and bottom gusset device.
3. easy operation zipper heat sealing device.
4. heavy duty side seling knife,easy clean .
5. with multiterm automatic warming,automatic stop device.
6. new design liquid crystal screen, with 5 kinds of language choose.

Optional Equipment

1. handle puncher design.
2. double lines sealing knife and bottom sealing knife.
3. round bottom chicken device.
4. European style diaper device.

Technical Parameter

Details Images

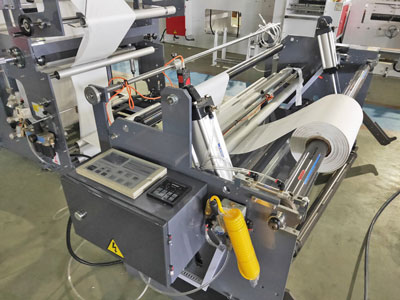

Automatic hydraulic loading unwinder 1.The max.diameter of the unwinder is 600mm, the unwinder shaft adopt plug-shaft 2.Unwinder with EPC device 3.Manual magnetic power tension control

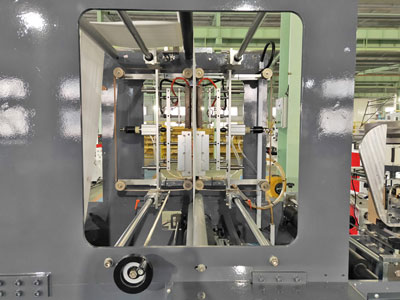

Zipper sealing part Special for sealing zipper with high temperature.

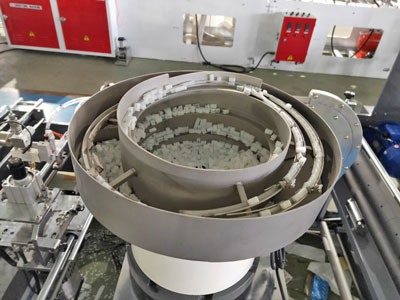

slider head feeding applicator & ultrasonic crusher The ultrasonic unit is for making the zipper seal well.

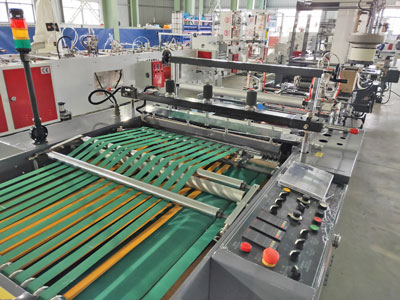

Heavy duty side sealing knife Sealing and cutting part 1.Side sealing knife principal axis transmissionbelt cylinder lifting and down. 2.With water cycle cooling system. 3.With concealed style heating tube, temperature steady
