punch handle bag / flower bag / OPP bag / side seal bag / double lines side seal bag / bottom seal bag
1. Single sheet folding unit.
2. Top folding continuously sealing device
3. Jumbo roll automatic lifting device
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Automatic Side Weld, Bottom Weld, Double-weld Bag Making Machine

This machine is multi-function bag making machine. Fully automatic production, easily operation.

Main Features

1. Heavy-duty frame design, high-speed production is not vibration
2. Special sealing blade design, exchange quickly and easily
3. Feeding motor automatic control, trouble free operation.

Optional Equipment

1. Single sheet folding unit.
2. Top folding continuously sealing device
3. Jumbo roll automatic lifting device
4. Auto.collection device
5. Chicken bag puncher device
6. Sealing device (for producing DHL bag)
7. Perforation line device
8. OPP header bag (with pearlized film)
9. Adhesive tape adding device

Technical Parameter

Detailed Images

Automatic hydraulic loading unwinder 1.The max diameter of the unwinder is 600mm, the unwinder axle adopt plug-shaft. 2.Unwinder with EPC device. With photocell, Manual magnetic power tension control 2.5KG. 3.Feeding traction is controlled by AC motor, automatic adjust the speed.

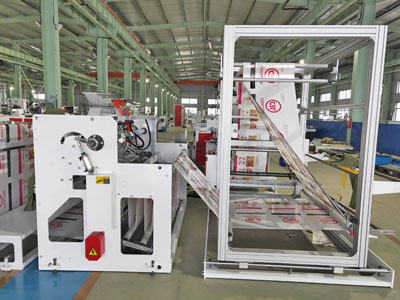

Triangle folding device Equipped with Triangle folding device 1600mm (edge folding device,which can fold the big single sheet film into 2 layer smaller folded film).

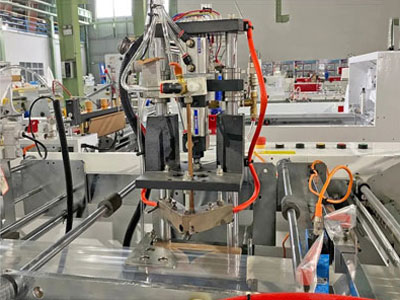

Chicken Bag Device 1.Heat sealing Chicken bag puncher device by air cylinder. 2.2 pcs hole punch from top of bag

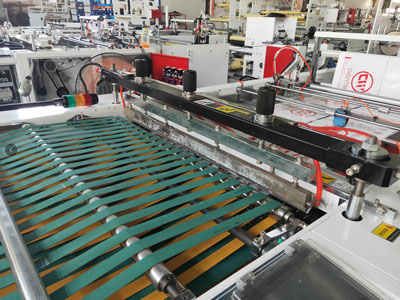

Side Sealing knife 1.Side sealing knife with water cycle cooling system, principal axis transmission belt cylinder lifting and down. 2.Side sealing knife adopt best of breed material, high temperature heating ametabolic. 3. Bottom sealing /side sealing knife, humanism structure design easy to cleaning.

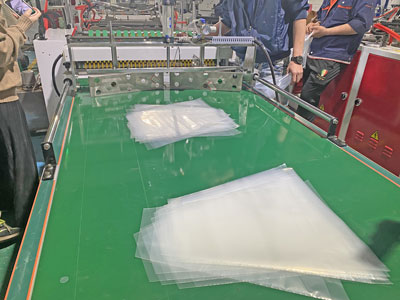

Automatic Collect Table 1. Collect table adopt automatic collecting bag feeding (intermission model and continuum model). 2.When the bag reach to a certainty quantity, collect table will move automatically, and continuo producing. 3. Collect table is driven by Micro-motor reducing servo.
