Specially designed machine for producing pull cotton draw string bag .
Fully automatic knotting system.
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001
Fully Automatic Knotted Cotton Drawstring Bag Making Machine
Model CW-800ATR is specially designed machine for producing pull cotton draw string bag with fully automatic knotting system. The automated knotting of cotton cords is the key system in the machine. Meanwhile wicket collecting system is available to be add to the standard machine for improve production capacity.
Technical Parameter
model |
CW-800ATR |
CW-800CRK |
woking width |
90-600mm |
200-500mm |
roll diameter |
1000mm(max) |
1000mm(max) |
diameter of drawstring |
1.2-
1.5mm |
3-6mm |
bag height |
200-650mm |
250-650mm |
bottom fold |
30-70min |
30-100mm |
film |
LDPE,BOPP |
LDPE |
film thickness |
0.04-
0.12mm |
0.05-
0.1mm |
line speed |
40m/min |
35m/min |
speed of bag making |
100cycles/min |
60cycles/min |
machine dimension |
12000*2000*1950mm |
10500*3500*1900mm |
Details Images

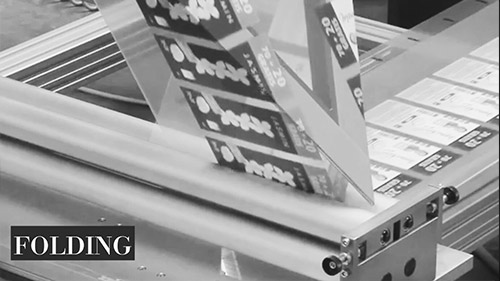

Unwinder+Folding
Hydraulic lift unwinderAutomatic tension controlEPC system & triangle folder
|

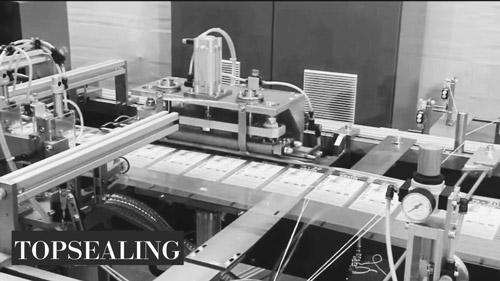

Top sealing
|

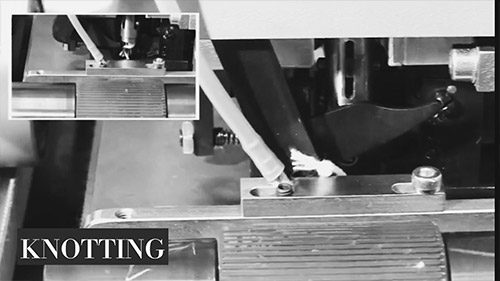

Knotting
exclusive technology of knotting
|

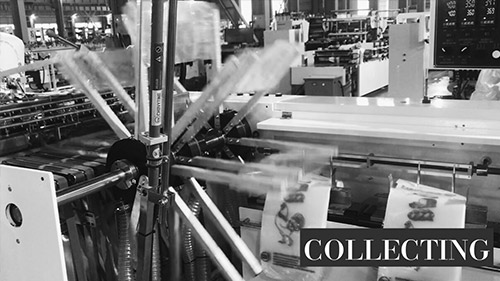

Collecting
To save human labor cost of collecting bags & enables the machine to run at high speed. The length of arms can be extended for wider bags by customization.
|
