Super High Speed Automatic Soft Loop Handle Bag Making Machine

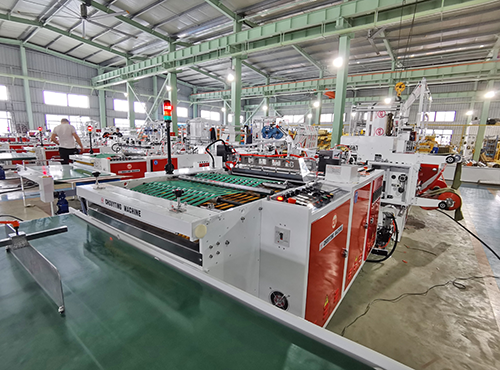

CW-800CSD Super High Speed Automatic Soft Loop Handle Bag Making Machine
Newly designed super high speed soft loop handle bag making machine, shows the top level of technology and driving of servo motor.Meanwhile, the high capacity re-positioning the standard of market, it pays more attention to quality and its economical.CHOVYTING has more than 10 years’ experience of manufacturing soft loop handle bag.
Main Features
1. 3 pcs servo motor drive from soft loop handle device.
2. The new design of bag stack and speed down conveyor system.
3. Special design of new type side sealing knife cooling and lifting device
4. Top-folded sealing knife adopt continuously heating sealing
5. With printing tracking photocell use Datalogic, from Italy , suitfor higth speed tracking.
6.With printing tracking photocell use Datalogic, from Italy.
Optional Equipment
1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
4.Triangle folding device
| Model |
CW-800CSD |
| Length of bag-making（Height of bag） |
250-700mm |
| Width of bag-making |
250-800mm |
| Top-folding edge |
50-75mm |
| Bottom gusset |
20-60mm |
| Speed of bag-making |
|
| Soft loop handle bag |
120pcs/min |
| Patch handle bag |
|
| Poly draw handle bag |
|
| Die cut handle bag |
140pcs/min |
| Total power |
10KW |
| Machine weight |
3000kg |
| Machine dimension（LxWxH] |
7x
2.2 x
1.95m |
Details Images
 |
 |

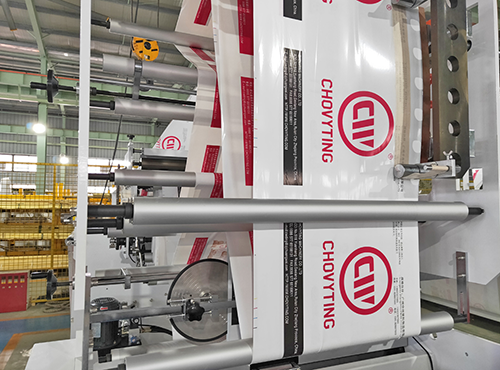

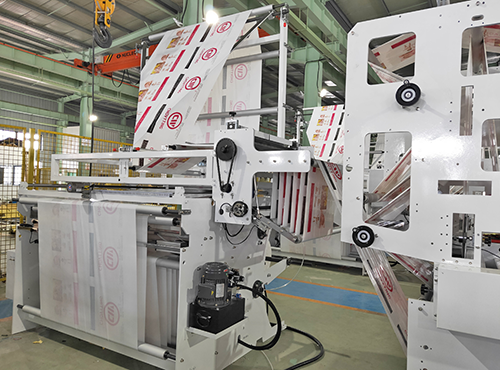

Unwinding Part
Unwinding adopts AC motor-driven active unwinding, design of large roll diameter reduces the number of shutdowns.Automatic EPC correction device is attached to unwinding.
|
 |
 |
Bottom Gusset and Top folding
The disc structure is used for bottom insertion operation.The bottom inserting disc adopts a telescopic mobile design, and the bottom gusseting is smooth and accurate.
|

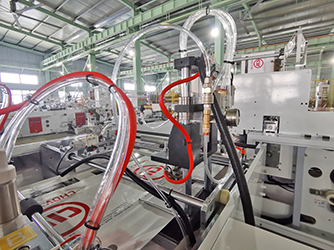

Top fold continuous sealing part
The top fold is continuously sealed, the bag width is not limited, and there is no overlap of the sealing line joints.The internal heat-generating seal is also suitable for full-page printing.
|
 |
 |
 |
High-speed soft hand-held part
The soft hand-held conveying mechanism is driven by 3 servo motors, which is suitable for high-speed production.
|
Hand punching part
The punching adopts a two-stage double-stroke structure design, which increases the punching speed and is suitable for high-speed bag making.
|

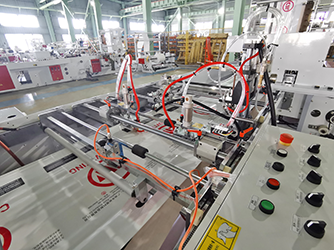

Sensor and Presealing
The color code electric eye adopts the German (SICK) photoelectric eye, which has zero failure and accurate sealing and cutting size.
|
 |
 |

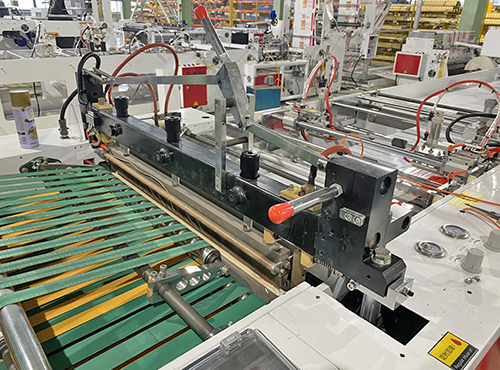

Side sealing knife and conveyor belt part
The side sealing knife has an automatic lifting function, which drops when starting up and rises when stopping.
|
Collection table part
Equipped with automatic horizontal collection table, with optional intermittent conveying and continuous conveying functions.
|
