soft loop handle bag / patch handle bag / die cut handle bag
1 The design of soft loop handle and patch handle in the same side, fast exchange the type of bag
2 Soft loop handle device with 3 pcs servo motor drive (PATENT)
3 The rotary device of patch handle drive by servo motor (PATENT)

Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001

Fully Automatic High Speed Handle Bag Making Machine

Specially design new machine, it is only used for making soft loop handle bag and patch handle bag ,and die cut handle bagCW-800SDP multi functional high speed plastic shopping handle bag making machine manufacturer

Brief introduction :

Specially design new machine, it is high output bag machine used for making soft loop handle bag, patch handle bag and D CUT handle bag.

Feature:

1.The design of soft loop handle and patch handle in the same side, fast exchange the type of bag
2.Soft loop handle device with 3 pcs servo motor drive (PATENT)
3.The rotary device of patch handle drive by 2pcs servo motor
4.Top folding continuous sealing design, the sealing length not be limited (PATENT)
5.The new design of bag stack and speed down conveyor system.(PATENT)

Optional equipment

1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
4.Triangle folding device

Model	CW-800SDP
Length of bag-making	250-700mm
Width of bag-making	250-600mm
Top-folding edge	50-75mm
Bottom gusset	20-80mm
Speed of bag-making
Soft loop handle bag	100pcs/min
Patch handle bag	100pcs/min
Poly draw handle bag
Die cut handle bag	120pcs/min
Total power	18KW
Machine weight	3600kg
Machine dimension（LxWxH]	10x 2.2x 1.95m

Details Images

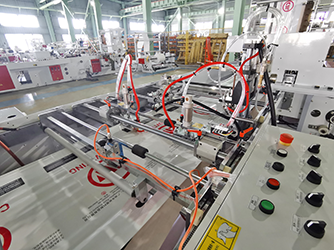

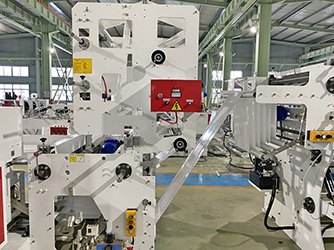

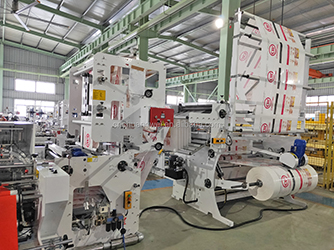

Unwinding Part	Bottom Gusset and Top folding	Top fold continuous sealing part

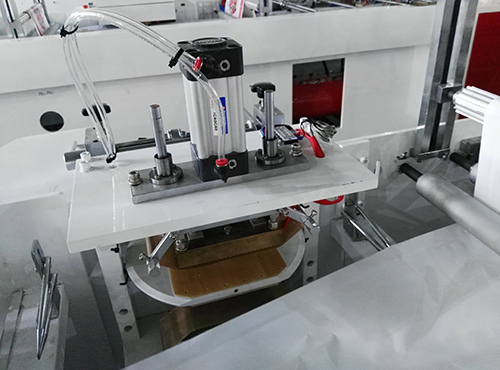

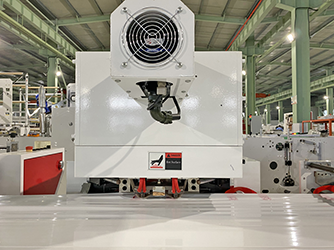

High-speed soft hand-held part	High-speed Patch part	Sensor and Presealing

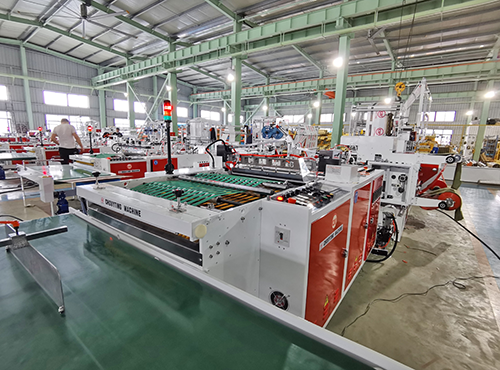

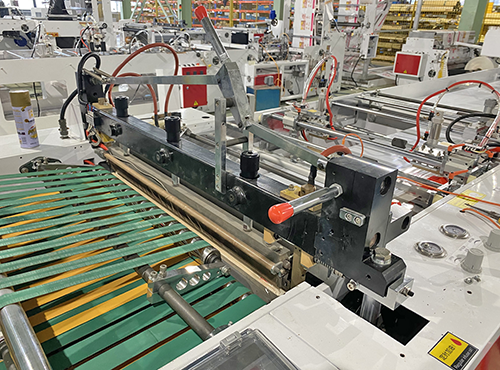

Side sealing knife and conveyor belt part	Collection table part
