Fully Automatic Soft Loop Handle Bag Making Machine
This machine has 2 functions (soft loop handle bag, die cut handle bag). It is coupled with machinery ,light ,electronic and pneumatic800LP high speed 2 function soft loop handle / die cut punching handle shopping bag making machine
l Brief introduction
This machine has 2 functions (soft loop handle bag, die cut handle bag). It is coupled with machinery, light, electronic and pneumatic.
Optional
1.Single sheet film fold unit(hydraulic auto loading device)
2.Double sealing knife device
3.Bottom sealing knife device
4.Triangle folding device
| Model |
CW-800LP |
| Length of bag making |
250-750mm |
| Width of bag-making |
250-800mm |
| Top-folding edge |
50-75mm |
| Bottom gusset |
20-70mm |
| Speed of bag-making |
| Soft loop handle bag |
80pcs/min |
| Patch handle bag |
|
| Poly draw handle bag |
|
| Die cut handle bag |
80pcs/min |
| Total power |
10KW |
| Machine weight |
3200kg |
| Machine dimension（LxWxH] |
8.2x
3.1x
1.87m |
Details Images
 |
 |
 |

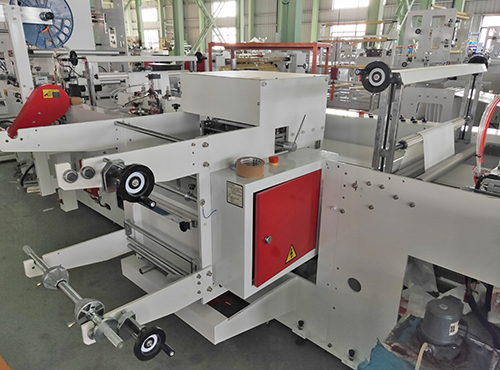

Unwinding part
Automatic EPC correction device is attached to unwinding.
|

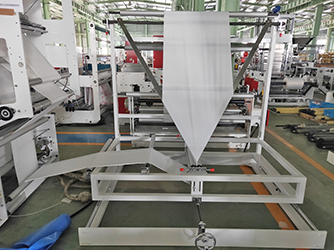

Triangle folder
Independent triangle folding rack design is convenient to move position
|
Top folding and bottom inserting part
Use thin disc structure for bottom insertion operation.
|
 |
 |

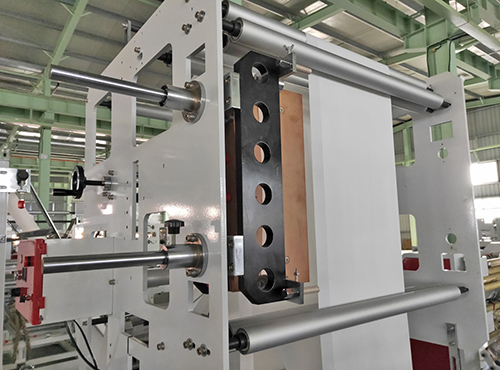

Top fold continuous sealing part
The top fold is continuously sealed, the bag width is not limited, and sealing line is smooth without any joints.
|

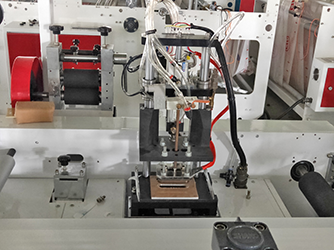

Soft loop handle attaching
The soft hand-held material unwind adopts a double-layer design, which is suitable when top and bottom material in different colors.
|
 |
 |
 |
Soft loop handle attaching
|
Hand punching part
|

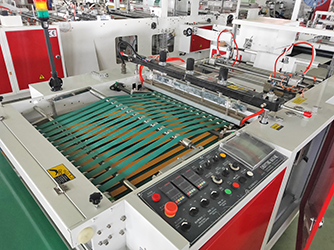

Side seal knife and conveyor belt part
|
