Heavy duty bottom sealing Bag
1. tension free
2. heating wire sealing
3. fly knife in synchronized belt for cutting
4. suitable for thick plastic film
Servo motor:Yaskawa Japan
Inverter: Yaskawa Japan
Photocell: Datalogic Itlay
PLC control: Panasonic Japan
Certification: CE/ISO:9001
Plastic Heavy Duty Bottom Sealing Bag Making Machine
This series machines are able to make large bags with width up to 1500mm, and length up to 3000m, which is usually used as garbage bag, ice bag or industrial bags for pellets packaging.
Main Features
1. Tension free
2. Heating wire sealing
3. Fly knife in synchronized belt for cutting
4. Suitable for thick plastic film
Technical Parameter
Model |
CW-800FBA |
Length of bag making |
750mm |
Width of bag making |
150-600mm |
Thickness of bag making |
0.04-0.25mm |
Distance of double sealing line |
50-90mm |
Speed of bag making |
60pcs/min |
Total power |
About 11.4kw |
Weight of machine |
2800kg |
Machine dimension(L×M×H) |
6000×1500×1420mm |
Details Images

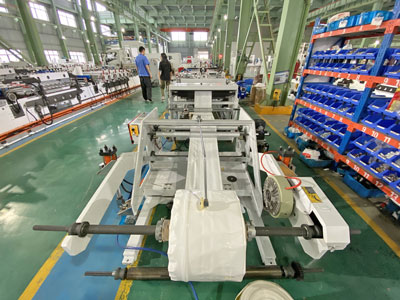

Auto loading-up device (Dia.1m)
|

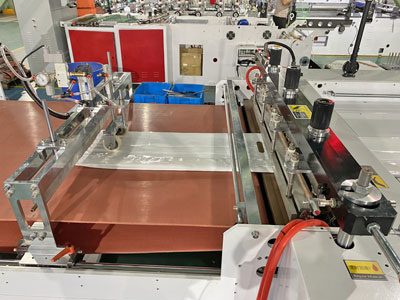

Sealing knife and cutting bag fly knife
|

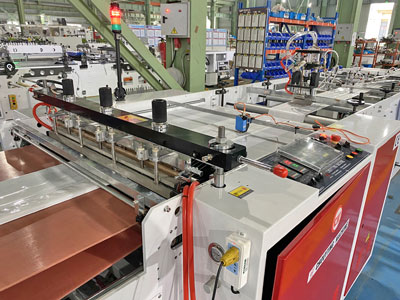

Printing image tracking and punching handle device
|

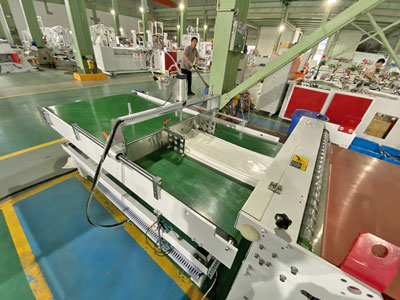

Auto counting table (optional)
|
