Product Description
PVC/WPC Profile Extrusion Lines are used to produce PVC/WPC profiles, Such as PVC window& door Profiles, Door panels etc. The production line can be equipped with suitable screws according to the customer's formulation requirements to achieve the best plasticizing capacity. The line has the advantages of high efficiency, energy saving and high cost-effectiveness.
Application：The PVC/WPC profile extrusion lines can be used for extruding PVC door and window profiles, PVC roof tiles, WPC flooring, door panels etc.
Line Main Parts
 |

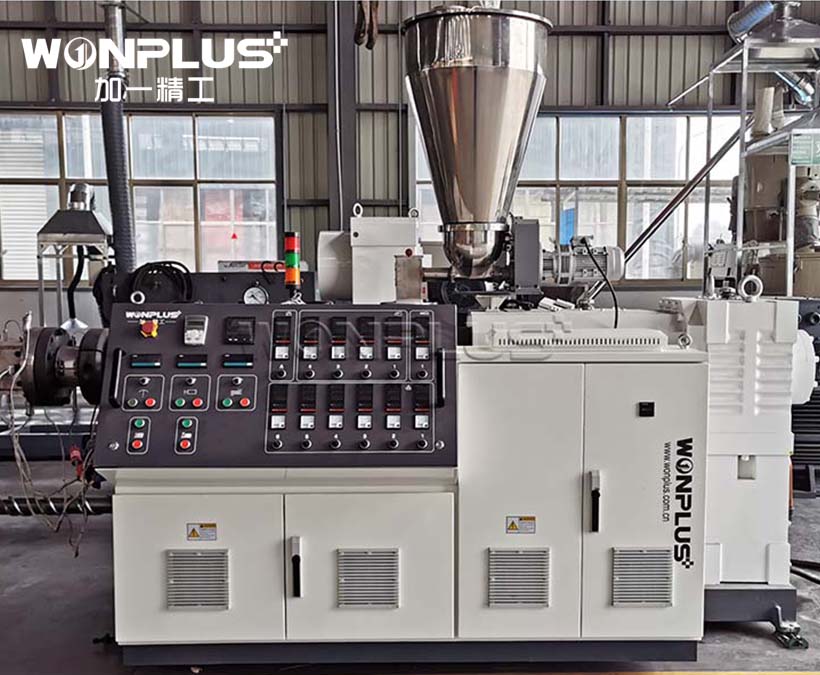

Conical Twin Screw Extruder
Driven motor: Siemens brand
Temperature control: Japan RKC, Omron, FUJI or Siemens computer
Inverter: ABB brand
Cotactor & Relay: Schneider brand
Circuit breaker: DELIXI
|
 |

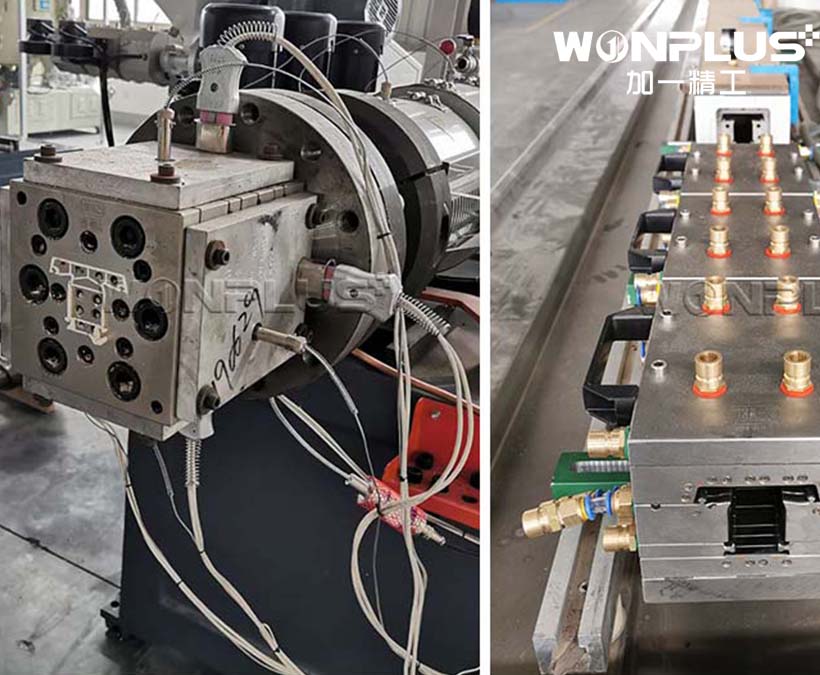

Extrusion Mould
Material: 40Cr
Calibrator: Stainless steel
The inner flow channel is plated with hard chrome, the outer surface is treated with high temperature paint, the corrosion
resistance is strong.
|
 |

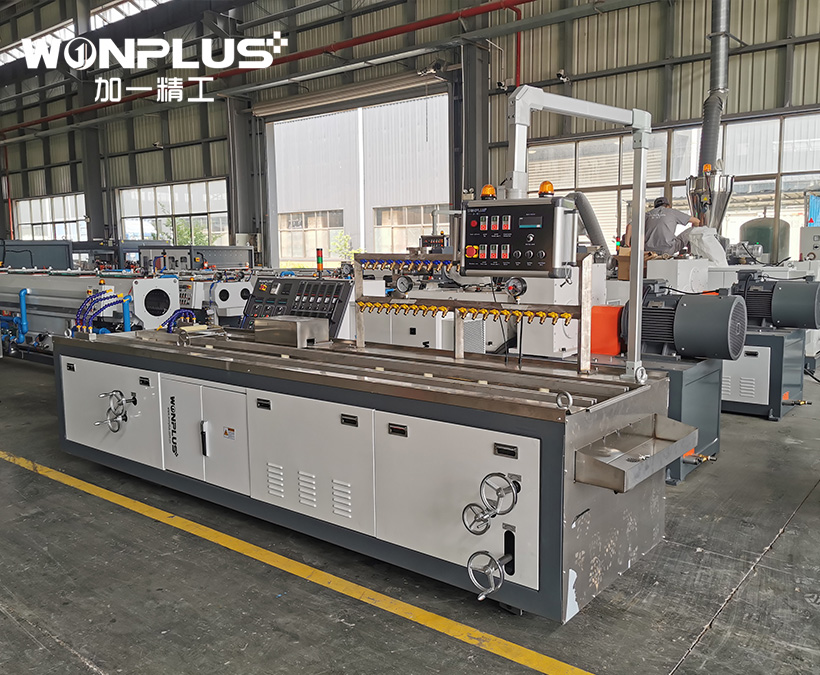

Calibration Tank
Material: Stainless steel
Tank Movement : Forth and back by motor driven , Up and down by food screw adjust
|
 |

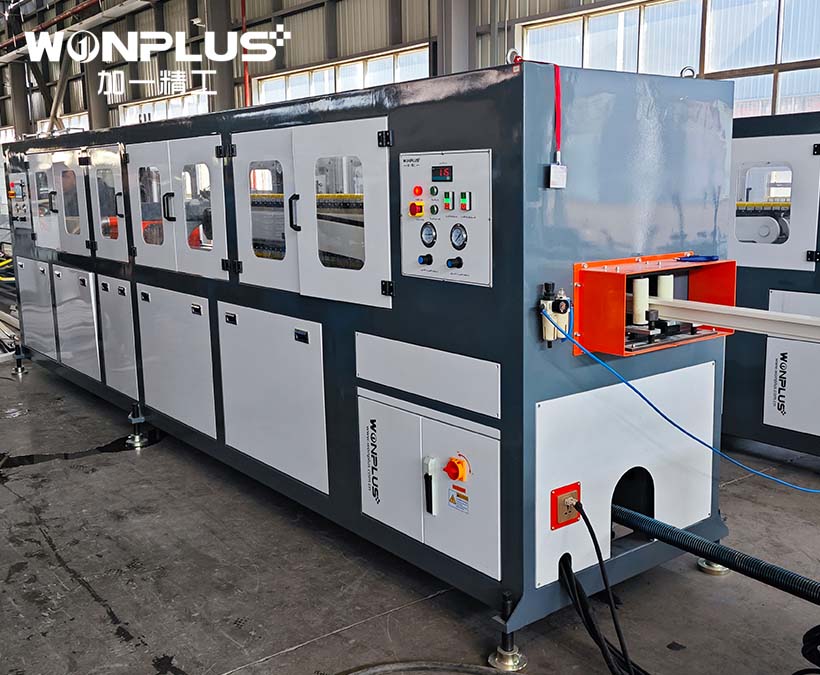

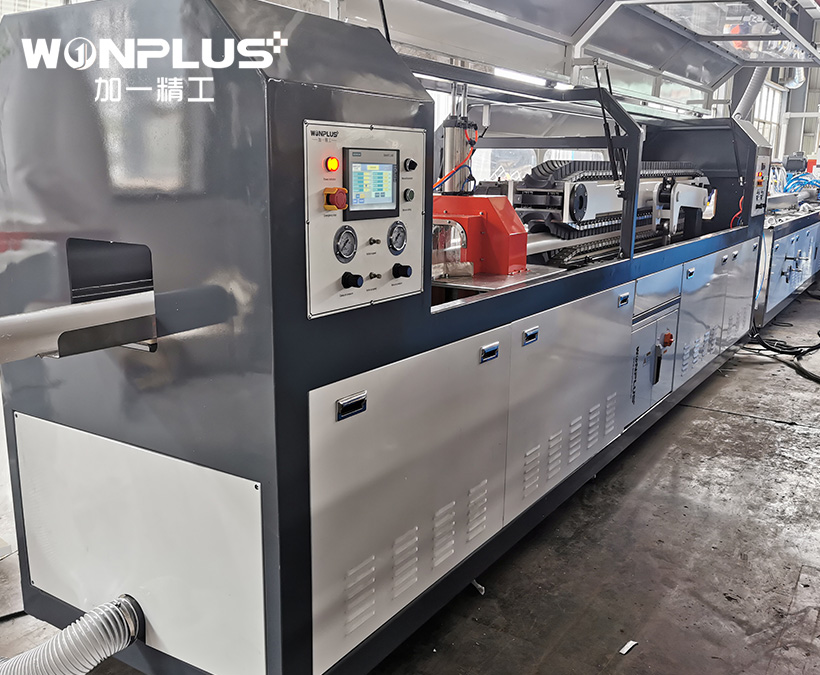

Hauler & Cutter
Traction motor reducer: Servo motor, INNOVANCE brand
Electricity components: Schneider brand
Cutting control: SIEMENS PLC computer
Cutting type: Non-dust cutter, or Saw cutter.
|
Machine Parameters
|
PRODUCT NAME
|

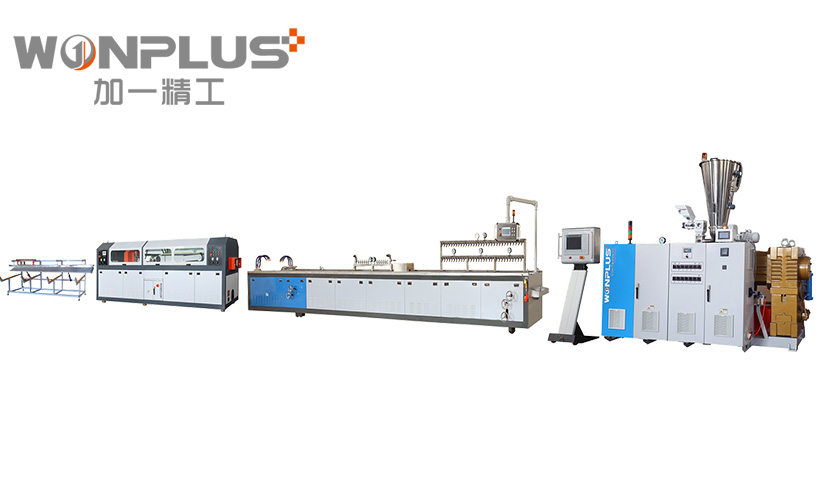

PVC/WPC Profile Extrusion Line
|
|
EXTRUDER
|
SJZ-65/132 or SJZ-55/110 or SJZ-51/105
|
|
MAIN MOTOR POWER
|
37KW/22KW/18.5KW
|
|
PRODUCT WIDTH
|
240MM
|
300MM
|
|
Downstream Equipment
|
|
|
YF240S
|
YF240
|
YF300
|
YF240-2
|
|
Products
|
Wire Trunking, Window, Rain Gutter Profile, PVC/WPC Door Profile, Etc.
|
Door Frame, Rain Gutter Profile, Panel Profile, Etc.
|
Double Outlet Wire Trunking
|
|
Mould
|
Single
|
Single
|
Single
|
Double
|
|
Downstream power
|
22kw
|
37.2kw
|
37.2kw
|
71kw
|
|
Table length
|
4m
|
7.2m
|
7.2m
|
11m
|
Packing and Shipment
