Air-cooled Industrial Chiller
General Description
HTI-A air cooled industrial chiller is widely applied in small-medium scale industrial cooling, helping to accurately control the temperature during processing, increase the product quality and improve the production efficiency.
Easy installation, with no need for cooling tower.
Design features
-Water temperature range 5ºC to 35ºC.
-Danfoss/Copeland scroll compressor.
-Copper coil built in SS tank evaporator, easy for cleaning and installation(plate type, shell and tube available on request).
-Microcomputer control system offering accurate temperature stability within ±1ºC.
-Low noise axial fan motor, quietly running.
-Large flow volume centrifugal pump, higher pressure available on request.
-Multi-protection devices to make sure the chiller and the equipment running safety.
-Schneider electrical components.
-Danfoss/Emerson thermal components.
Unit Safety Protection
-Compressor inner protection
-Over current protection
-High/low pressure protection
-Over temperature protection
-Flow switch
-Phase sequence/phase missing protection
-Low coolant level protection
-Anti freezing protection
-Exhaust overheat protection
Product parameters

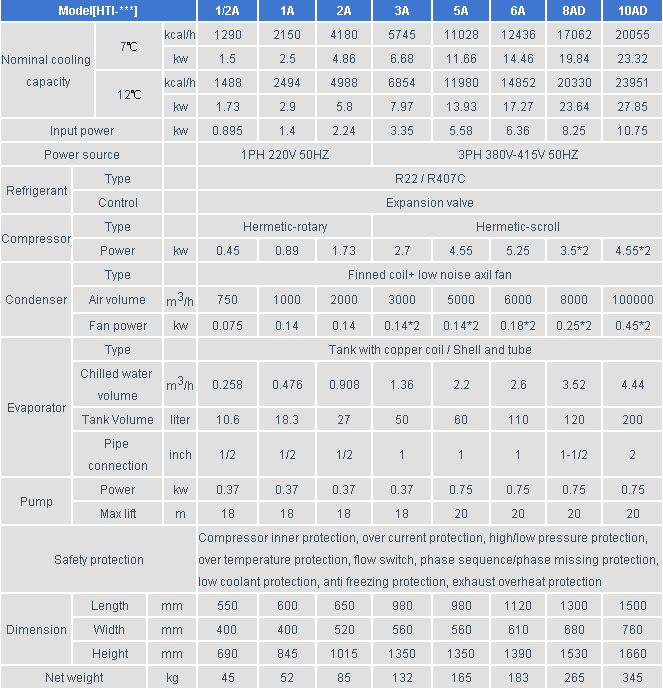

HTI-1/2A ~ HTI-10AD
Remarks:
Cooling air inlet/outlet temperature 30℃/38℃.
The design max running ambient temperature is 45℃.
R134a refrigerant is available on request, the max running ambient temperature for R134a unit is 60℃.
Higher capacity pump is for option.
Units for different power voltage available on request.

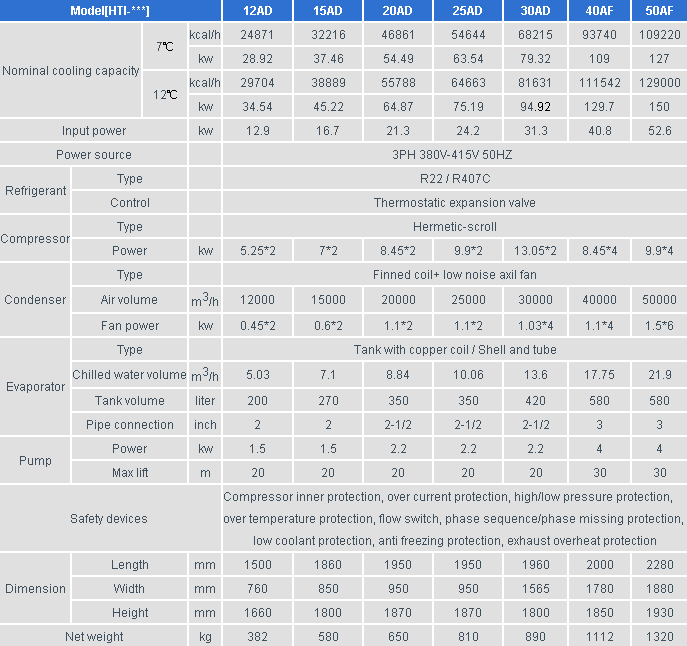

HTI-12AD ~ HTI-50AF
Remarks:
Cooling air inlet/outlet temperature 30℃/38℃.
The design max running ambient temperature is 45℃.
R134a refrigerant is available on request, the max running ambient temperature for R134a unit is 60℃.
Higher capacity pump is for option.
Units for different power voltage available on request.
