1-Application:

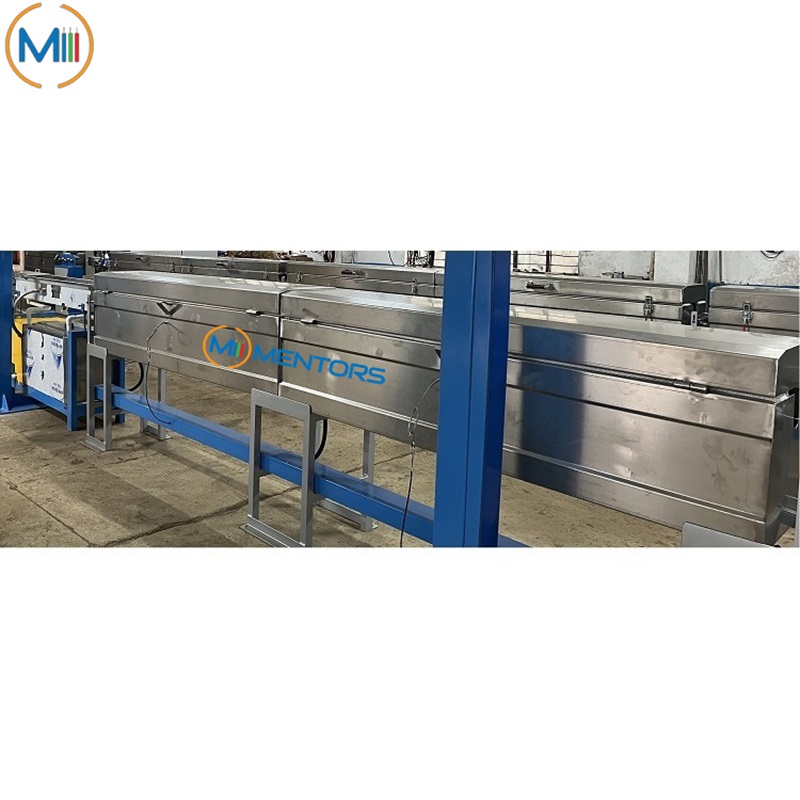

This production line is suitable for extrusion of various high temperature silicone cables

2-Parameters:

3- The main structure of the extruder:

1) Drive Motor

Generally, it is driven by a belt, and the screw is driven by a reduction gearbox. The reduction gearbox plays the role of decelerating and increasing the torque.

2)Speed Change Gearbox

3)Hopper drying

Hopper drying includes a vacuum suction device, and the vacuum suction feeder sucks the raw materials into the hopper, which is heated and dried by the hopper and prepared for compression.

4)Screw Cylinder

5)Screw

The screw consists of three sections: feeding section, compression section, and metering section.

6)Honeycomb Board

7)Head Heating and Cooling Device (water cooling or air cooling)

4-Advantages:

1. PLC + touch screen control and overall control,adjustment,monitor the production line parameters.
2. Silicone special screw,barrel,head,eye lies prevent mold and supporting structure of the internal curing.
3. The configuration of sophisticated detection feedback system to ensure accurate wire,greatly reducing costs.
