1-Application:
This silicone rubber production line is used for manufacturing high-temperature resistance silicone wire and cable.
2-Parameters:
|
Model
|
SY-80
|
|
Main drive motor
|
15HP-6P
|
|
Rotating speed
|
56/min
|
|
Extrusion output
|
120Kg
|
|
Screw L/D ratio
|
9.8:1
|
|
Linear speed
|
100/min
|
|
Continuous sulfur oven length
|
30m
|
|
Finished cable sizes(mm)
|
2.0-12.0mm
|
|
Traction motor(kw)
|
5HP
|
3-Extruder Production Process Introduction:

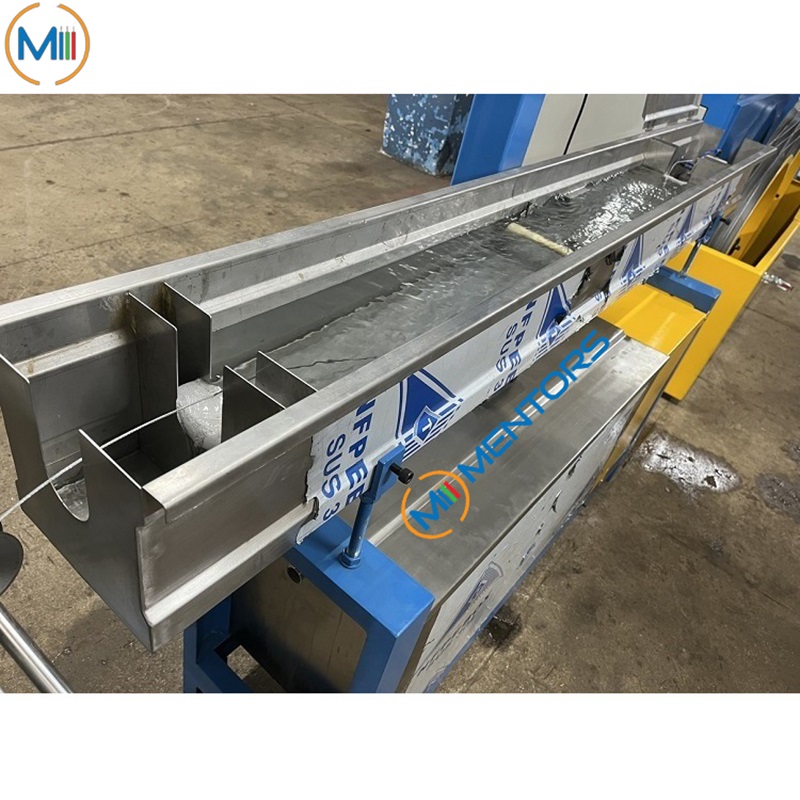

Pay-off----Five guide wheel straightening----Extruder machine----Suction Feeder----Machine Control Board----First Section Cooling Water Trough----Second Section Cooling Water Trough----Caterpillar----Spark Tester----Take-up
4-Advantages:

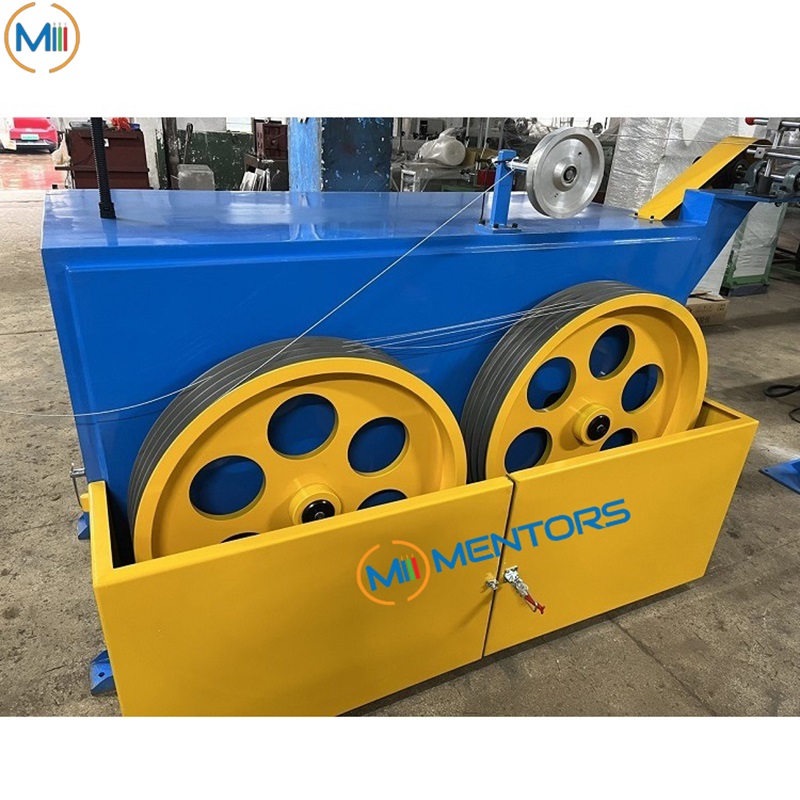

- Composed with tension pay-off stand,straightener,extruder master,diameter controller,printer,sulfur ovens,traction machine,accumulator,take-up part,etc.
- This machine has high output,continuous production and high automation.
- Special silicone-free water on the self-centering head,and automatic or manual control system.
