1-Application:
Silicone Rubber Insulation Machine is suitable for the production of silicone wire extruding insulation or sheath wire, with convenient operation and high reliability.
2-Parameters:
|
Model
|
SY-100
|
|
Main drive motor
|
25HP-6P
|
|
Rotating speed
|
56/min
|
|
Extrusion output
|
200Kg
|
|
Screw L/D ratio
|
9.8:1
|
|
Linear speed
|
80/min
|
|
Continuous sulfur oven length
|
35m
|
|
Finished cable sizes(mm)
|
3.0-20.0mm
|
|
Traction motor(kw)
|
7.5HP
|
3-Consisting Components:
- Pay off
- Preheat oven
- Straightening table with the toolbox
- Main Extruder Machine

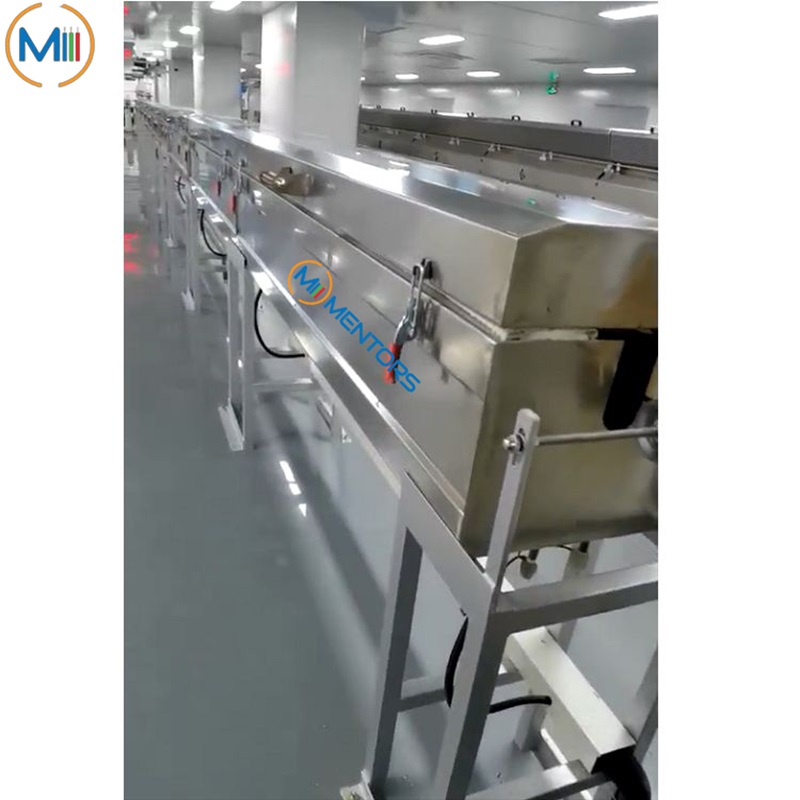

- Vulcanization tank
- Water cooling tank
- Electrical part

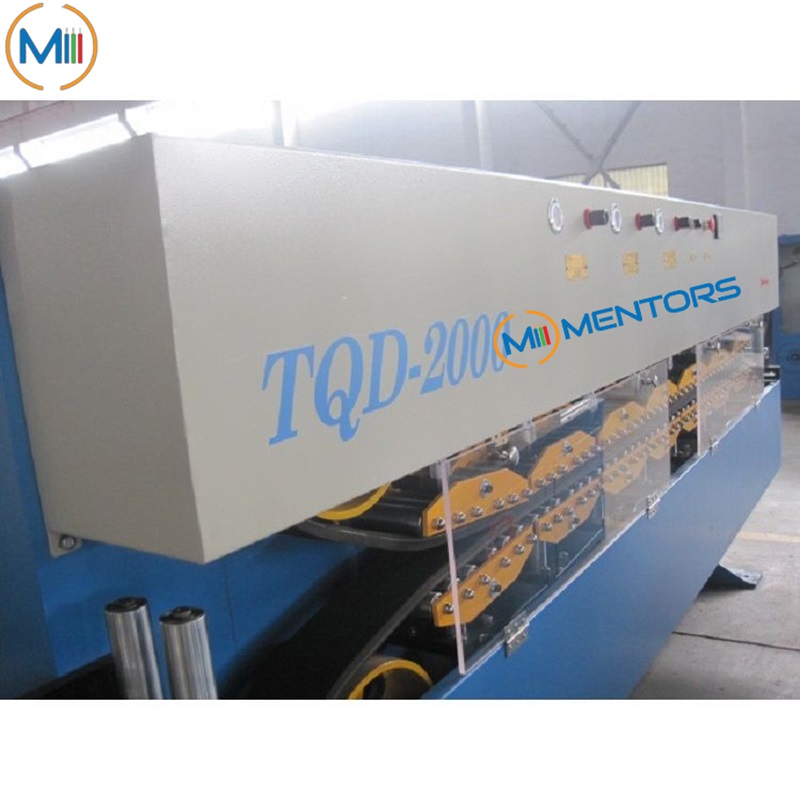

- Double wheel capstan
- Accumulator

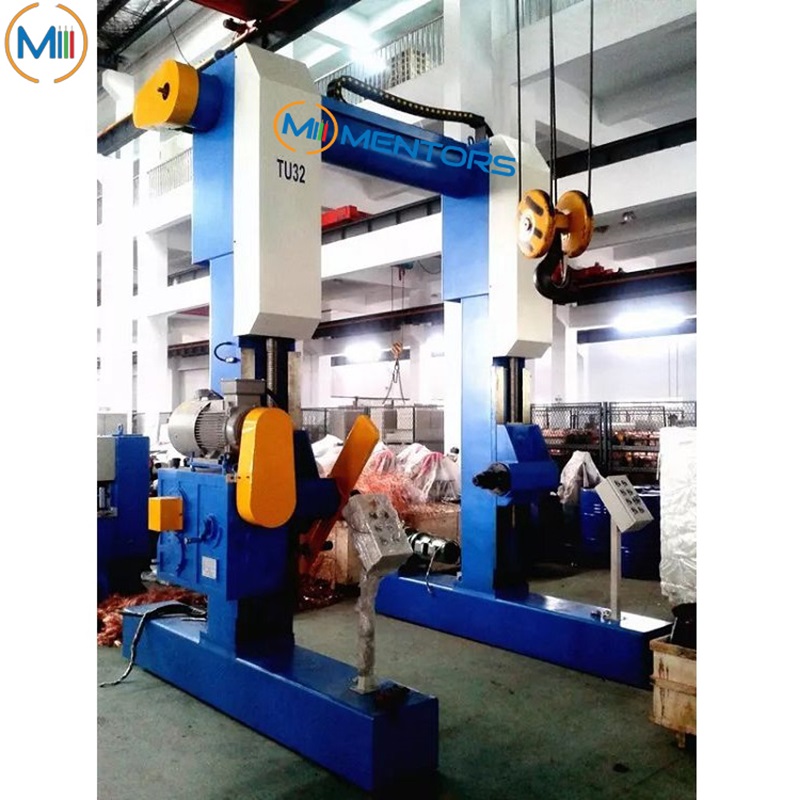

- Take-up
- Spark tester
- Laser diameter gauge
- Powder Machine
4-Advantages:
- PLC+touch screen which is easy to operate.
- Main electric appliance adopts imported brand products,stable and reliable in quality.
- Fast speed in production line,with quality
