The manufacture of precision injection irrigation emitter molds requires not only superior design but also advanced processing equipment and innovative mold technology. Processing drip irrigation molds differs from ordinary pipe fittings and other large-scale injection molding. Drip irrigation mold manufacturing requires various specialized equipment to meet the precision, efficiency, and process requirements of different stages. Below, we introduce the manufacturing equipment for agricultural irrigation product molds at CO-DRIP company.
1. Precision Mold Machining Center: Suitable for high-precision machining of complex drip irrigation shapes, cavities, deep cavities, or negative angle structures. The Mikron MILL brand five-axis machining center optimizes tool orientation and avoids interference. The equipment must be compatible with the mold material (e.g., mold steel, graphite) and attention must be paid to spindle speed, torque, positioning accuracy (e.g., ±0.002mm), and rigid structure (e.g., HT300 cast iron bed).

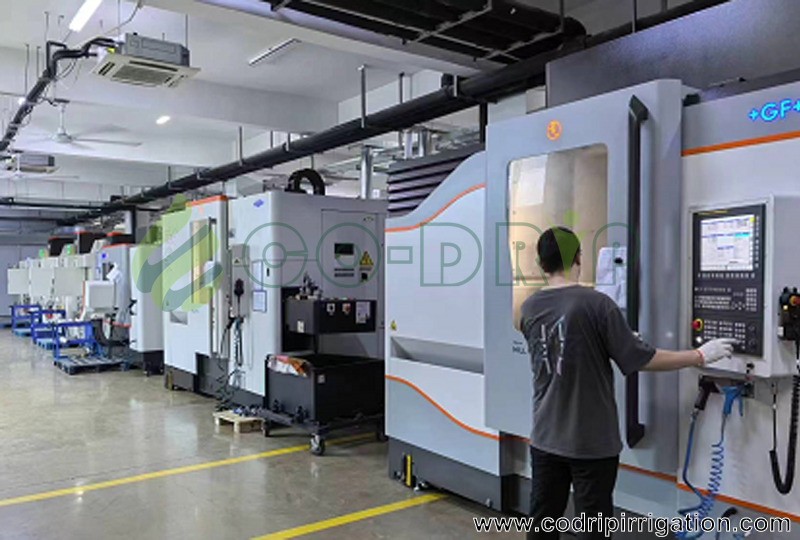

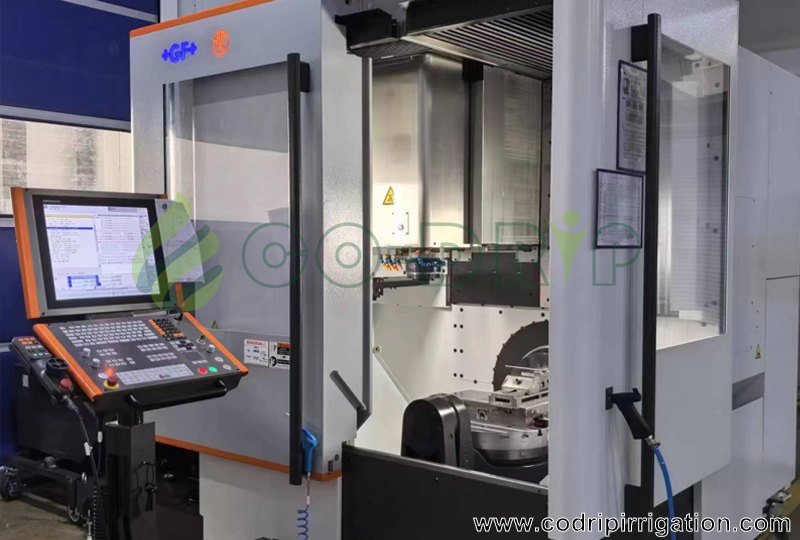

2. High-Speed CNC Mold Engraving Machine: Our company is equipped with multiple Swiss GF high-speed machines, suitable for processing molds with complex shapes and diverse varieties, such as cavity molds and stamping dies. Features include high efficiency, a large load-bearing worktable (up to 1 ton or more), and a two-way tool cooling system. It is compatible with various CAD/CAM software, which forms the basis of our ability to produce large dripper molds such as 512-cavity, 640-cavity, and 768-cavity flat dripper molds.

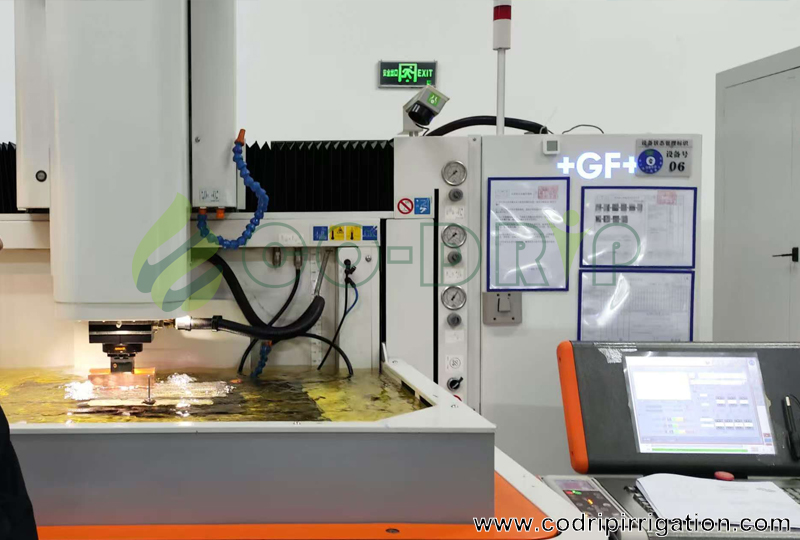

3. Wire EDM machine: Capable of achieving a mold surface roughness below Ra0.08μm, enabling real-time correction with micron-level precision.
4. Electrical Discharge Machining (EDM) machine: Ensures mold surface finish and geometric accuracy. This complete set of advanced processing equipment is the core technological guarantee for the high flow rate of our dripper products and the high consistency of each cavity component within the mold.

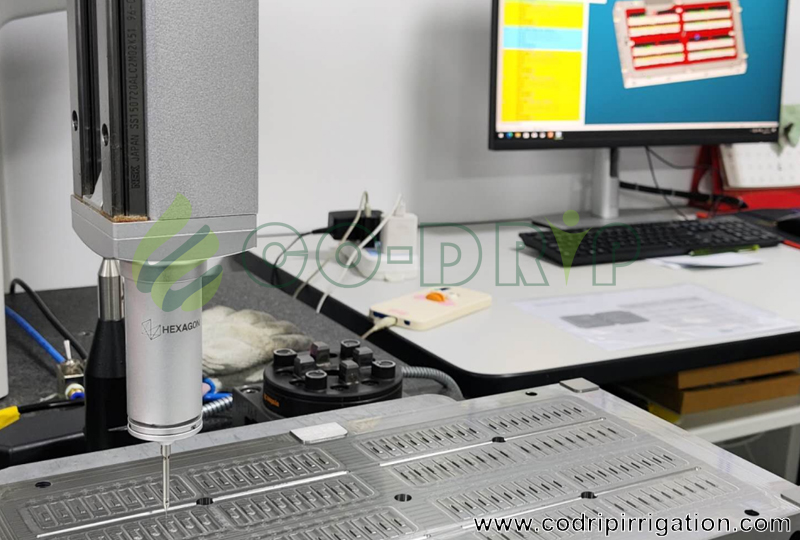

5. Coordinate Measuring Machine(QC inspection machinery): As an important piece of equipment for mold processing quality inspection, our company uses a Swedish Hexagon coordinate measuring machine, which can accurately measure the dimensions, shape, and positional accuracy of Irrigation mold parts. We can perform comprehensive measurements on all parts of the mold, with a measurement accuracy typically reaching ±(2 + L/300) μm (L is the measurement length in mm). Each completed dripper mold component undergoes rigorous quality testing, ensuring superior quality for every customer who purchases our CO-DRIP brand dripper molds.

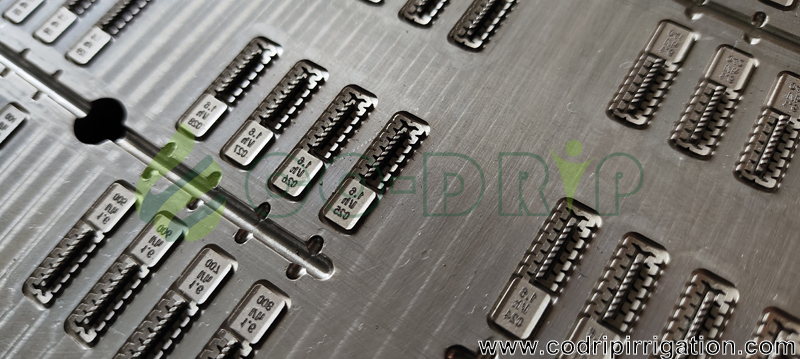

Dripper molds are crucial tools for producing the core component of agricultural drip irrigation systems: the drip emitters. CO-DRIP focuses on high-precision, high-efficiency, and high-stability dripper molds, especially for high-end injection molds for inline flat dripper mold, buried cylindrical dripper mold, and pressure-compensated flat drippers and drip emitter molds, compensation drip online emitter.
Our CO-DRIP would continuously strives to become an industry benchmark brand in high-quality dripper mold manufacturing. If you require large and precision dripper molds, please contact us: www.dripirrigation.cn. Welcome to visit our dripper mold manufacturing factory.
