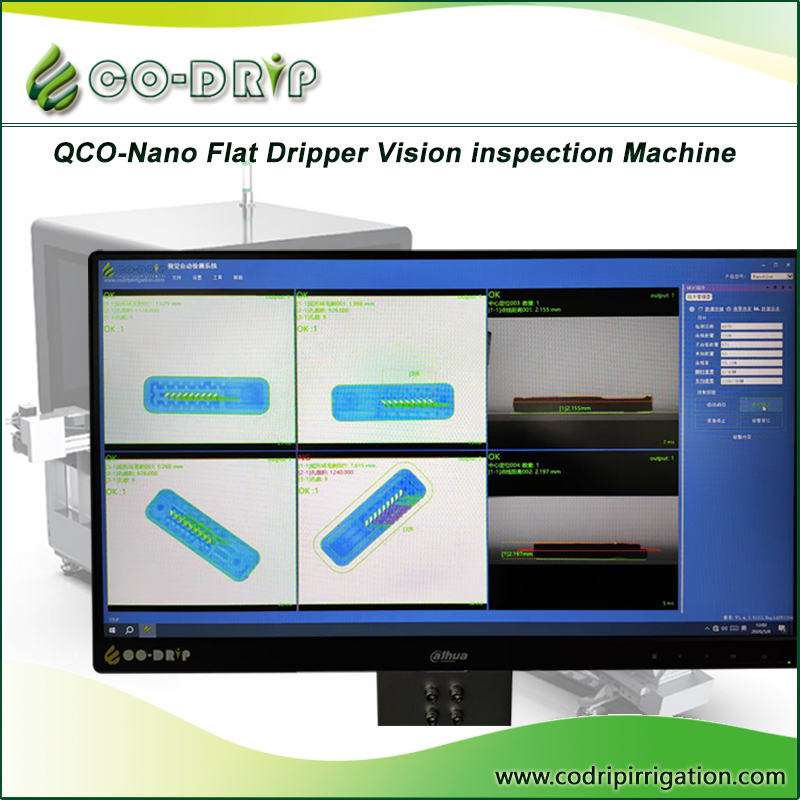

1.Vision inspection system funtction deccription: Moitor and sorting dripper speed
Model 1#: 500-600pcs/min;
Model 2#: 1300-1500pcs/min (depend on dripper size).
Appearance inspection: 3D face+by camera system.

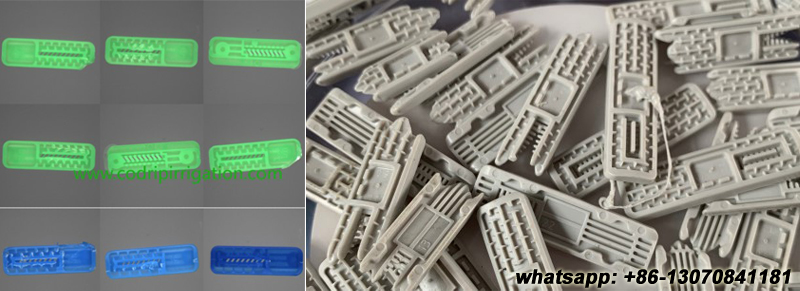

Such as Dripper flash scratches / breakages / burrs / missing materials or dirty colour and other visible appearance defects under the camera system (can set monitor different type flat dripper at the same Visual machine).
2. Configuration description:
(1). Feeding method: vibration plate + direct vibration.
(2). Detection mechanism: transparent turntable detection.
(3). Three transparent double doors for easy observation, debugging and maintenance.
(4). Equipped with a display for easy parameter setting and manual debugging.
(5). The control cabinet has double doors with locks for easy maintenance.
(6). The products corresponding to the test results are removed to the corresponding silo by blowing.
(7). PLC control system+CPU model.
(8). The lasted Visual operation system,
(9). CCD camera Unit.
3. AI Technology - Advanced Software and Algorithm Processing System:
Our visual inspection system features an advanced image processing system and advanced AI algorithms, which improve the recognition rate of complex dripper product defects (such as maze blockages, microscopic sticking, pitting, burrs, flow marks, missing material, breaks, pits, and impurities).
