PE Pipe Extrusion Machinery
Our company boasts years of experience in plastic pipe manufacturing. We supply extrusion lines for PP, PE, PPR, PERT, HDPE and PVC pipes, with a maximum processing diameter of over 800mm. Backed by solid strength, rich industry expertise, professional talents and advanced technical capabilities, we deliver reliable equipment solutions for global clients.
Product Introduction
This110mm-355mm HDPE Plastic Pipe Extrusion Line is designed for high-efficiency production of high-density polyethylene pipes. It adopts a high-performance single-screw extruder and precise PLC control system, ensuring stable operation, uniform wall thickness and high dimensional accuracy. The complete production line supports automatic feeding, calibration, cooling, haul-off and cutting. It is widely used in water supply, gas transmission and drainage projects, featuring energy saving, easy operation and strong durability, ideal for medium-scale pipe manufacturing.
Machine List
| single screw extruder |
2 sets |
| mould |
1 set |
| vacuum calibration tank |
1 set |
| spray water tank |
2 sets |
| haul-off machine |
1 set |
| cutter |
1 set |
| stacker |
1 set |

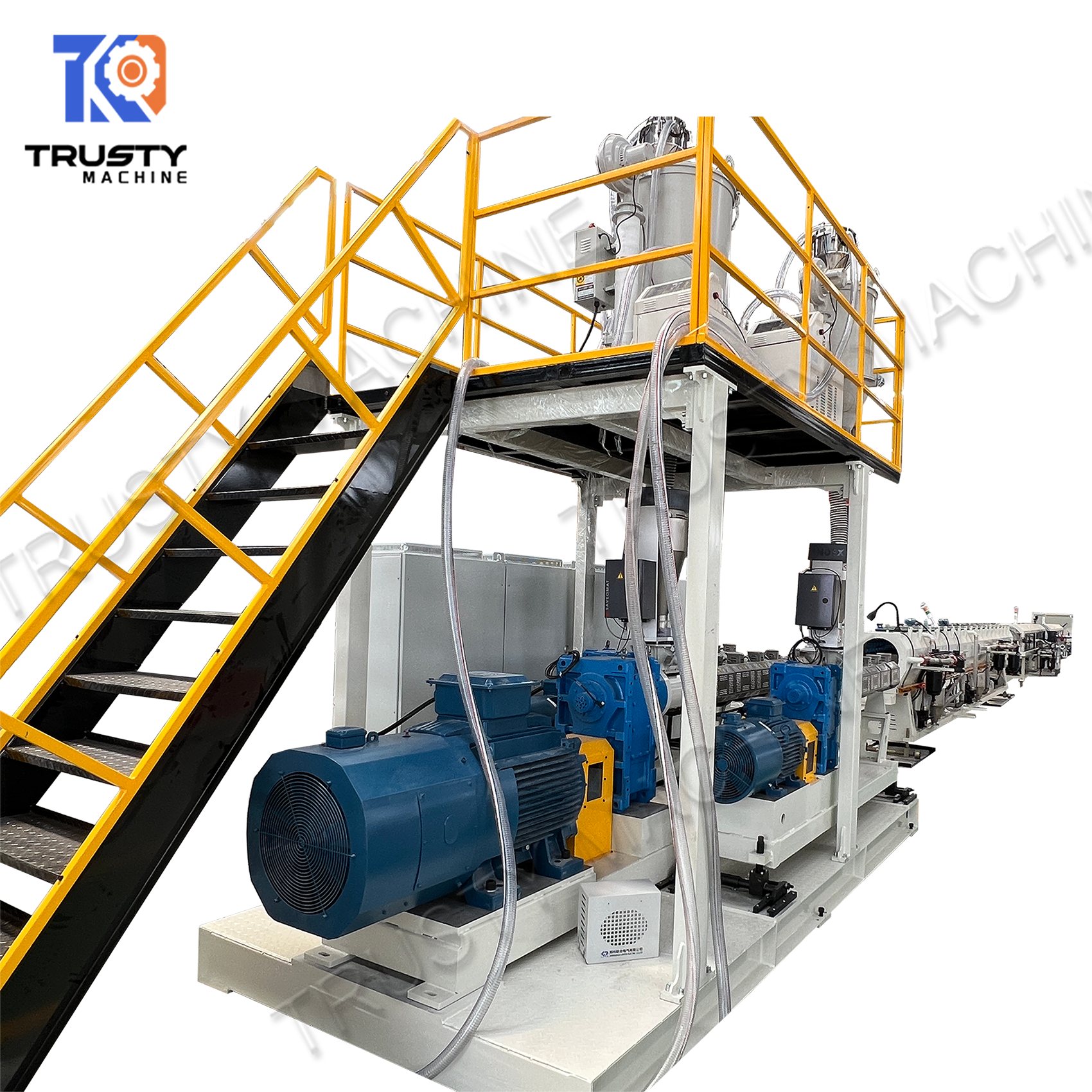

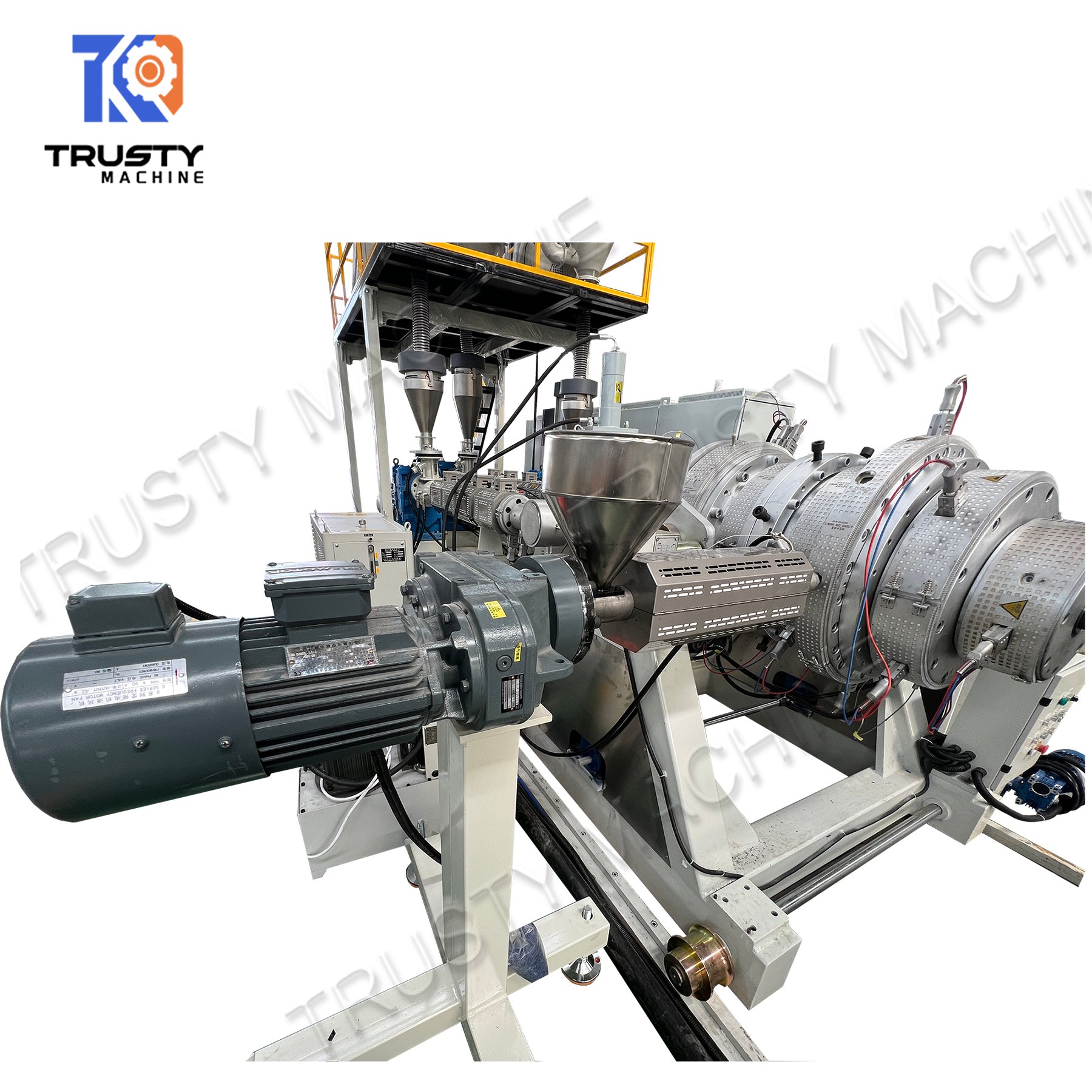

Single Screw Extruder:
All extruders deployed for this production line are single screw extruders, suitable for the production of pipes made from PP, PE, PPR and other raw materials.
This line is equipped with one main extruder, two co-extruders and one colour stripe co-extruder, capable of manufacturing ABC three-layer pipes with marking stripes.
Extruder type:SJ-60/38
Extruder motor:Inovance Servo
Frequency inverter: ABB
Electric contactor: Inovance

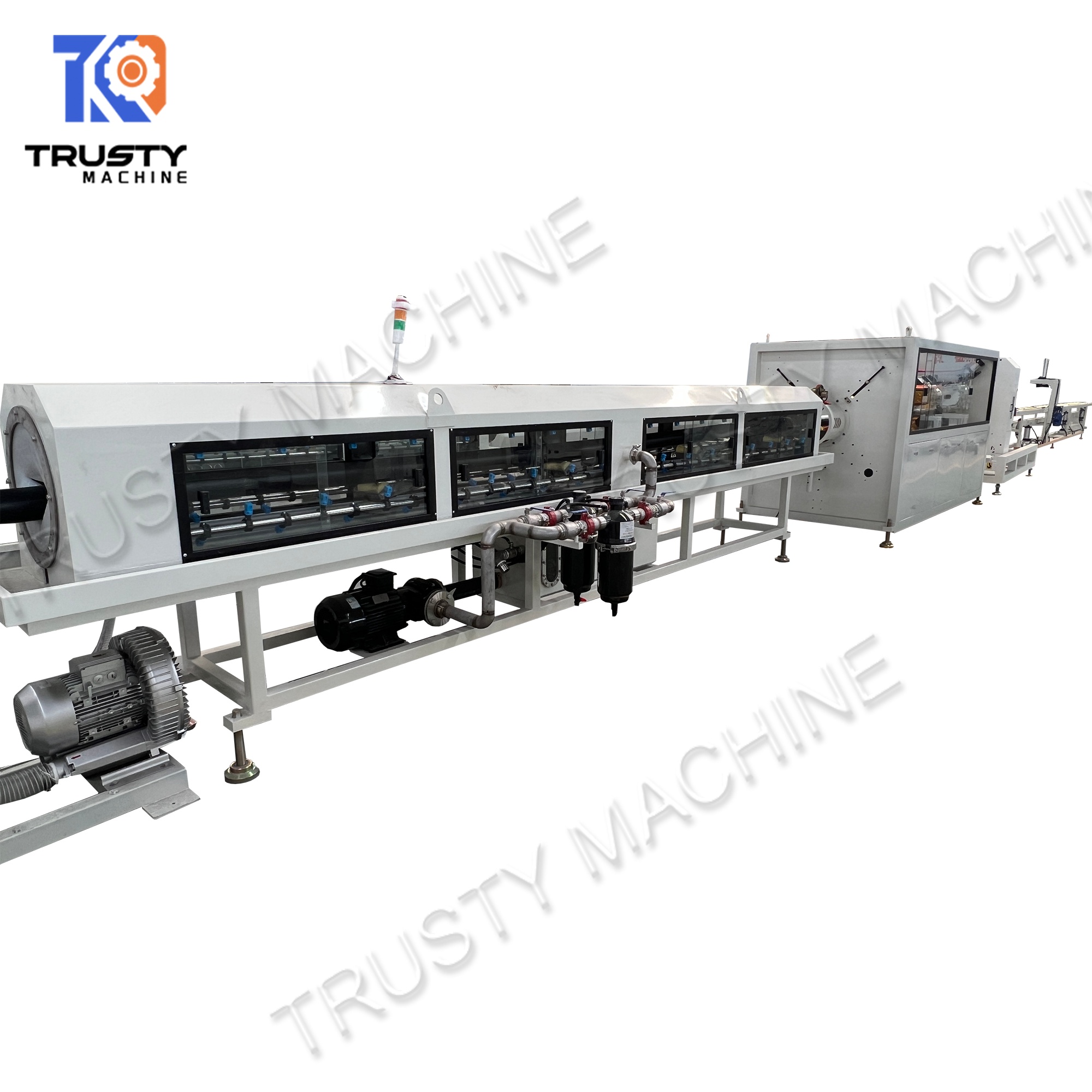

Cooling system:
The cooling system consists of two types of tanks: vacuum calibration tank and spray water tank. Equipped with 9-meter-long tanks, high-quality vacuum pumps and water pumps, the line ensures efficient sizing and cooling performance.
Tank effective length: 9 m
Tank Raw material: 304 stainless steel
Haul-off machine:

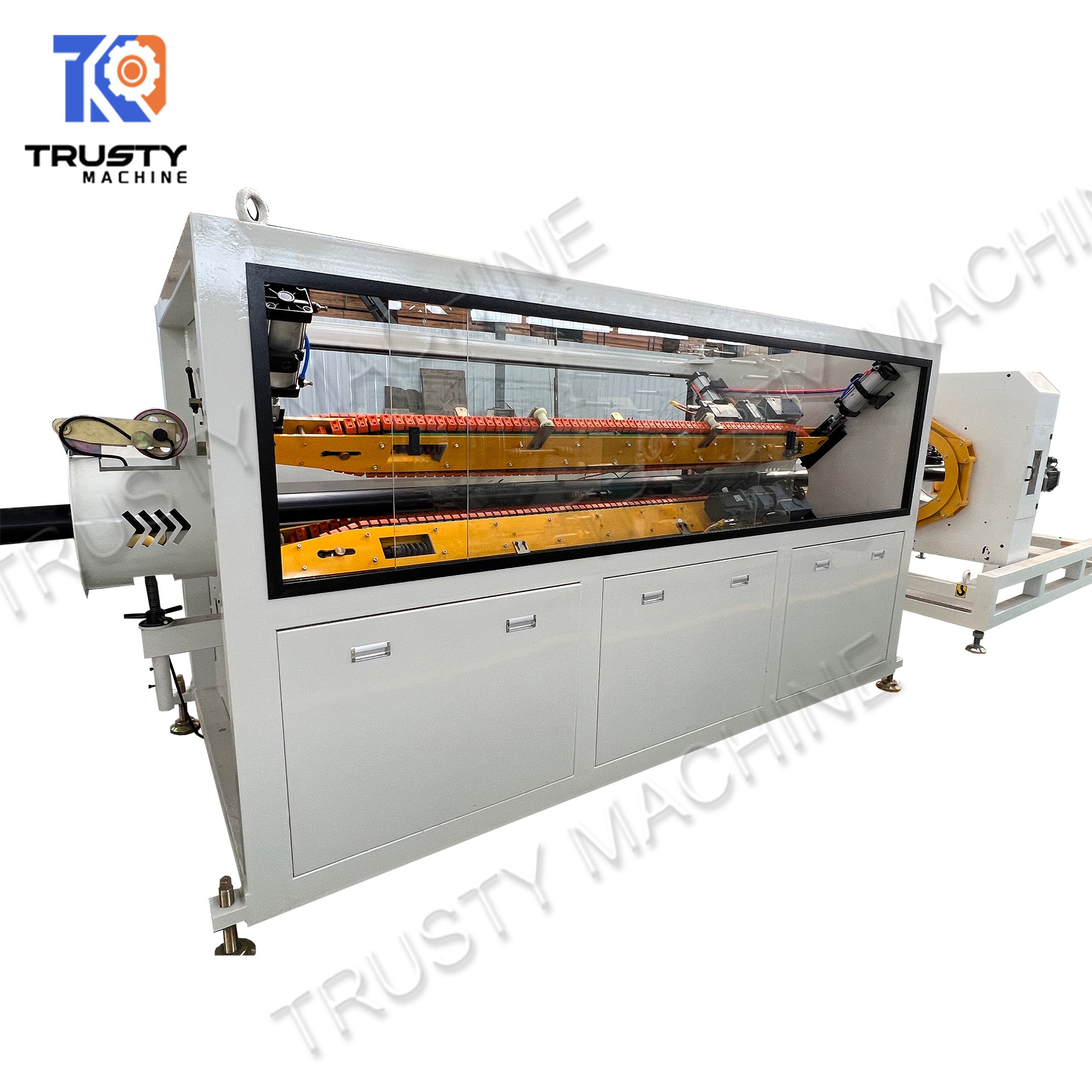

The double caterpillar haul-off machine can pull pipes with a maximum diameter of 500mm. It delivers high stability and firm gripping.
Cutter:
It is fitted with a planetary cutter for efficient pipe cutting, ensuring flat and smooth cross-sections.
Tank effective length: 9 m
Tank Raw material: 304 stainless steel
Process Flow:
Raw material feeding → Melting & extrusion → Die forming → Vacuum calibration → Water cooling → Haul-off → Automatic cutting → Finished pipe stacking
Specification:
| Pipe range |
Extruder |
Output |
Main extruder power |
| 16-63mm |
SJ-50/38 or SJ-65/33 |
200kg/h |
55kw |
| 20-110mm |
SJ-60/38 or SJ-75/33 |
300kg/h |
75kw |
| 63-250mm |
SJ75/38 or SJ-90/33 |
550kg/h |
132kw |
Potable water supply: Main line and branch line piping for urban and rural drinking water distribution networks, residential community water supply systems, and municipal tap water reconstruction projects. The middle recycled material layer effectively lowers overall project costs while guaranteeing outer layer hygienic performance.
Agricultural irrigation: Large scale farmland water saving irrigation, orchard irrigation, farm water transmission pipelines. Excellent resistance to corrosion and underground soil erosion extends service life for buried installation.
General engineering projects: Buried drainage and water transfer for real estate construction, park landscapes, road engineering and municipal infrastructure. Suitable for non-pressure and low pressure fluid conveyance.
Industrial fluid delivery: Transportation of non-corrosive industrial water for factories, workshops and processing zones. Good chemical resistance enables stable conveying of common neutral aqueous media.
Our company's main products are:
PVC door and window profile production line
WPC wood-plastic profile production line
PVC wall panel production line
PVC/PE/PPR/PERT pipe production line
PVC/WPC crust foam board production line
PE/PP/PC hollow sheet production line
PVC roof tile production line
PET packing belt production line
PP,PE,ABS sheet/board production line
PP,PE,PA,PVC single wall corrugated pipe production line
According to customers' needs, to achieve diversified processing customization.
FAQ
1. Why Choose Our Company?
We are a professional plastic extrusion machinery manufacturer based in Qingdao. We always prioritize machine quality and customer satisfaction. We have strong technical and production capacity to supply you with high-quality equipment and thoughtful one-stop after-sales service.
2. What Full-Service Process Can We Provide?
Pre-sales consultation and communication → Customized design solution and confirmation → Personalized production → Factory machine testing before shipping → Professional packaging and delivery → On-site installation by professional engineers → Operational training for your workers → Long-term technical after-sales support
3. What Main Machines Do We Supply?
- PP PE PVC Pipe Extrusion Machine
- WPC PVC Profile Production Machine
- PE PP PC PMMA Sheet & Board Making Machine
- SPC Imitation Decorative Panel Machine
- WPC Outdoor Terrace Board Production Machine
- PVC Fiber / Steel Reinforced Hose Machine
- Single Wall Corrugated Pipe Machine
- Hollow-wall Coiled Pipe Machine
4. Payment Terms
A 30% T/T deposit is required in advance. The remaining 70% balance shall be paid by T/T or irrevocable sight L/C before delivery.
Available settlement currencies: USD, EUR, CNY, RUB.
5. Delivery Terms
5.1 Shipping mode: FOB Qingdao Port or CIF destination port.
5.2 Production & delivery cycle: Within 30-60 working days after receiving the deposit, we will notify you for machine inspection. After receiving the full balance payment, we will complete goods packaging and arrange shipment within 15 working days.
6. Warranty Policy
6.1 Warranty period: 12 months, calculated from the date when the machines arrive at your warehouse.
6.2 During the warranty period, we provide free technical services and free spare parts for the whole production line.
6.3 Lifetime technical support: After the 12-month warranty expires, we still provide long-term follow-up service; you only need to bear the cost of required spare parts.
7. Factory Inspection Rules
Once machine production is completed, we will notify you to arrange pre-shipment inspection. We guarantee all equipment runs in good condition. We bear all raw material costs for factory testing. You can arrange on-site inspection by yourself or entrust a third-party inspection institution to our factory.
8. Installation & Commissioning Service
If you need, we can arrange professional technical engineers to your factory for full production line installation and commissioning. You need to cover engineers' round-trip airfare, accommodation, meals and other living expenses, plus a service fee of 120 USD per engineer per day.
