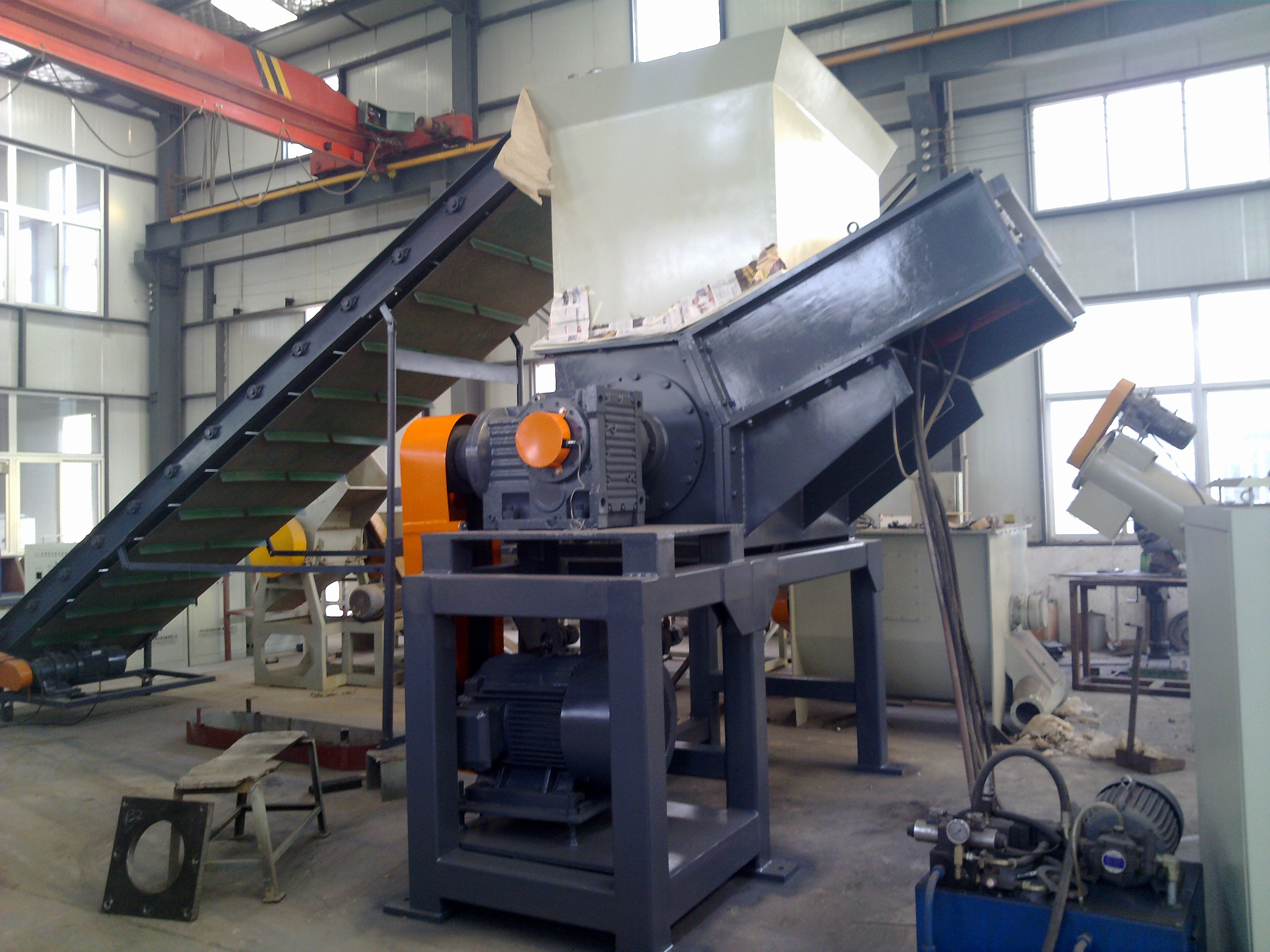

The shredder is mainly used to recycle, rend and crush the waste material; the applicable material include in the big solid block of plastics, large diameter HDPE pipesm bundled of PE/PP films and bags, papers and fibers, blocks of wood, etc.
Choose the suitable model according to the size of the waste material, the shredder is divided to the single and double shaft.
Features
1 Single shaft or double shaft design
2 Capacity 500 ~ 1200kg/h
3 Motor brand is SIEMENS
4 With control panel, watch the running status directly
5 For plastic bottles, films, bags, seets, boxes, solid wastes, pipes, etc.
6 With hydraulic force-pushing down device
Specifications
Description | Unit | Shredder 55KW | Shredder 90KW |
Production capacity | kg/h | 500~600 | 1200~1500 |
Driving motor | kw | 55 | 90 |
Feed opening size | mm | 1100 x 1100 | 1380x1890 |
Chamber space | mm | 920 x 1000 | 1180x1690 |
Rotation speed | rpm | 82 | 82 |
Screen ZIGZAG holes size | mm | 100 | 100 |
Number of rotation knife | piece | 64 | 120 |
Number of fixing knife | piece | 4 | 6 |
Hydraulic driving motor | kw | 4.0 | 5.5 |
Machine dimension | mm | L2500 x W3500 x H3200 | L3100 x W3500 x H4200 |
Machine weight | kg | 4500 | 8500 |
