Home > Product Categories > Automatic double sides labeling machine for square bottle or box

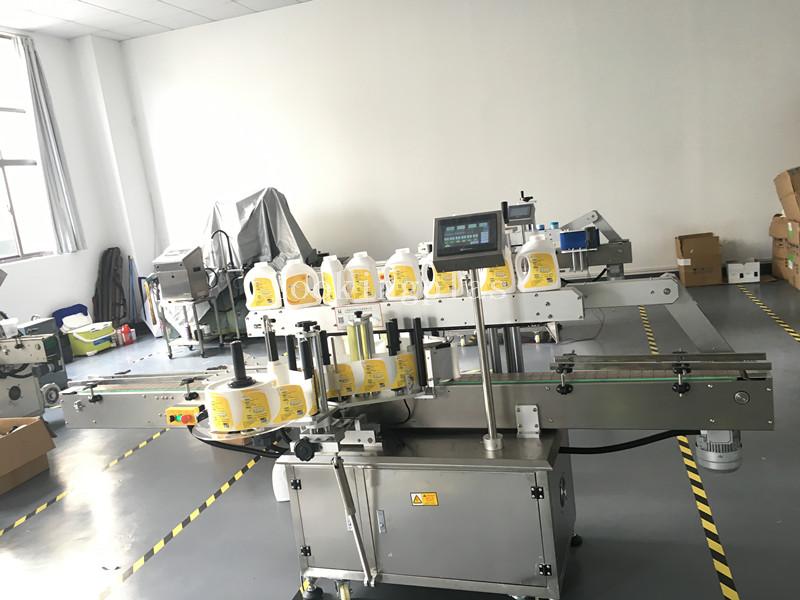

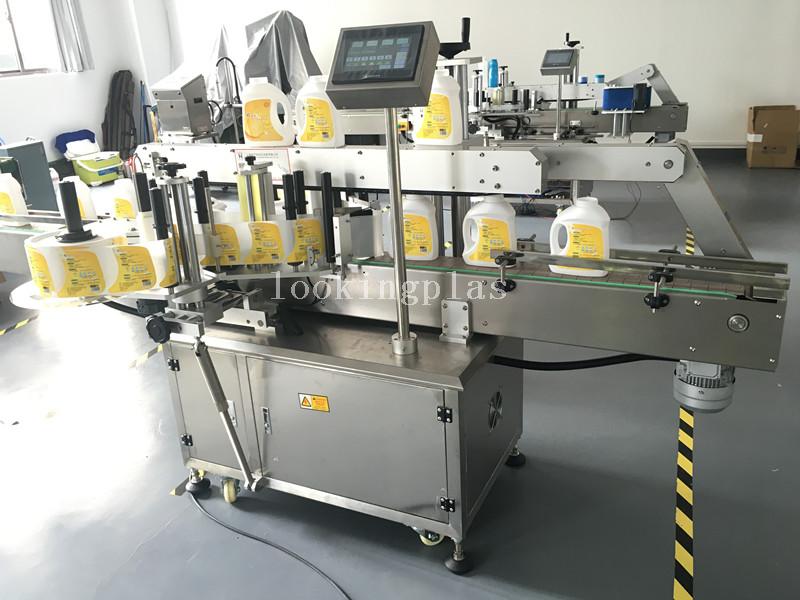

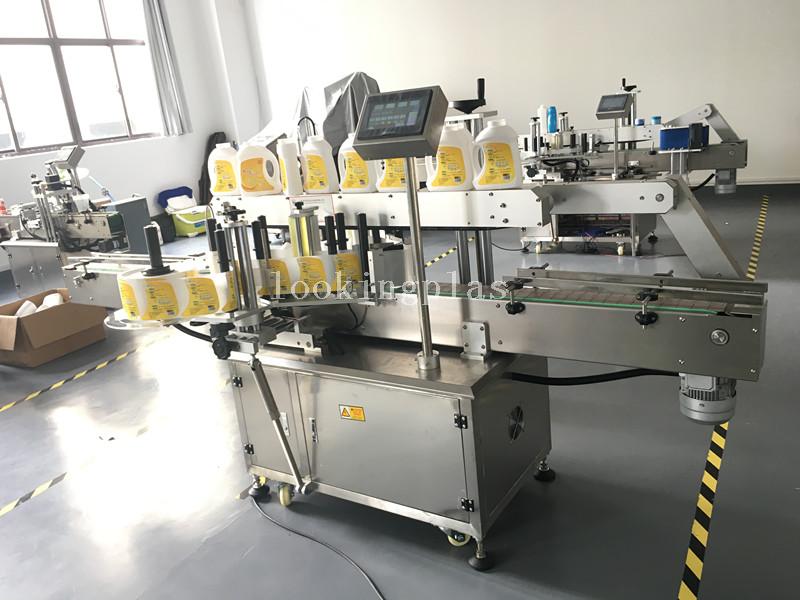

Automatic double sides labeling machine for square bottle or box 2324 Favorites

Product Categories: Plane Labelling Machine
Packaging Details:	Trademark:
Certification:
Payment Terms：
FOB:	HS Code:
Loading Port：

Shanghai Xujie Automation Machinery Co.,Ltd
Company type： Manufacturer	Credit：
Main products：Labeling machine,Packing Machiine,Capping machine,Filling Machine.Liquid packing line and so on

Get Quotation

Automatic Surface/flat/ Plane Labeling machine

Raw material：SUS304	Condition： New
Place of Origin：Shanghai	Loading Port：

To：	Verna
Subject：
Message：	You can also enter 300 characters

Message has been sent successfully.

Post Buying Request

*Subject:
*Matching Rules:	Categories Keywords
*Inquiry Type:
*Keywords:	+ max five keywords
	Added:
	Note:you can add at least one keywod and most five keywords
*Categories:	Add Delete
*Detailed Description:
	Note: Please write your requirement in detail
Attachments：	+ Note: Attachments will help you get accurate solutions Note: Attachments can help you get accurate solution from suppliers
Max quotations want to receive：
	I agree to share my business card with quoted suppliers

Submit Inquiry

No matched supplier

Public souring

Your inquiry has been submitted successfully but 0 supplier matched at present, you will get quotations from Public Sourcing.

Close

Your inquiry has submited successfully and suppliers have been matched by LookingPlas,You will get the quotations as soon as possible.

Close

You had already registered,no need join again.

Registered successfully.

Sorry only Buyer can register the activities.

Model	XLB-220
Feature	It can label one side of round bottles, the one side, two sides or three sides of square bottles, or single or double sides of flat bottle, with wide application and strong suitability.
Feature	1. Synchronous chain correcting mechanism ensures the stable and accurate correction. 2. Screw regulation press mechanism: Accurate movement, large regulation range and wide application to various bottles. 3.Universal machine nose synchronous mechanism is suitable for bottles which are difficult to be labeled to different extents. 4. It ensures that transparent labels have no air bubbles and adhesive labels have no folds in labeling
If you need more information about the feature of this equipment, please contact us without any hesitation. Thanks !
Character	1) Model:XLB-220 2) Drive: Servo Motor Driven 3) Direction :Right/Left 4) Labeling Speed:80-150 pcs/min 5) Label Size :Width: 10-135mm Length: 10-300mm 6) Precision:±1mm 7) Label Roll:Max: 300mm 8)Label Core: Stander: 75mm 9)Machine Size:1600x600x1400mm 10)Weight :150Kg 11)Power:AC 110/220V 50/60Hz 500W 12)Coding Device:XJ-280
Contact Information	Shanghai XUJIE Automation Machinery Co.,Ltd Add:No.288 Dongzhou Road Dongjing Town Songjiang Area,Shanghai,China. Name:Verna Whats app:+0086-15000789877 Email:xujiepack@gmail.com Facebook:xujiepack@gmail.com
