1.HDPE Pipe Machine Features and advantages
The HDPE/MDPE water supply and gas supply pipe production line developed by our company has unique structure, features high automation, easy to operate, continuous and stable production.

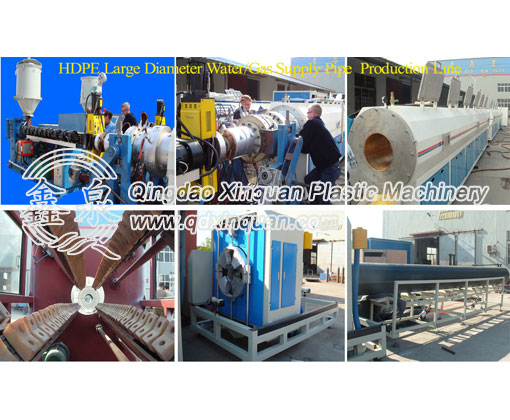

* Production Line Consists: the production line consists of electrical control system, extruder, and die head; calibrating and cooling system, haul-off, planetary cutting device and stacker.

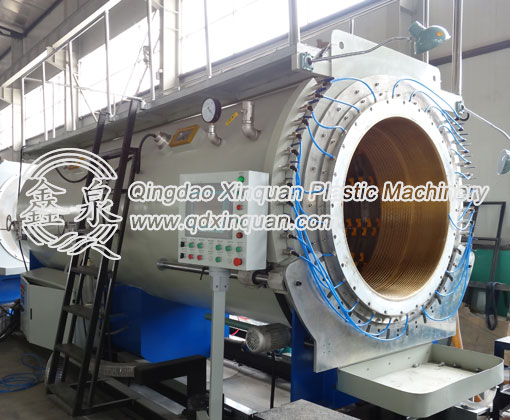

* Mould and auxiliary machines: the die head is the newly designed basket style or spiral style distribution composite type, features easy operation, stable extrusion. The calibrating sleeve adopts special designed cooling mode, ensures a high precision of foamed. The control system consists of advanced PLC and large colorful liquid screen, has the advantages of perfect alarming system, nice Chinese and English interface, convenient to operate.
2. Technical Parameters of extruder
Model | Pipe diameter mm | Extruder | Max. output (kg/h) | Total installed power (KW) | Lenght of production line(m) |
---|
PE-32 | Φ4-32 | SJ-45/30 | 30-120 | 45 | 28 |
PE-63 | Φ20-63 | SJ-60/33 | 120-220 | 100 | 36 |
PE-110 | Φ20-110 | SJ-65/33 | 150-250 | 120 | 39 |
PE-160 | Φ63-160 | SJ-65/33 | 120-270 | 150 | 43 |
PE-250 | Φ75-250 | SJ-75/33 | 280-400 | 230 | 45 |
PE-450 | Φ110-450 | SJ-90/33 | 450-600 | 350 | 65 |
PE-630 | Φ315-630 | SJ-120/33 | 700-950 | 550 | 75 |
PE-800 | Φ400-800 | SJ-150/33 | 800-1200 | 700 | 75 |
3.Technical parameters of haul-off
Model | QY250/3 | QY315/3 | QY400/4 | QY630/6 | QY800/6 |
---|
Hauling off range | Φ75-Φ200 | Φ250-Φ315 | Φ280-Φ400 | Φ355-Φ630 | Φ560-Φ800 |
---|
Quantity of caterpillar | 3 | 4 | 4 | 6 | 6 |
---|
Valid hauling off length (mm) | 1340 | 1340 | 1800 | 1800 | 1800 |
---|
Drive power (KW) | 3 | 4 | 5.5 | 7.5 | 7.5 |
---|

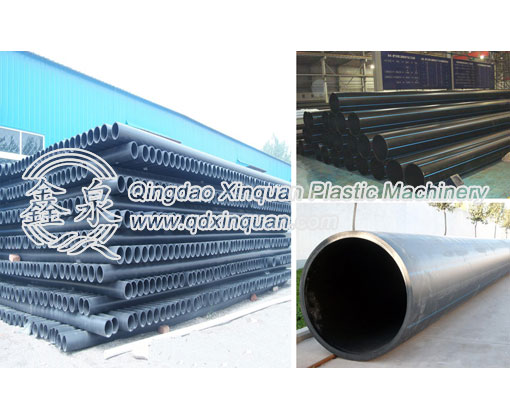

4.HDPE Pipe features and application
The pipes produced by this production line has the advantages of suitable tenacity and strength, very good flexibility, creep resistance, environmental stress crack resistance and excellent hot-melt welding property; the pipe is a perfect choice for the city gas supply and outdoor water supply.
