1.The Machine
SHR series mixers are mainly used in mixing PVC and all kinds of plastic materials mixing, coloring, drying and etc, in plastics, rubber, food-stuff, daily chemical industry and so on.
SHR series mixers adopt advanced design and can be operated easily, safely and reliably. They have small size, light, high efficiency, low energy consumption and low noise. It is an ideal choice for you to buy such devices.
2.Technical Parameters
Model | Total volume (L) | Valid volume (L) | Power of motor (kw) | Rotation speed (r/min) | Heating mode | Discharging mode | L×W×H(mm) Outline size L×W×H(mm) | Weight (g) |
---|
SHR-5A | 5 | 3 | 2.2 | 600-3000 | Self-friction | Manual | 620×300×730 | 50 |
SHR-10A | 10 | 7 | 3 | 600-3000 | Self-friction | Manual | 1200×300×830 | 75 |
SHR-50A | 50 | 30 | 7/11 | 750/1500 | Electric heating | Pneumatic | 2100×800×1510 | 150 |
SHR-100A | 100 | 75 | 14/22 | 650/1300 | Electric heating | Pneumatic | 2100×800×1510 | 400 |
SHR-200A | 200 | 150 | 30/42 | 480/970 | Electric heating | Pneumatic | 2400×850×1580 | 750 |
SHR-300A | 300 | 225 | 40/55 | 475/950 | Electric heating | Pneumatic | 2800×1080×1680 | 1000 |
SHR-500A | 500 | 375 | 47/67 | 500/1000 | Electric heating | Pneumatic | 3060×1150×1880 | 1300 |
SHR-800A | 800 | 500 | 75/90 | 500/1000 | Electric heating | Pneumatic | 3385×1380×2750 | 3500 |
SHR-200C | 200 | 130 | 30/42 | 650/1300 | Self-friction | Pneumatic | 2545×900×1700 | 750 |
SHR-300C | 300 | 200 | 47/67 | 650/1300 | Self-friction | Pneumatic | 2800×1080×1680 | 1000 |
SHR-500A | 500 | 330 | 83/110 | 500/1000 | Self-friction | Pneumatic | 3060×1150×1880 | 1300 |
SHL-100 | 100 | 65 | 5.5 | 200 | Water cooling | Pneumatic | 2200×950×1160 | 250 |
SHL-200 | 200 | 130 | 7.5 | 200 | Water cooling | Pneumatic | 2480×1050×1260 | 300 |
SHL-300 | 300 | 225 | 7.5 | 150 | Water cooling | Pneumatic | 2500×1150×1360 | 400 |
SHL-500 | 500 | 320 | 11 | 130 | Water cooling | Pneumatic | 3135×1310×1460 | 1000 |
SHL-600 | 600 | 380 | 11 | 130 | Water cooling | Pneumatic | 3135×1310×1460 | 1000 |
SHL-800 | 800 | 500 | 15 | 100 | Water cooling | Pneumatic | 3400×1600×1510 | 1200 |
SHL-1000 | 1000 | 640 | 15 | 70 | Water cooling | Pneumatic | 3600×1650×1650 | 1500 |
SHL-1600 | 1600 | 1050 | 18.5 | 50 | Water cooling | Pneumatic | 3380×2560×2000 | 1600 |
SRL-100/200 | 100/200 | 75/130 | 14/22//7.5 | 650/130/180 | Electric Self-friction / Water cooling | Pneumatic | 3780×1870×2250 | 3200 |
SRL-100/300 | 100/300 | 75/200 | 14/22//7.5 | 650/130/180 | Electric Self-friction / Water cooling | Pneumatic | 3780×1950×2300 | 3200 |
SRL-200500 | 200/500 | 150/320 | 30/42//11 | 475/950/130 | Electric Self-friction / Water cooling | Pneumatic | 4580×2240×2470 | 3400 |

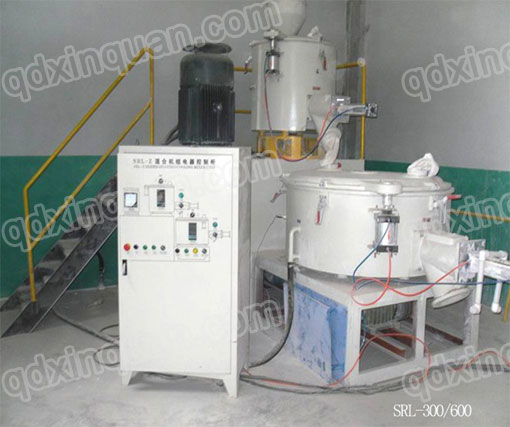

SRL-300/600 | 300/600 | 225/380 | 40/55//11 | 475/950/130 | Electric Self-friction / Water cooling | Pneumatic | 4580×2440×2570 | 4200 |

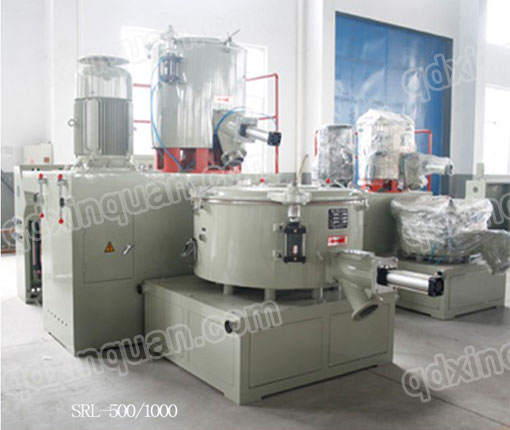

SRL-500/1000 | 500/1000 | 375/640 | 47/67//15 | 430/860/60 | Electric Self-friction / Water cooling | Pneumatic | 4600×3000×4050 | 5800 |
SRL-800/1600 | 800/1600 | 500/1050 | 83/110//18.5 | 370/740/50 | Electric Self-friction / Water cooling | Pneumatic | 4850×3860×6550 | 8700 |
