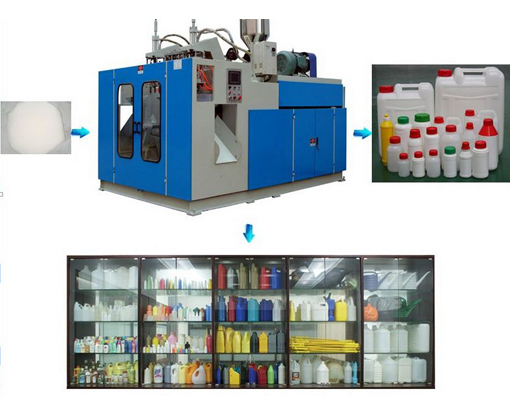

QJB65D Jerry Can blow moulding machine is applied to produce hollow containers of various shapes including chemical barrels, toolbox, pesticide bottles, oil bottles, wide-mouth bottles, automobile parts, household appliance and daily necessaries. It is suitable for many materials, including PP PE etc.
Specification:
Parameter | Unit | QJ50D | QJ65D |
Material | / | PP,PE etc | PP,PE etc |
Max. Product Volume | L | 2 | 5 |
Productive Capacity | Pcs/hr | 1000*2 | 800*2 |
Die Number | set | 1234 | 1234 |
Dimension | mm | 2700*2000*2500 | 3400*2200*2600 |
Weight | Ton | 4 | 6.5 |
Clamping force | KN | 38 | 68 |
platen opening stroke | mm | 130-370 | 150-500 |
platen size | mm | 280*370 | 320*370 |
Max mould size | mm | 350*370/205*600 | 350*370/238*600 |
Mould thickness | mm | 135-210 | 153-300 |
Heating Zone Number | Part | 3-5 | 3-5 |
Die diameter | mm | 75 | 135 |
Center distance of twin-die | mm | 130 | 160 |
Center distance of tri-die | mm | 85 | 110 |
Center distance of four-die | mm | 65 | 85 |
Screw diameter | mm | 55 | 70 |
Screw L/D ratio | L/D | 24:1 | 24:1 |
Extrusion Capacity | Kg/hr | 60-80 | 100-120 |
Power | kw | 15 | 23 |
Voltage | V | 220-380 | 220-380 |
Frequency | HZ | 50-60 | 50-60 |
Note: Due to continual improvement, specifications are subject to change without notification. Please refer to the latest actual machine.
We will even send an engineer to your country to help set up the machine.
PS:Our company specializes in the manufacture of bottle blowing machinesplastic injection molding machinesPET preform and plastic products. Just tell me what plastic product you want to produce and I will help you choose the best model for your needs. We believe that our competitive priceshigh quality and excellent service will bring us both benefits.
Choose us-choose the best!
best!

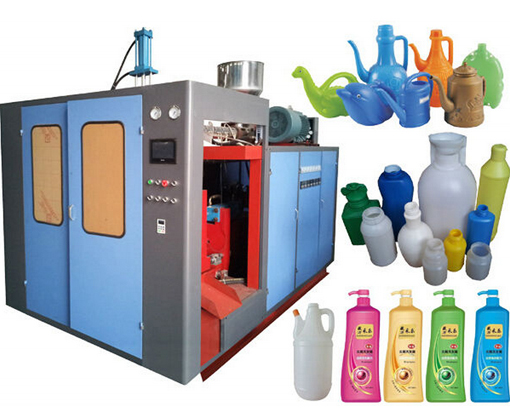

Detailed Images



Finished Products

Packaging & Shipping


Our Services
TRAINNING
The Buyer could dispatch their operators to the Seller’s factory for
training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller’s technician could
train the Buyer’s operators in the Buyer’s factory in the periods
of installing & adjusting; The training is free of charge.
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer
to install and adjust the machines for one week in the Buyer’s factory. The Buyer should make a reservation in advance before delivery of the
machines; The Buyer should pay for the engineer’s visa application
cost, round air tickets, food & board before his departure; And pay
USD 80/day to engineer.
Company Information
Our company specializes in the manufacture of QJ series universal
Hollow auto-blowing machines, QJ Hollow Blow Molding machines, and
the QJ series of plastic mould. The type QJ series adopt famous components. They can work normally under 30kg of pressure, and high
yield in the finished products. The day yield attains 20000-72000bottles,
being applicable to (PET) bottle of mineral water, beverage, oil, medicine and polycarbonate (PC), polypropylene (PP), polyethylene (PE) and other heat-resistant packing products. Our company manufactures various plastic molds for the production of automobile parts, household appliances, and daily necessities.
